Removing E-Brake lines?
Hey guys,
I've looked everywhere for an idea of how to get the E-brake out of this dang thing and I just can't figure it out. I'm trying to remove the cables attached to the bracket but can't seem to figure out how to pop them off that bracket? Any advice?
Thanks,
JJ
I've looked everywhere for an idea of how to get the E-brake out of this dang thing and I just can't figure it out. I'm trying to remove the cables attached to the bracket but can't seem to figure out how to pop them off that bracket? Any advice?
Thanks,
JJ
#6
Member
Join Date: Oct 2011
Location: Colorado
Posts: 142
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 242 I6
Originally Posted by TransAm79
Looking to remove all of them actually.
Thanks Gary.
Thanks Gary.
For the e-brake handle:

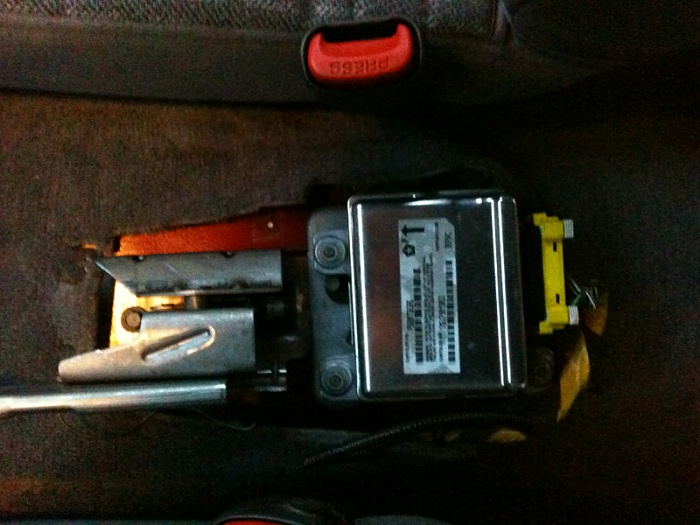

Take the center console apart, it's pretty easy and self explanatory. There are plenty of write-ups on this that you can find. Once this is removed, you will need a 1/2"(I believe) socket to remove everything under the the console.
Once you get the the handle loosened, DO NOT pull on it!

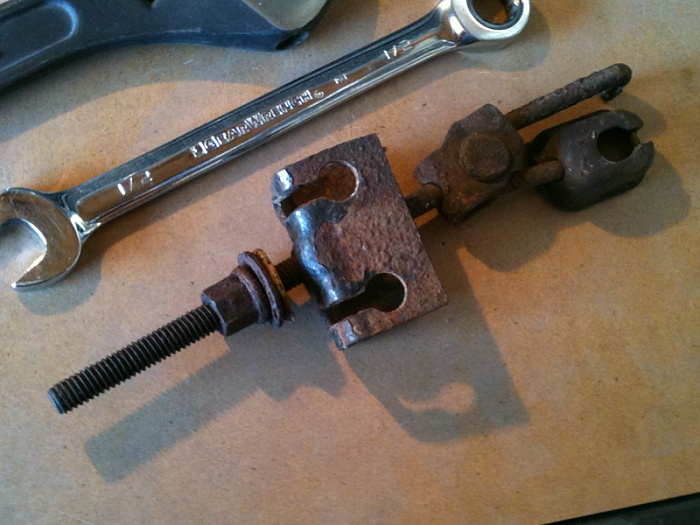

Jump underneath the vehicle and you will need to loosen and remove the e-brake equalizer, which is on the driver side that looks like this:
...more than likely it is seized. Spray it down with some PB Blaster! It's a pain, trust me!!!
You should remove the equalizer first before removing the lines hooked into the box.
While looking in the e-brake box underneath the vehicle you will notice that the line from the e-brake handle drops from the inside of the cab into the front side of this box. You will also notice that on the other end of the box the two rear brake lines tie in as well. These brake lines are locked into the box by 3 tabs on the line. You need to push these tabs in at the same time to pull the cable out of the box. Go ahead and do the rear brake lines as well.
For the rear brakes:
To remove the rear brakes just you have to do the same thing on the other end of the cable with the 3 tabs, but in order to this you need to take apart the rear drums (another write-up that you can find if you haven't done it). Once you have taken the rear drum brakes apart you will see where the other end of that cable is tied in the rears. That's it.
If you have anymore more questions or issues just let me know.
V/r,
-Gray.
Last edited by awsgrayrd; 01-01-2012 at 10:03 PM.
#7
Member
Thread Starter
Join Date: Dec 2011
Location: Statesboro
Posts: 201
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Engine: 4.0L Hi
Thanks Gary. I was having trouble getting the ends out of the equalizer. To loosen that up, I just slide the wrench over the long stud and onto the bolt, and twist that bolt off?
Thanks again for all the help,
JJ
Thanks again for all the help,
JJ
