rear u-joint replacement

Thread Tools

Search this Thread

Old 07-28-2012, 08:03 PM
  #1
Member
Thread Starter

ThatAintStock00's Avatar

Join Date: May 2012
Location: Columbia, SC
Posts: 247
Likes: 0
Received 0 Likes on 0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0L
Default rear u-joint replacement

So I am at the lake, and hear the sound of something dragging as I drove slow around the campground. My brother gets out to check and says it's my rear u-joint at the back of the driveshaft. Makes a grind.

I just towed my boat up here, I'm leaving it, but is it safe to drive down the interstate? I have no way of fixing it here I need to make it home to drop it off at the shop as I am working shifts for the next 4days. I notice no differemce other than the noise
Old 07-28-2012, 08:29 PM
  #2
Member

Beerguyatx's Avatar

Join Date: Jun 2012
Location: Austin, TX
Posts: 151
Likes: 0
Received 0 Likes on 0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
Default

Take out the rear ds and drive it back in front wheel drive (4 hi)
Old 07-28-2012, 09:45 PM
  #3
CF Veteran

EVILXJ's Avatar

Join Date: Mar 2011
Location: South Bend, IN
Posts: 1,273
Likes: 0
Received 0 Likes on 0 Posts
Year: 1995
Model: Cherokee
Engine: 4.6 stroker
Default

i wouldnt take it on the highway, could grenade that u joint
Old 07-28-2012, 09:47 PM
  #4
Member

Beerguyatx's Avatar

Join Date: Jun 2012
Location: Austin, TX
Posts: 151
Likes: 0
Received 0 Likes on 0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
Default

Won't lie there no fun when they break.
Old 07-28-2012, 09:53 PM
  #5
CF Veteran

Atmos's Avatar

Join Date: Nov 2011
Location: City of Trees, CA
Posts: 7,387
Likes: 0
Received 10 Likes on 9 Posts
Year: 93 2 door
Model: Cherokee
Engine: 4.0
Default

another option is have someone bring you a new u-joint, tool kit, and a harbor freight ball joint tool
here's a write up on how to replace it.
http://www.stu-offroad.com/axle/ujoint1/u-joint-1.htm
Old 07-28-2012, 11:13 PM
  #6
Seasoned Member

Muaddib420's Avatar

Join Date: Jun 2012
Posts: 485
Likes: 0
Received 2 Likes on 2 Posts
Model: Cherokee
Default

I wouldn't drive it in its current state. Look and see why it's making the noise. There are four small 8mm bolts holding the drive shaft and U joint to the rear differential. The four bolts hold the U joint using two U shaped straps.

If the sound is coming from the U joint, the U joint itself may be broken or a bolt or strap may have failed.

If you drive it, it may fail completely and all of a sudden, your driveshaft flies off. It's not held in towards the front by anything substantial. You could wreck your tranny which would obviously suck.

If its not very far a drive, I would follow the above posters advice and remove the drive shaft and drive it back in front wheel drive. All you need is an 8mm extended socket ratchet. It can be pretty rusted up so some PB blaster or liquid wrench may help. Some love taps with a hammer too.
Old 07-29-2012, 08:13 AM
  #7
Member

Beerguyatx's Avatar

Join Date: Jun 2012
Location: Austin, TX
Posts: 151
Likes: 0
Received 0 Likes on 0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
Default

Did you get it taken care of?
Old 07-29-2012, 01:06 PM
  #8
Junior Member

jrh97007's Avatar

Join Date: Jul 2010
Location: Beaverton
Posts: 68
Likes: 0
Received 0 Likes on 0 Posts
Year: 1988
Model: Cherokee
Engine: 4.0
Default

Not knowing much about Jeeps at all I had my rear drive shaft break on a freeway at 55mph! No fun. No fun at all. I drove it home in Front wheel drive.
Old 07-30-2012, 09:18 AM
  #9
Member
Thread Starter

ThatAintStock00's Avatar

Join Date: May 2012
Location: Columbia, SC
Posts: 247
Likes: 0
Received 0 Likes on 0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0L
Default

I dropped the rear shaft and drove home in FWD on the back roads. What a ride. Wow.

I should drop it off at the shop today. I have the ujoints just no the time to fix them. Story of life huh?
Old 07-30-2012, 09:38 AM
  #10
Junior Member

1990 XJ-Texas Edition's Avatar

Join Date: Oct 2011
Location: Corpus Christi, TX
Posts: 74
Likes: 0
Received 0 Likes on 0 Posts
Year: 1990
Model: Cherokee
Engine: L6 242cid FI I-6
Default

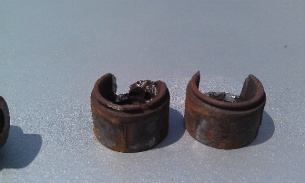

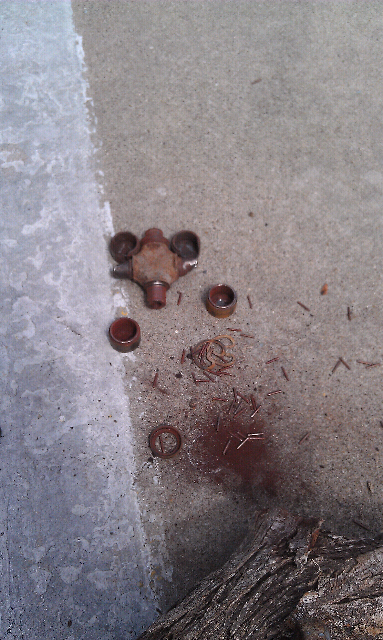

I think you're kinda lucky, about 6 months ago I replaced both u-joints on the rear shaft (its better if you do both at the same time). The caps on one side had been chewed through and the straps were toast, and I had been driving it like that for about a year or so luckily when I moved I put it on a trailer.
Attached Thumbnails rear u-joint replacement-forumrunner_20120730_093744.jpg   rear u-joint replacement-forumrunner_20120730_093810.jpg
Old 07-30-2012, 09:52 AM
  #11
Member
Thread Starter

ThatAintStock00's Avatar

Join Date: May 2012
Location: Columbia, SC
Posts: 247
Likes: 0
Received 0 Likes on 0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0L
Default


Whoa.

Yeah doing both at the same time. I'm glad it didn't grenade while in was towing the boat up. Really shocked me how dry it was and the bearings were really worn but not like that!
