rear spring sag
#1
Newbie
Thread Starter
Join Date: Jan 2012
Posts: 20
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
rear spring sag
I have some rear spring sag, the same that I see on other XJ's running around here. The problem is that I tow a small boat plus load up camping gear and things can get real low. Dont want to change out the springs at the moment but could use some suggestions and how to help them along for the near term.
Something like air shocks or bolt on air suspension? Helper springs?
Larry S.
Something like air shocks or bolt on air suspension? Helper springs?
Larry S.
#2
Senior Member
Join Date: Jan 2011
Location: Joliet, Il
Posts: 730
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1996
Model: Cherokee
Engine: HO4.0 I6
I imagine you could just throw on a helper spring, which would help for a while until that one wears out, and it will do so quick because the entire load will be on that one leaf. But I'm sure everyone and their brother on here is going to tell you to throw some new leafs in, and maybe some new shocks. If you tow that boat often I'd consider going with some heavy duty leafs.
#3
Senior Member
Join Date: May 2011
Location: Flagstaff, Arizona
Posts: 609
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L I6
I had some gangsta sag for a long time, no towing of anything except a few friends and their stuff after school and what not. It progressively got worse and I had to put new leafs in. With your needs, heavy duty leafs with an inch or so of lift might be a good idea. I have stock suspension right now and the rancho leafs from quadratec did great. Also, if you plan on lifting your Jeep in the future, id do the lift now instead of buying leafs now then a lift later.
#4
Newbie
Join Date: Apr 2012
Location: Oklahoma City
Posts: 2
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0
#5
Member
Join Date: Apr 2012
Location: ri
Posts: 212
Likes: 0
Received 1 Like
on
1 Post
Year: 1996
Model: Cherokee
Engine: 4.0 HO
I tow a boat with mine as well and it's loaded up with tools when it isn't towing.
I've researched the snot out of the subject and it looks like the only real repair is to replace the springs. Anything else is going to give you handling issues, especially under load.
Somebody sent me this link:
http://www.jeepforum.com/forum/f11/j...-codes-644388/
It explains your options on leafs.
You should probably replace the bushings on the rear sway bar at the same time.
It's like the guy at the marina says:
"Boats is like women, you want to get them wet, it's going to cost you money."
I've researched the snot out of the subject and it looks like the only real repair is to replace the springs. Anything else is going to give you handling issues, especially under load.
Somebody sent me this link:
http://www.jeepforum.com/forum/f11/j...-codes-644388/
It explains your options on leafs.
You should probably replace the bushings on the rear sway bar at the same time.
It's like the guy at the marina says:
"Boats is like women, you want to get them wet, it's going to cost you money."
#6
Junior Member
Join Date: Feb 2011
Location: illinois
Posts: 69
Likes: 0
Received 1 Like
on
1 Post
Year: 01
Model: Cherokee
Engine: 4.0
I tow a boat with mine too and decided to put on Air Lifts that look like these. Only problem with them is I have to add air every month because their push on connectors leak. Did not find a listing on their site,I have had mine for 2 yrs now. I you want I might be able to find the paper work to find the part number.
Trending Topics
#10
Junior Member
Join Date: Feb 2011
Location: illinois
Posts: 69
Likes: 0
Received 1 Like
on
1 Post
Year: 01
Model: Cherokee
Engine: 4.0
No but they are a compromise, you spring it to carry say 300 lbs and you add more weight your sagging again,I just have to add more air. Take out the load loose some air. You have to check your tires anyway whats 2 more valves? Cost me about 200 and rated to 2000 lbs
Last edited by gary s; 05-20-2012 at 10:18 PM.
#11
CF Veteran
Join Date: Aug 2009
Location: Oshkosh, WI.
Posts: 4,118
Likes: 0
Received 6 Likes
on
6 Posts
Year: 1991
Model: Cherokee
Engine: 4.0
#12
Junior Member
Join Date: Feb 2011
Location: illinois
Posts: 69
Likes: 0
Received 1 Like
on
1 Post
Year: 01
Model: Cherokee
Engine: 4.0

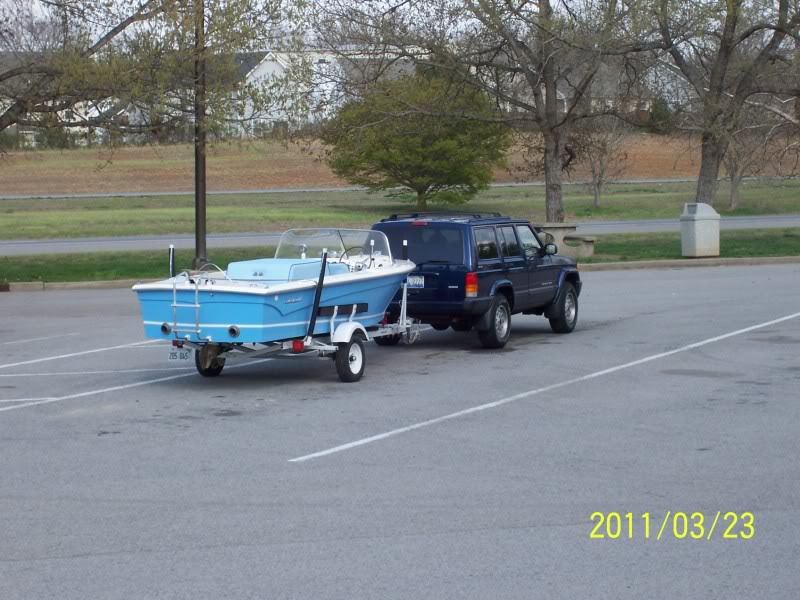

When I bought my Jeep I ordered the up country package rather than the towing package. While my boat weighs about 2000, it's the extra stuff you carry that gets you. So mine still sagged. Here is a picture of a 2 week 3000 mile trip,fully loaded and my wife brings alot of stuff!
