Rear Diff Verification
Hi all,

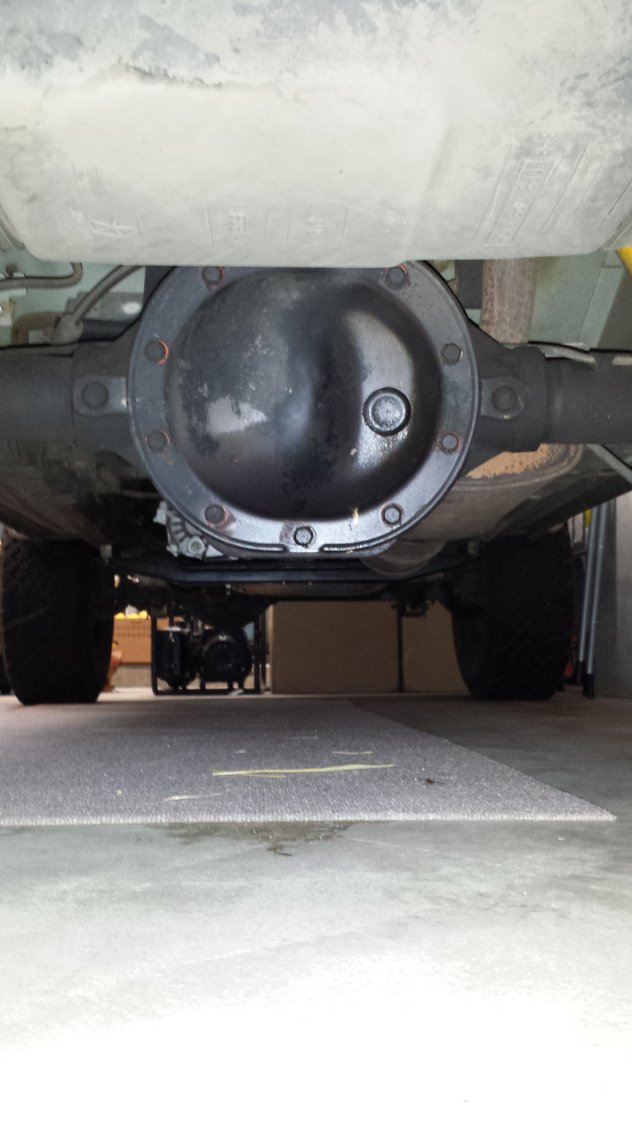

I'm struggling a little bit with identifying my rear diff. I have a 2000 XJ Sport. I think I either have a D35 or Chry 8.25. The diff identification images I've researched seem to show the D35 and 8.25 look very similar; the bolt pattern being the same. The only thing I see indicating a 8.25 is a small flat extension of the gear housing hanging below the diff cover. If you would look at my image and respond with your expert advise I would appreciate it very much.
I'm struggling a little bit with identifying my rear diff. I have a 2000 XJ Sport. I think I either have a D35 or Chry 8.25. The diff identification images I've researched seem to show the D35 and 8.25 look very similar; the bolt pattern being the same. The only thing I see indicating a 8.25 is a small flat extension of the gear housing hanging below the diff cover. If you would look at my image and respond with your expert advise I would appreciate it very much.
#4
#5
Newbie
Thread Starter
Join Date: Jan 2015
Posts: 24
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Sweet, that's what I was hoping. So now I have to decide on whether to rebuild and add a locker, or pony up for a G2 Dana 60, Currie, etc. Think I'm going to run 33s on 15x10. Don't think I'm going to 35s. But educating as I go... First Jeep I've owned.
Thanks guys
Thanks guys
#6
Junior Member
Join Date: Jul 2014
Location: Auburn, Washington
Posts: 39
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0
also just so that you know they put the 8.25 in unless you have abs then it is the 35 because the 8.25 doesnt come with abs
Trending Topics
#9
Senior Member
Join Date: May 2012
Location: Rockford, IL
Posts: 888
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
your stock axles are plenty strong for 33s. spend that money beefing up what you have
#10
Newbie
Thread Starter
Join Date: Jan 2015
Posts: 24
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
If I could trouble you for one more identification... I started a thread on the Modified section and received a number of comments/suggestions regarding my fron t and rear diffs. I originally planned to swap my D30 for a D44. But what I didn't realize was that there's a LP30 and HP30. Some have suggested that I look for a HP30. So I thought it wise to be sure of what I have. I've googled but can't seem to get any hits on a diff in bolt pattern or cover. So here's a pick.
Thank you
Thank you
#11
CF Veteran
Best way to know if it's an LP or HP is by the the rear yoke, if it is on top of the pumpkin then it's an HP, if it's at the bottom..LP. An 8.25 and HP30 can handle 35s, so 33s will be nothing for those axles.
#12
Senior Member
Join Date: May 2014
Location: Colorado
Posts: 672
Likes: 0
Received 4 Likes
on
4 Posts
Year: 2001, 1997
Model: Cherokee
Engine: 4.0L
You need to take a picture of the back where the yoke is to be sure. Based on the angle of the photo, I'd guess you have a HP 30 but another picture would help.
HP = pinion on the top of the carrier
LP = pinion on the bottom of the carrier
HP = pinion on the top of the carrier
LP = pinion on the bottom of the carrier
#15
Newbie
Thread Starter
Join Date: Jan 2015
Posts: 24
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Based on the previous posts, that's kinda I thought.
So if I stick to 33's it would not be a poor choice to go through the LP30? I'm doing a TeraFlex 5.5 Inch Extreme-Duty Long Arm Lift Kit and figure now's the time to swap the front diff if I'm going to. The rear is always doable later without a big hassle and added costs.
So if I stick to 33's it would not be a poor choice to go through the LP30? I'm doing a TeraFlex 5.5 Inch Extreme-Duty Long Arm Lift Kit and figure now's the time to swap the front diff if I'm going to. The rear is always doable later without a big hassle and added costs.
