Rear brake drums hanging
I just replaced both my rear brake cylinders and put new shoes on my star adjuster is all the way in and my brake are rubbing/hanging to the point I can't drive without them putting a good load on my jeep and smoking. Also checked the part number for them and there the right size. Anyone have any ideas why this is happening. Even after bleeding them a good bit there not working for crap just hanging like there to big. They match the size of the old ones just more shoes material. I'm at a loss on this one. Any help is appreciated thanks
#3
Senior Member
Join Date: Mar 2014
Location: Eastern Long Island, NY
Posts: 952
Received 55 Likes
on
50 Posts
Year: 1996
Model: Cherokee
Engine: I6 Cyl / 4L
2 things to double check - Correct part number for shoes and cylinders. And make sure you put the brake shoes facing the correct way (one side is different than the other).
Also make sure the hardware is on correctly and that the parking brake and center bar are not pushing out the shoes.
Did you happen to take pictures prior to disassembly?
Also, what year and model Jeep is it?
Also make sure the hardware is on correctly and that the parking brake and center bar are not pushing out the shoes.
Did you happen to take pictures prior to disassembly?
Also, what year and model Jeep is it?
#4
Newbie
Thread Starter
Join Date: May 2017
Posts: 3
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
2 things to double check - Correct part number for shoes and cylinders. And make sure you put the brake shoes facing the correct way (one side is different than the other).
Also make sure the hardware is on correctly and that the parking brake and center bar are not pushing out the shoes.
Did you happen to take pictures prior to disassembly?
Also, what year and model Jeep is it?
Also make sure the hardware is on correctly and that the parking brake and center bar are not pushing out the shoes.
Did you happen to take pictures prior to disassembly?
Also, what year and model Jeep is it?
yes yes I took pictures. Did check the parking brake it's in the right location. Part number is correct for size double checked to make sure. 01 xj sport Chrysler 8.25 rear if that makes a difference or not
#7
Newbie
Thread Starter
Join Date: May 2017
Posts: 3
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee

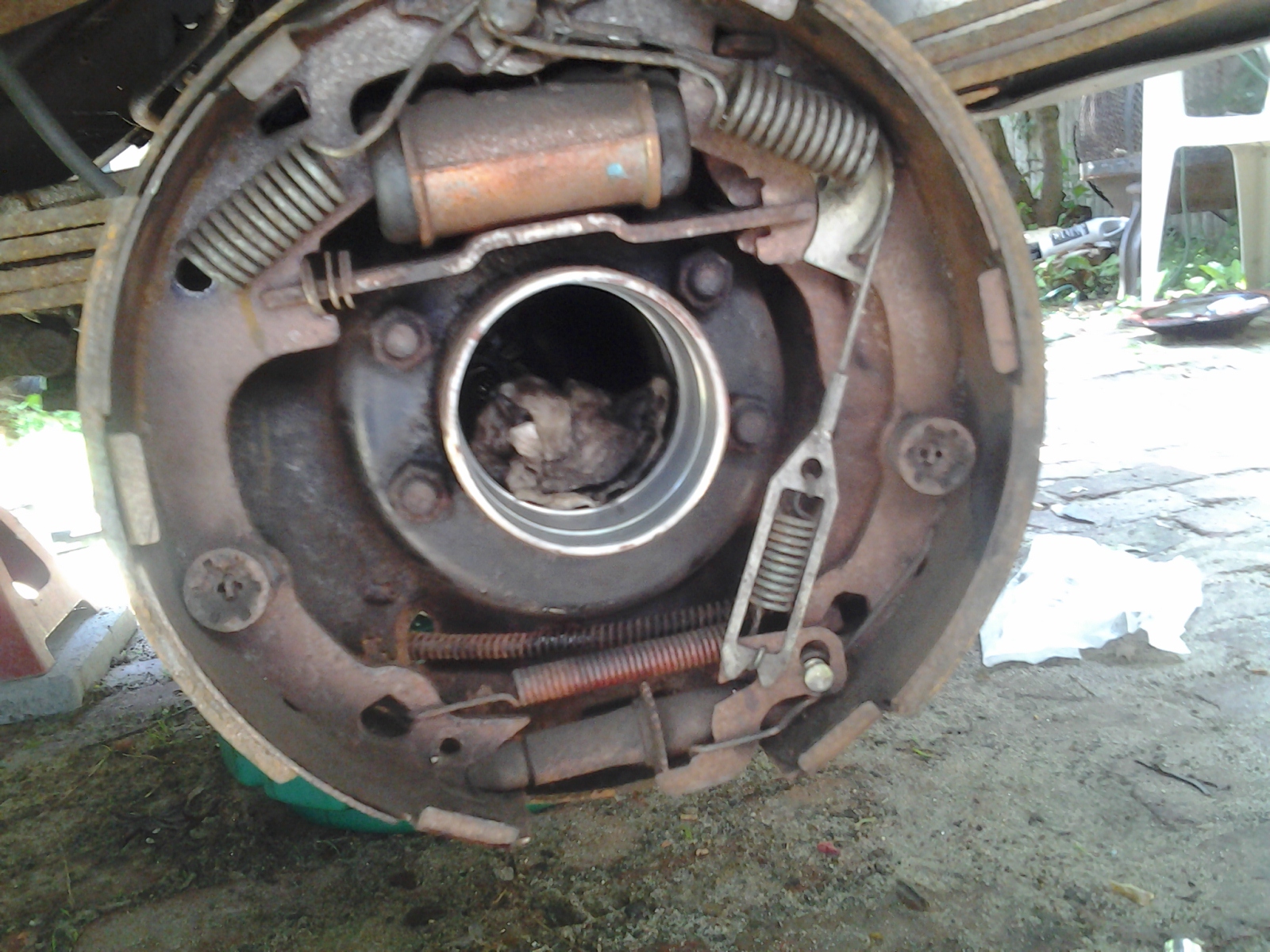

Attachment 300898
And you are sure the star pin is closed all the way and not open all the way instead?
And you are sure the star pin is closed all the way and not open all the way instead?
yes its closed all the way. Took drums off and double checked then
Trending Topics
#8
Senior Member
Join Date: Mar 2014
Location: Eastern Long Island, NY
Posts: 952
Received 55 Likes
on
50 Posts
Year: 1996
Model: Cherokee
Engine: I6 Cyl / 4L
So when you take off the drums, are they tight going on and off? If you have the right parts, and all the hardware is sitting correctly, the drum should easily slide on. Then you put on the wheel and adjust the star nut to get resistance/drag from the brake shoes. If your shoes are that tight, I don't see how you got the drum back on unless you hammered it into place (which you shouldn't do).
#9
Banned
Join Date: Oct 2016
Posts: 1,553
Likes: 0
Received 4 Likes
on
4 Posts
Year: 2000 and 1998
Model: Cherokee
Engine: 4.0
Attachment 300898
And you are sure the star pin is closed all the way and not open all the way instead?
And you are sure the star pin is closed all the way and not open all the way instead?
