Default real main seal issue please help




I removed those 2 bolts but its stuck on there. is there something else i need to unbolt after taking my pan off to change the seal?

I searched around and no one seems to be having this issue
Reply
Old Jan 9, 2016 | 09:21 PM
  #2
51 ashton's Avatar
Junior Member

Joined: Dec 2015
Posts: 31
Likes: 0
From: Kempton, pa
Default

You removed which two bolts?

Last edited by 51 ashton; Jan 9, 2016 at 09:24 PM.
Reply
Old Jan 9, 2016 | 11:10 PM
  #3
freegdr's Avatar
CF Veteran

Joined: Mar 2010
Posts: 47,923
Likes: 38
From: Broward County Fl.
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
Default

Turn crank and push upper out with small flat blade screw driver at same time .
Reply
Old Jan 9, 2016 | 11:13 PM
  #4
Sandyman's Avatar
Member

Joined: Jul 2015
Posts: 232
Likes: 0
From: Sugar Land, TEXAS
Year: 2001
Model: Cherokee
Engine: 4.0 165,00 Miles
Default

The bearing cap is held in place with dowels. To remove the cap, unscrew the main bearing cap bolts and pull them clear of the block but leave them in the bearing cap. Pinch the two bolts together and rock in the "east-west" direction while pulling down. It'll break free after a few seconds of this.

Or, gentle tapping and I have heard some say you can loosen a few more of them down the line which they say helps sometimes.
Reply
Old Jan 10, 2016 | 12:28 AM
  #5
akxj907's Avatar
Thread Starter
Newbie

Joined: Sep 2015
Posts: 24
Likes: 0
From: alaska
Year: 1990
Model: Cherokee
Engine: 4.0
Default

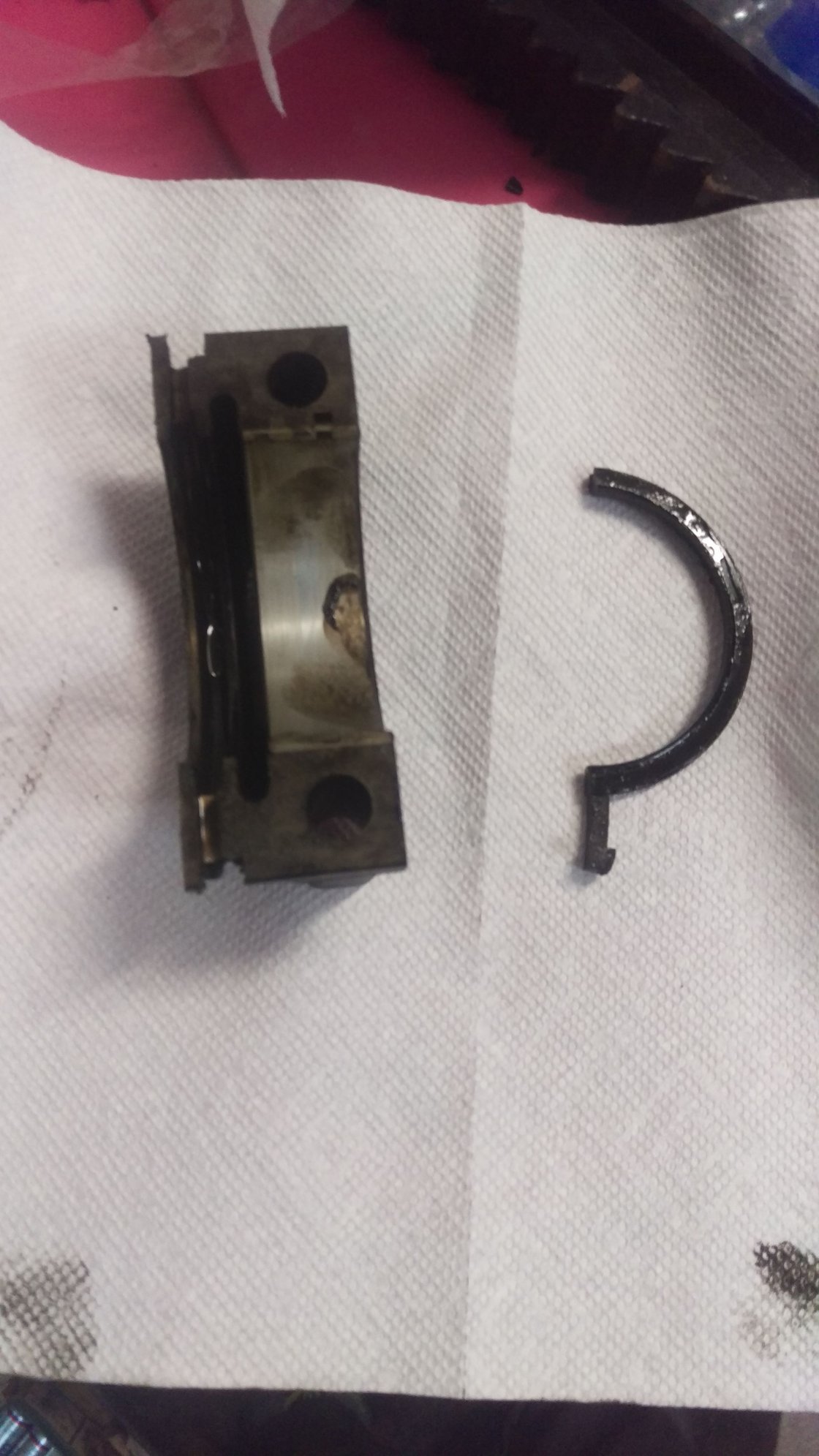

The two bolts in the photo believe they were 21mm the bottom half of the seal wont pop out the last person must have used a lot of rtv or something
Reply
Old Jan 10, 2016 | 12:29 AM
  #6
akxj907's Avatar
Thread Starter
Newbie

Joined: Sep 2015
Posts: 24
Likes: 0
From: alaska
Year: 1990
Model: Cherokee
Engine: 4.0
Default

Ill try loosening more bolts and trying that east to west aswell, thanks for some tips guys
Reply
Old Jan 10, 2016 | 01:17 AM
  #7
freegdr's Avatar
CF Veteran

Joined: Mar 2010
Posts: 47,923
Likes: 38
From: Broward County Fl.
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
Default

Reply
Old Jan 10, 2016 | 01:28 AM
  #8
akxj907's Avatar
Thread Starter
Newbie

Joined: Sep 2015
Posts: 24
Likes: 0
From: alaska
Year: 1990
Model: Cherokee
Engine: 4.0
Default

I was watching that video and the one by bleepnjeep while i was doing it, mine is a little different i didnt see a gurtle i had to remove just popped the pan and unbolted the rear cap
Reply
Old Jan 10, 2016 | 01:33 AM
  #9
akxj907's Avatar
Thread Starter
Newbie

Joined: Sep 2015
Posts: 24
Likes: 0
From: alaska
Year: 1990
Model: Cherokee
Engine: 4.0
Default



Its a bad pic but i dont see a long gurtle i need to remove, so i just kept goin thinkin maybe now i missed something thats why it wont come off, my oil pan took 2 pry bars to get off it was super crusted on there
Reply
Old Jan 10, 2016 | 08:59 PM
  #10
Sandyman's Avatar
Member

Joined: Jul 2015
Posts: 232
Likes: 0
From: Sugar Land, TEXAS
Year: 2001
Model: Cherokee
Engine: 4.0 165,00 Miles
Default

I believe only the 99-2001 had the girdle. There is no girdle in your picture. Was there a lot of sludge in the pan? If so you are going to have to work that bearing off. Put a small block of wood on it and tap harder or a nylon hammer. Maybe a brass punch to lightly work around it. It WILL come off. HEAT might help if nothing else does.

Last edited by Sandyman; Jan 10, 2016 at 09:07 PM.
Reply
Old Jan 10, 2016 | 11:49 PM
  #11
akxj907's Avatar
Thread Starter
Newbie

Joined: Sep 2015
Posts: 24
Likes: 0
From: alaska
Year: 1990
Model: Cherokee
Engine: 4.0
Default

Ok i didnt know.. all the videos i watched i seen a girdle so i was just a lil thrown off and yeah there was some crusty stuff by my drain hole after i got my pan off, ill be switching to mobile 1 synthetic after this
Reply
Old Jan 11, 2016 | 12:30 AM
  #12
akxj907's Avatar
Thread Starter
Newbie

Joined: Sep 2015
Posts: 24
Likes: 0
From: alaska
Year: 1990
Model: Cherokee
Engine: 4.0
Default




Super huge thanks guys, i took another cap off and it wiggled out!
Reply
Old Jan 11, 2016 | 01:53 AM
  #13
akxj907's Avatar
Thread Starter
Newbie

Joined: Sep 2015
Posts: 24
Likes: 0
From: alaska
Year: 1990
Model: Cherokee
Engine: 4.0
Default

Dont know whats goin on, maybe my jeep just hates me, but ive taken 3 caps off and the upper seal just wont come out. Ive been bangin on it with a punch for an hour any tips?
Reply
Old Jan 11, 2016 | 04:02 AM
  #14
akxj907's Avatar
Thread Starter
Newbie

Joined: Sep 2015
Posts: 24
Likes: 0
From: alaska
Year: 1990
Model: Cherokee
Engine: 4.0
Default

Got it !
Reply
Old Jan 11, 2016 | 05:03 AM
  #15
XJwonders's Avatar
CF Veteran
Premium Member

Joined: Jan 2013
Posts: 19,219
Likes: 45
From: west chester, pa
Year: 1999
Engine: 4.0
Default

Originally Posted by akxj907
Got it !
well thank you for reporting back of your success, but what exactly did u do? So other people can read this and do the same in the future.
