Quick Question
06-01-2013, 10:16 PM
#1
CF Veteran
Thread Starter
Join Date: May 2012
Location: Wilmington,NC
Posts: 3,004
Likes: 0
Received 1 Like
on
1 Post
Year: 1989
Model: Cherokee
Engine: 4.0
Quick Question
Im about to put a cai on my jeep. Whats the best way to eliminate the vacuum hose that goes to my stock air box so I dont have a vacuum leak? I have the renix 4.0
06-01-2013, 10:26 PM
#2
CF Veteran
Join Date: Nov 2011
Location: Northern MN
Posts: 2,433
Likes: 0
Received 6 Likes
on
5 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: Renix 4.0
If it's the one that goes to the valve on the front of the air box don't worry about it, you won't have any issues. The other small line I can't remember off hand. The big one goes to the charcoal canister, the kit will have a way for that to attach.
06-01-2013, 10:45 PM
#3
CF Veteran
Thread Starter
Join Date: May 2012
Location: Wilmington,NC
Posts: 3,004
Likes: 0
Received 1 Like
on
1 Post
Year: 1989
Model: Cherokee
Engine: 4.0
So having it just laying there wont affect my Idle any and its a cai my buddy gave me but it does have a port on it I assume is for that. Also gonna relocate the IAT. What should I use to plug the hole where the IAT was? Maybe another IAT from the scrap yard would work.
06-01-2013, 11:40 PM
#5
CF Veteran
Join Date: Aug 2011
Location: Nor-Cal Coast
Posts: 10,489
Likes: 0
Received 17 Likes
on
17 Posts
Year: 90,84
Model: Cherokee
Engine: 4.0,2.5
I'm sure it's a common thread, may well be a pipe thread that will take a plug from a hardware store. I suppose I'd just go in with the IAT to match the thread.
You can pick up a cittle cap at an auto parts store for where the little vacuum line (off that "block"), came iff that goes to the thermal switch for the heated air intake on your air box.
I hope the kit has something to rout the front CCV tube to it. Might be one of those little filters will clog up inside where you can't see it, then it will look like your rear main is shot when the crankcase pressure goes up.
You can pick up a cittle cap at an auto parts store for where the little vacuum line (off that "block"), came iff that goes to the thermal switch for the heated air intake on your air box.
I hope the kit has something to rout the front CCV tube to it. Might be one of those little filters will clog up inside where you can't see it, then it will look like your rear main is shot when the crankcase pressure goes up.
06-02-2013, 12:06 AM
#6
CF Veteran
Thread Starter
Join Date: May 2012
Location: Wilmington,NC
Posts: 3,004
Likes: 0
Received 1 Like
on
1 Post
Year: 1989
Model: Cherokee
Engine: 4.0
I'm sure it's a common thread, may well be a pipe thread that will take a plug from a hardware store. I suppose I'd just go in with the IAT to match the thread.
You can pick up a cittle cap at an auto parts store for where the little vacuum line (off that "block"), came iff that goes to the thermal switch for the heated air intake on your air box.
I hope the kit has something to rout the front CCV tube to it. Might be one of those little filters will clog up inside where you can't see it, then it will look like your rear main is shot when the crankcase pressure goes up.
You can pick up a cittle cap at an auto parts store for where the little vacuum line (off that "block"), came iff that goes to the thermal switch for the heated air intake on your air box.
I hope the kit has something to rout the front CCV tube to it. Might be one of those little filters will clog up inside where you can't see it, then it will look like your rear main is shot when the crankcase pressure goes up.
Trending Topics
06-02-2013, 08:47 AM
#9
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,875
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
I don't like the idea of eliminating that tube from the front of the valve cover. It can affect idle and also is instrumental in removing moisture from the crankcase.
06-02-2013, 06:52 PM
#11
CF Veteran
Thread Starter
Join Date: May 2012
Location: Wilmington,NC
Posts: 3,004
Likes: 0
Received 1 Like
on
1 Post
Year: 1989
Model: Cherokee
Engine: 4.0

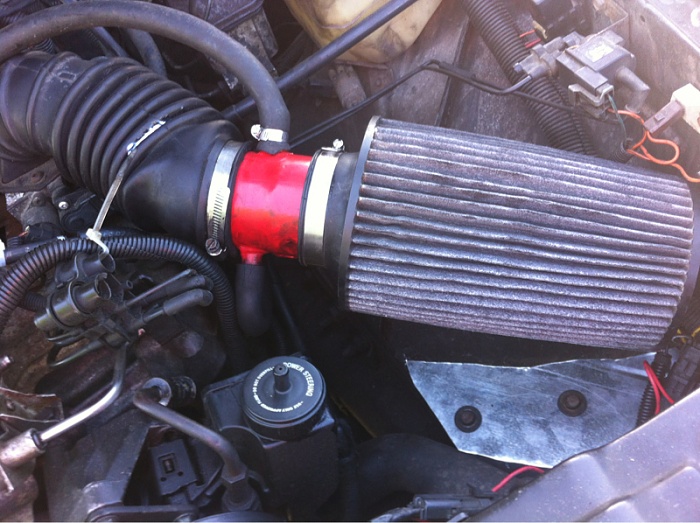

Got it installed today just gotta move the IAT when I get the time

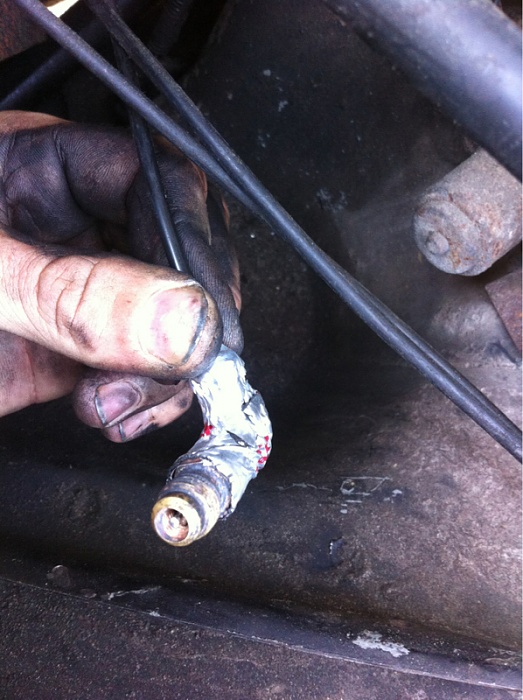

My redneck fix for plugging the vac line. Used a service port off of a Trane A/C unit and put a new scrader valve in it. Works like a charm
My redneck fix for plugging the vac line. Used a service port off of a Trane A/C unit and put a new scrader valve in it. Works like a charm
06-02-2013, 08:47 PM
#12
CF Veteran
Join Date: Aug 2011
Location: Nor-Cal Coast
Posts: 10,489
Likes: 0
Received 17 Likes
on
17 Posts
Year: 90,84
Model: Cherokee
Engine: 4.0,2.5
Now it's gettn confusing. The tiny little tube that went the the thermal switch on your old air box, just needs capped off. (same tubing as on the EGR solonoid).
It looks like it has a deal to accept the front CCV vent. (Important), as well as the canister vent. THEN, from that other deal vac. is provided for the CCV valve on the REAR of the valve cover. You want that. Far from "harmless", Positive Crankcase Ventilation is a very good thing. Also it's designed for that little 2.6mm? "vac leak" at the CCV orifice.
Also you need vacuum to the FPR. Looks good! So a 1/4 in. pipe thread plug will plug the old IAT hole...good to know.
It looks like it has a deal to accept the front CCV vent. (Important), as well as the canister vent. THEN, from that other deal vac. is provided for the CCV valve on the REAR of the valve cover. You want that. Far from "harmless", Positive Crankcase Ventilation is a very good thing. Also it's designed for that little 2.6mm? "vac leak" at the CCV orifice.
Also you need vacuum to the FPR. Looks good! So a 1/4 in. pipe thread plug will plug the old IAT hole...good to know.
06-02-2013, 08:54 PM
#13
CF Veteran
Thread Starter
Join Date: May 2012
Location: Wilmington,NC
Posts: 3,004
Likes: 0
Received 1 Like
on
1 Post
Year: 1989
Model: Cherokee
Engine: 4.0
Now it's gettn confusing. The tiny little tube that went the the thermal switch on your old air box, just needs capped off. (same tubing as on the EGR solonoid).
It looks like it has a deal to accept the front CCV vent. (Important), as well as the canister vent. THEN, from that other deal vac. is provided for the CCV valve on the REAR of the valve cover. You want that. Far from "harmless", Positive Crankcase Ventilation is a very good thing. Also it's designed for that little 2.6mm? "vac leak" at the CCV orifice.
Also you need vacuum to the FPR. Looks good! So a 1/4 in. pipe thread plug will plug the old IAT hole...good to know.
It looks like it has a deal to accept the front CCV vent. (Important), as well as the canister vent. THEN, from that other deal vac. is provided for the CCV valve on the REAR of the valve cover. You want that. Far from "harmless", Positive Crankcase Ventilation is a very good thing. Also it's designed for that little 2.6mm? "vac leak" at the CCV orifice.
Also you need vacuum to the FPR. Looks good! So a 1/4 in. pipe thread plug will plug the old IAT hole...good to know.
06-02-2013, 09:55 PM
#14
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,875
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
06-02-2013, 10:16 PM
#15
CF Veteran
Join Date: Aug 2011
Location: Nor-Cal Coast
Posts: 10,489
Likes: 0
Received 17 Likes
on
17 Posts
Year: 90,84
Model: Cherokee
Engine: 4.0,2.5
HaHa! I want to make sure you have vac to the Rear CCV and the FPR, have capped the tube that went to the thermal switch in the old air-box, and that the front vent on the VC is free to vent. Stuff that I figure matters.....
