quick pulley question...with pics

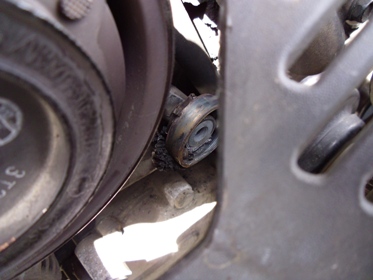

Drivin the heep around today I noticed it making a worse squeak/noise than usual. While looking at it I noticed the pulley to the right of the ac compressor looked loose. My question is is this something I can tighten back up or do I need to replace it? Any help is greatly appreciated
09-28-2011, 07:43 PM
#2
Seasoned Member
Join Date: Oct 2010
Location: Jersey
Posts: 379
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1994
Model: Cherokee
Engine: 4.0
thats your idler pulley. they are less then $20 at the parts store. Just get a new one. The bearings go out often,chineese junk. Easy to replace, crack the nut loose (15mm) then loosen the belt
09-28-2011, 08:25 PM
#3
CF Veteran
Join Date: Aug 2011
Location: Nor-Cal Coast
Posts: 10,489
Likes: 0
Received 17 Likes
on
17 Posts
Year: 90,84
Model: Cherokee
Engine: 4.0,2.5
You could check the bolt. Being that there is only one and it's right there. Probably the bearing though. On my 90 half the job would be simply loosening the belt. Looks like changing the pulley is a snap. BTW, left and right are facing front. Happy trails.
09-29-2011, 03:25 PM
#4
Seasoned Member
Thread Starter
Join Date: Jan 2011
Posts: 344
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Ok thanks for the replies guys. Got to work on it today but the lower bolt that actually adjusts the tension is being a pita and I can't seem to get it loose without breaking it >
Trending Topics
09-29-2011, 08:01 PM
#10
Newbie
Join Date: Sep 2011
Posts: 2
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
I had this same problem a few months ago. the pully locked up and the bearing/belt burst into flames. it was a thirty minute fix,$12 idler pully $30 belt. i took a few pictures if it will help anyone let me know and ill post them
