Is this a problem?
#3
I WIN!
Join Date: Sep 2011
Location: Sunny CALIFORNIA :-p
Posts: 10,898
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1997
Model: Grand Cherokee
Engine: BIG! HUGE!
I remember my 95 grand had a broken one of these for the tranny off the carb thingy, and man it shifted funky! So if ya like the way ot shifts I would think ot would be a problem lol. Hook it back up or its gonna cost ya in the long run....
#5
Member
Thread Starter
Join Date: Oct 2010
Location: NJ / Tuscaloosa
Posts: 147
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: N/A
It's a kickdown right? How do I fix that I don't see an easy way.... Hmm contact cement? Or does the end of the cable pop off so you could put a new clip on.
#7
Seasoned Member
Join Date: Apr 2011
Location: GSO NC
Posts: 328
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Engine: 4.0L HO

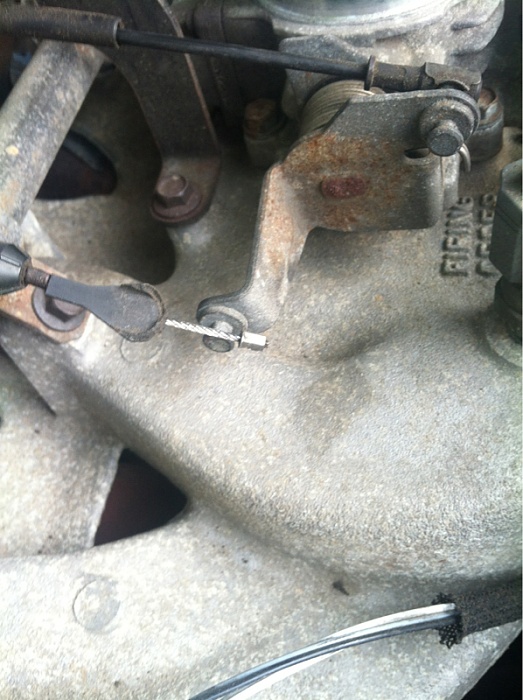

the cable end looks fubared, I think we are looking at the end that should be facing the TB, and all the plastic that "clips" on the TB lever is gone. Someone must have pried the cable off like the ball/socekt style, instead of sliding it towards the drivers side...
Trending Topics
#8
Member
Thread Starter
Join Date: Oct 2010
Location: NJ / Tuscaloosa
Posts: 147
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: N/A
And I was thinking of going to town with some marine-tex and some vaseline on the linkage so the cable could still pivot on there. Ive gotten pretty crafty with marine-tex on the boat it think it would work. Because if I tried to put a new clip on the cable, the cable would be short from cutting the crimp off.
However, how hard is it to put a whole new cable in?
#9
Seasoned Member
Join Date: Apr 2011
Location: GSO NC
Posts: 328
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Engine: 4.0L HO
how hard is it to replace? hmmm, thats relative. I've never bothered to look closely at it with the oil pan off, but to loosen the other end, I you might have to drop that. It goes into the tranny on the drivers side, "top" of the oil sump area.
#10
Senior Member
Join Date: Jul 2012
Location: middleburg fl
Posts: 860
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
wonder if you could drill thru the plastic and the metal tab and put a machine thread screw in there? that way it could still pivot. although since youd have to drill off center i dunno. guess it depends how robust that plastic is.
other ideas?? perhaps you could find something that fits over that tit and glue it to the remaning plastic guess it depends how hard the cable is to operate
other ideas?? perhaps you could find something that fits over that tit and glue it to the remaning plastic guess it depends how hard the cable is to operate
Last edited by kennzz05; 07-02-2012 at 10:40 PM.
#11
CF Veteran
Join Date: Apr 2012
Location: Wisconsin
Posts: 5,302
Likes: 0
Received 19 Likes
on
16 Posts
Model: Cherokee
Press button, see that the cable fully retracts into housing, rotate throttle fully open to pull the cable back out into adjustment, release button.
Or as above- a small hole through the whole assembly with a small screw, bolt and a couple washers. Has to be able to pivot or the cable pull will be exaggerated when you step on the throttle.
#12
CF Veteran
Join Date: Sep 2009
Location: ☼ Blackhole Sun
Posts: 8,567
Likes: 0
Received 18 Likes
on
16 Posts
Year: My Jeep is a GMC
Two possibilities:
1) A new cable from either the dealer or boneyard.
2) You can try to fashion a new cable end does not have to be fancy. Just form a piece of heavy wire to catch the crimp on one end, and a hook on the other to ride on the throttle valve shaft.
(A proper size fish hook would work.)
1) A new cable from either the dealer or boneyard.
2) You can try to fashion a new cable end does not have to be fancy. Just form a piece of heavy wire to catch the crimp on one end, and a hook on the other to ride on the throttle valve shaft.
(A proper size fish hook would work.)
#13
CF Veteran
Join Date: Aug 2011
Location: Nor-Cal Coast
Posts: 10,489
Likes: 0
Received 17 Likes
on
17 Posts
Year: 90,84
Model: Cherokee
Engine: 4.0,2.5

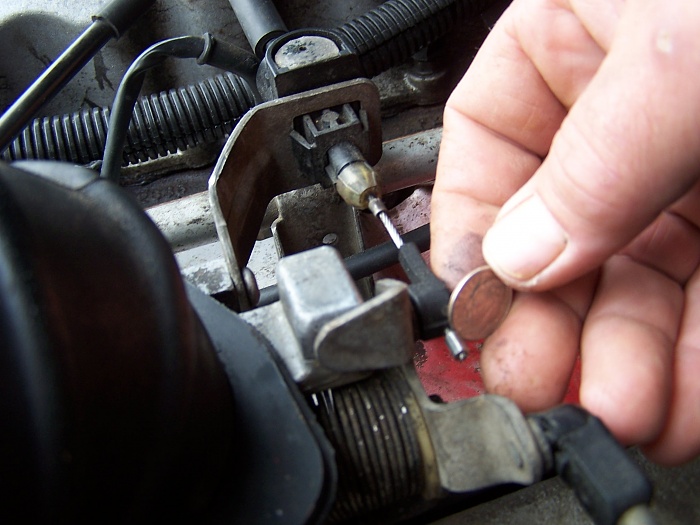

Oh, just I never did get the auto adjust deal. Idk..maybe I have something stuck...seems the space of a dime is fine, but I may well be missing something.
