Year: 1996
Model: Cherokee
Engine: 4.0l inline 6 stock
Possible transmission issues
Not sure of these symptoms. Drove my Jeep aprox 10 miles before I started shooting a large white cloud. The Jeep following me said it smelled like burning oil. Pulled over and had a large tranny fluid leak from around the engine oil pan, the tranny oil pan, and the near by areas. Hard to pin point the exact location due to the fluid being pushed back by the force of the wind at speeds.
Drove my Jeep back 10miles to my house. No white cloud. No leak(that I could tell). Everything seemed fine.
I'll post pictures ASAFP.
Drove my Jeep back 10miles to my house. No white cloud. No leak(that I could tell). Everything seemed fine.
I'll post pictures ASAFP.
#2
If it was me. I would wash everything off. Top of all fluids. After it dries drive for a mile or two. Stop and check. Repeat until you find a leak. If trans fluid was on the oil pan I would guess trans cooler lines. Maybe leak on trans cooler part of radiator. Or trans was over full and frothed out the dipstick Tube.
#3
Senior Member
Thread Starter
Join Date: Aug 2013
Location: Henderson, NV
Posts: 556
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0l inline 6 stock

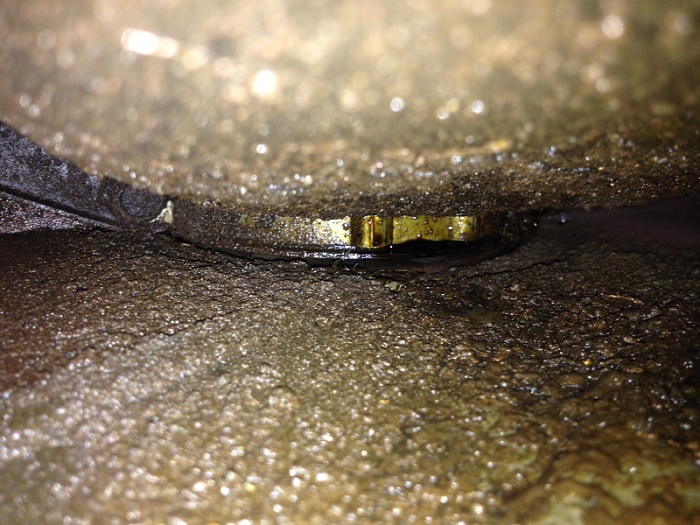

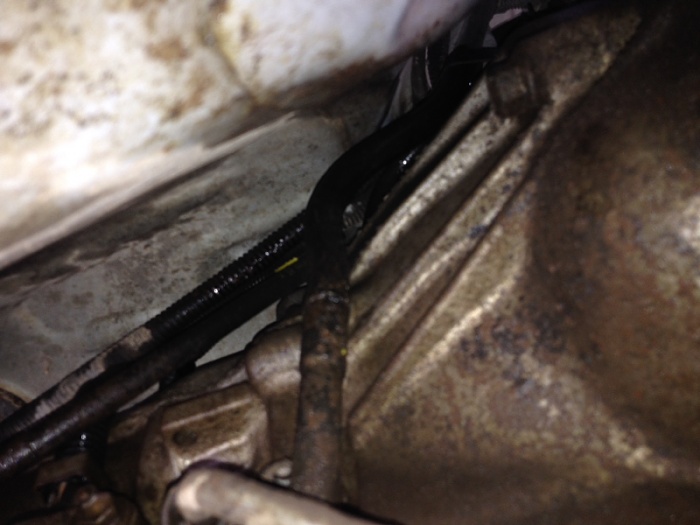

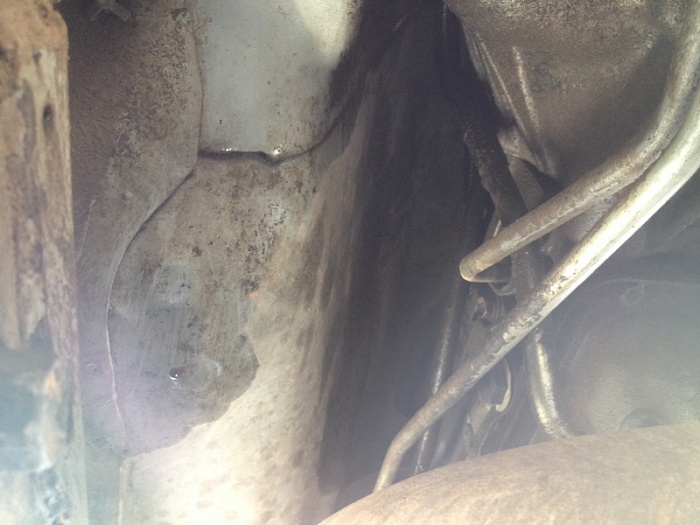

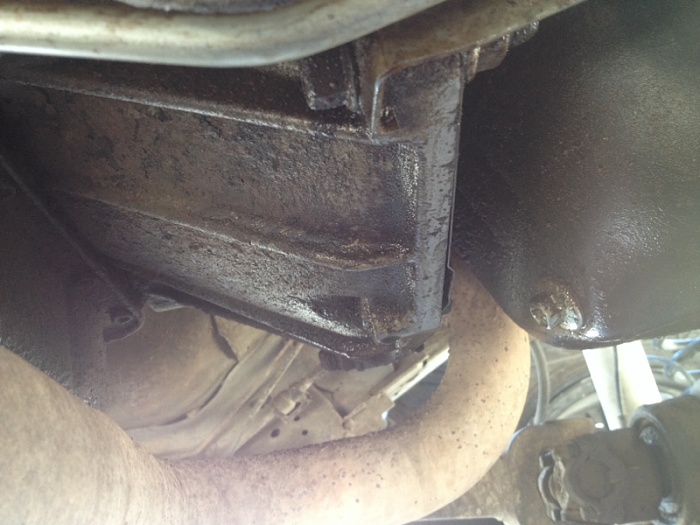

So these are the pictures I got. It's hard to tell being the pictures are off my phone, but hopefully you can make something out.
#4
Same here
Did you find the problem with the leak? I just bought a 1995 Cherokee yesterday and I had the exact same thing happen to me today. It spit out black fluid everywhere. I topped it off and drove 10 miles home with no leak.
There are only so many things that can leak selectively like this. It has me stumped. Is there an overflow of any kind on these transmissions? The fluid that leaked out was jet black which made me think it might have gotten hot. Can anything make these things overheat and push fluid out?
Thanks for any thoughts.
Joe
There are only so many things that can leak selectively like this. It has me stumped. Is there an overflow of any kind on these transmissions? The fluid that leaked out was jet black which made me think it might have gotten hot. Can anything make these things overheat and push fluid out?
Thanks for any thoughts.
Joe
#5
CF Veteran
Join Date: Apr 2012
Location: Wisconsin
Posts: 5,302
Likes: 0
Received 19 Likes
on
16 Posts
Model: Cherokee
Sure. Puking fluid out the vent tube or dipstick isn't uncommon when they overheat. Check the fluid condition and level and verify that your trans cooler and connecting lines are functional. Wouldn't hurt to check trans pan temp with an IR thermometer after taking it for a drive.
#6
Senior Member
Thread Starter
Join Date: Aug 2013
Location: Henderson, NV
Posts: 556
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0l inline 6 stock
Sure. Puking fluid out the vent tube or dipstick isn't uncommon when they overheat. Check the fluid condition and level and verify that your trans cooler and connecting lines are functional. Wouldn't hurt to check trans pan temp with an IR thermometer after taking it for a drive.
#7
CF Veteran
Join Date: Apr 2012
Location: Wisconsin
Posts: 5,302
Likes: 0
Received 19 Likes
on
16 Posts
Model: Cherokee
There isn't a real simple way to check flow through the cooler without disconnecting a line, but if they aren't leaking I'd leave well enough alone, provided everything looks good on the outside. Kinked/crushed cooler lines happen. Check the trans temp though, make sure it isn't running too hot. IR thermometer on the pan will work.
Trending Topics
#8
Senior Member
Thread Starter
Join Date: Aug 2013
Location: Henderson, NV
Posts: 556
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0l inline 6 stock
So had the same thing happen again as the OP today. Seems to only happen at high speed while sustaining 2500-3000rpms for long periods of time.
