toyotamatt

my 1990 Comanche 4.0 renix reaches normal operating temp 195 , then wants to crap out , pops through throttle body , like lack of fuel or timong issue ?

any suggestions or links to help diagnose

thanks

cruiser54

Timing is controlled by the ECU.

Perhaps coincidentally the fuel pump is overheating and losing pressure as it gets hot.

Could also be a CPS crapping out when warm.

Go to post 7 in my Renix Tips link below and see how to test it. Also, verify teh wire harness routing is correct per the photo in the post.

Gotta ask this also: How many of my Tips have you performed sso far?

CompleteCherokee

Cruiser, we need to find a way for every owner of a Renix to have your list printed out and put in each glovebox

cruiser54

And a club to beat them over the head with so they do the Tips FIRST.

toyotamatt

I would love a printable link to the whole list to keep in my top tool box drawer !

send me one please ..

im tired of going back and fourth to my computer anyway


kindly, matt

cruiser54

Somebody around here could do it. Not me. I would love to have it to share like that. What about the photos?

Stabsthedrama

If you own a renix and haven't at least read through all of cruiser's tips (and done most of them), you're not owning a renix right.

toyotamatt

working on TIPS as we speak , will update on results , thanks

toyotamatt

fuel pump ground before and after, w/die electric grease

CompleteCherokee

Lots of guys have recommended using Ox-Gard instead of dielectric grease, especially on grounds (you can get it at Home Depot).

toyotamatt

i found one at dealer , nos ?

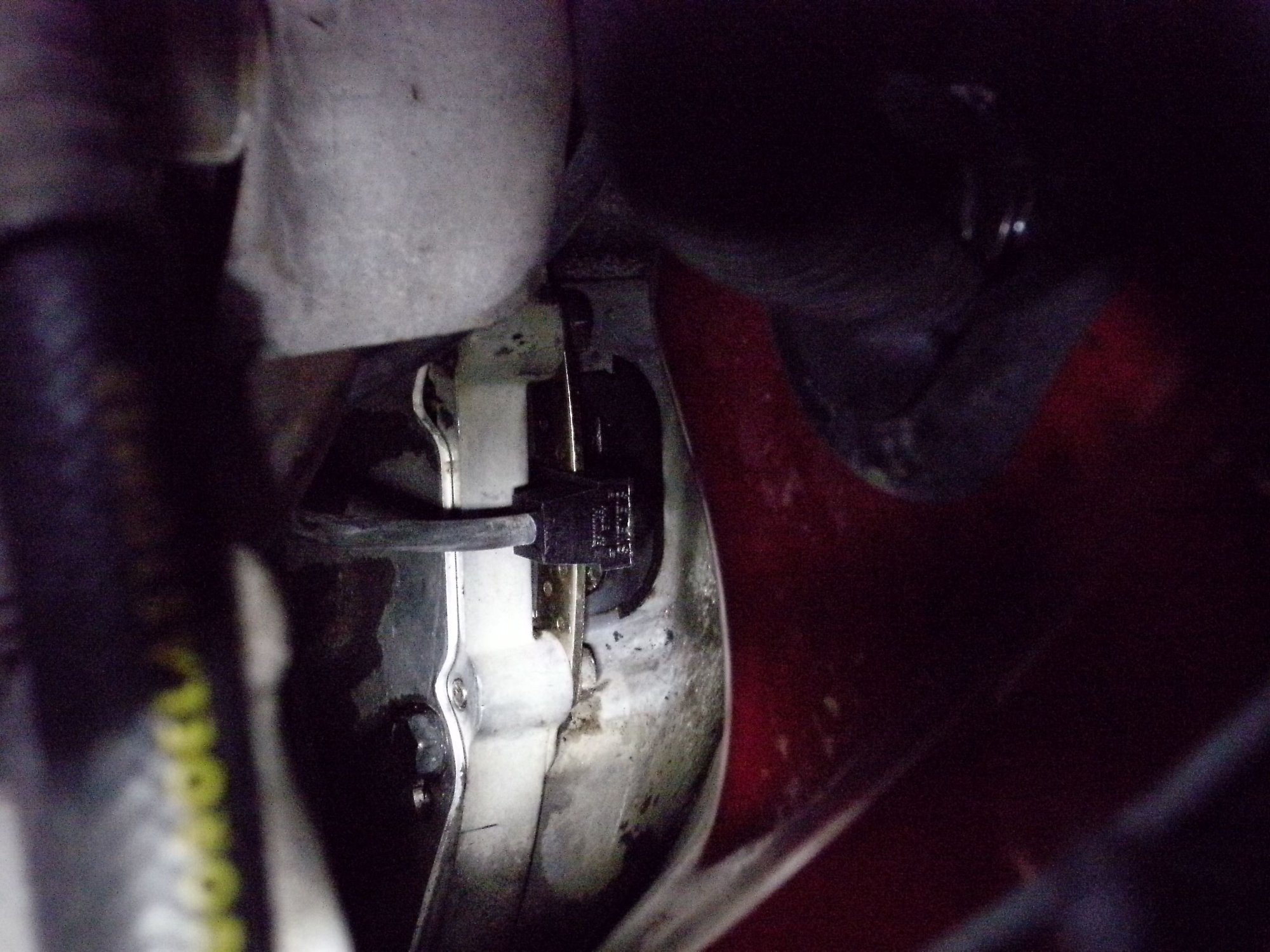

installed it , what i nightmare to install , sensor itself from top and bolts w/ tape to flex socket and 4 extensions later success ! been idleing over a hour and no problems , i also did coil cleaning as recomended by cruiser 54 and several tests and cleaning , but the sensor tested bad with AC volt test not ohm test !!

oil and dirt build up on sensor coming from bad slave cyl leak over time

thanks everybody who replied, now on to trans issue pulling clutch , lucky i have aisin ax trans and 2wd...

a very special thanks to cruiser 54 and his renix list !!!!!!!!!!!!!!!!!!!!!!!!!!!

cruiser54

Good job!!

Help me sleep better tonight by ditching that Fram oil filter.......

Dumajones

Like this, Cruiser's Renix tips printable>>> LINK

cruiser54

Fire up your printer Matt!!!!!!!!

toyotamatt

send me a link how , i know this is the rare metric aluminum mounting flange and can be switched to a different one that uses a better / size filter in either top or side position ?

that's all i know , and my flange to block is leaking !

thanks matt...
