p0700-no overdrive- Is it trans control module
#1
Newbie
Thread Starter
Join Date: Jun 2017
Location: montreal, Canada
Posts: 3
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
p0700-no overdrive- Is it trans control module
1998 jeep cherokee sport, drives well, check engine light on, code p0700, p0705....wondering if is trans control module or tranny solenoid pack in transmission?....
#3
CF Veteran
Join Date: Aug 2010
Location: Canton, MI
Posts: 8,357
Likes: 0
Received 82 Likes
on
67 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
The Transmission Range Sensor/Range Switch (TRS) is commonly referred to as the "NSS" hereabouts.
P0705-RANGE SENSOR
When Monitored: Continuously with the key on.
Set Condition: No Transmission Range Sensor signals are received or two conflicting signals are received from the Transmission Range Sensor at the same time by the TCM.
POSSIBLE CAUSES
PCM PARK/NEUTRAL DTC’S PRESENT
INTERMITTENT WIRING AND/OR CONNECTORS
FUSED IGNITION SWITCH OUTPUT OPEN OR HIGH RESISTANCE
TRS 1-2 SENSE CIRCUIT OPEN
TRS 3 SENSE CIRCUIT OPEN
TRS OVERDRIVE SENSE CIRCUIT OPEN
TRS REVERSE SENSE CIRCUIT OPEN
TRS 1-2 SENSE CIRCUIT SHORTED TO GROUND
TRS 3 SENSE CIRCUIT SHORTED TO GROUND
TRS OVERDRIVE SENSE CIRCUIT SHORTED TO GROUND
TRS REVERSE SENSE CIRCUIT SHORTED TO GROUND
TRS 1-2 SENSE CIRCUIT SHORTED TO VOLTAGE
TRS 3 SENSE CIRCUIT SHORTED TO VOLTAGE
TRS OVERDRIVE SENSE CIRCUIT SHORTED TO VOLTAGE
TRS REVERSE SENSE CIRCUIT SHORTED TO VOLTAGE
TRANS RANGE SENSOR-SENSE CIRCUIT
TCM-TRS SENSE CIRCUIT INPUTS
P0705-RANGE SENSOR
When Monitored: Continuously with the key on.
Set Condition: No Transmission Range Sensor signals are received or two conflicting signals are received from the Transmission Range Sensor at the same time by the TCM.
POSSIBLE CAUSES
PCM PARK/NEUTRAL DTC’S PRESENT
INTERMITTENT WIRING AND/OR CONNECTORS
FUSED IGNITION SWITCH OUTPUT OPEN OR HIGH RESISTANCE
TRS 1-2 SENSE CIRCUIT OPEN
TRS 3 SENSE CIRCUIT OPEN
TRS OVERDRIVE SENSE CIRCUIT OPEN
TRS REVERSE SENSE CIRCUIT OPEN
TRS 1-2 SENSE CIRCUIT SHORTED TO GROUND
TRS 3 SENSE CIRCUIT SHORTED TO GROUND
TRS OVERDRIVE SENSE CIRCUIT SHORTED TO GROUND
TRS REVERSE SENSE CIRCUIT SHORTED TO GROUND
TRS 1-2 SENSE CIRCUIT SHORTED TO VOLTAGE
TRS 3 SENSE CIRCUIT SHORTED TO VOLTAGE
TRS OVERDRIVE SENSE CIRCUIT SHORTED TO VOLTAGE
TRS REVERSE SENSE CIRCUIT SHORTED TO VOLTAGE
TRANS RANGE SENSOR-SENSE CIRCUIT
TCM-TRS SENSE CIRCUIT INPUTS
Last edited by CCKen; 06-13-2017 at 11:44 AM.
#4
Newbie
Thread Starter
Join Date: Jun 2017
Location: montreal, Canada
Posts: 3
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
Yea, I did some research and came up with the NSS being suspect, but the jeep starts up and shifts well (no overdrive though) and backup lights work when supposed to.....the previous owner had the NSS changed out 2.5 years ago........could it still be out of adjustment enough to throw a code?.........mechanic believes it's the trans control module under drivers side dash........still researching.......thanks for info guys.....
#5
Senior Member
Join Date: Jan 2017
Location: Central KS
Posts: 539
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1996
Model: Cherokee
Engine: 4.0
I went thru this a few months ago. First cleaned NSS, replaced NSS, replaced brake light switch (another possible cause), finally ended up replacing solenoids.
Everything seemed to fix the problem for a bit but then it would come back. Replacing the solenoids was the fix in the end for me. BUT certainly does not hurt to service the NSS first and check the brake light switch. Both are easy to check and basically free to service. Clean the NSS and insure it is adjusted well. Check your brake light switch to insure it isn't out of adjustment or needing replaced. Then if all else fails move on to solenoids. I got my kit from Cascade Transmission. it was like ~$75 for the 3 solenoids and a filter / gasket. It is an easy job should it come to that.
Everything seemed to fix the problem for a bit but then it would come back. Replacing the solenoids was the fix in the end for me. BUT certainly does not hurt to service the NSS first and check the brake light switch. Both are easy to check and basically free to service. Clean the NSS and insure it is adjusted well. Check your brake light switch to insure it isn't out of adjustment or needing replaced. Then if all else fails move on to solenoids. I got my kit from Cascade Transmission. it was like ~$75 for the 3 solenoids and a filter / gasket. It is an easy job should it come to that.
Trending Topics
#8
Newbie
Thread Starter
Join Date: Jun 2017
Location: montreal, Canada
Posts: 3
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
Well, I'm letting the check engine light alone for now and will concentrate on repairing a few holes in the drivers side floor (the right way).....I wish the original owner never had that cruddy black undercoating sprayed on the underside...the stuff is rock hard but breaks off in chunks.......rust formed even with yearly rust treatment on my part ....bummer.....still, a labour of love.....lol
#9
Seasoned Member

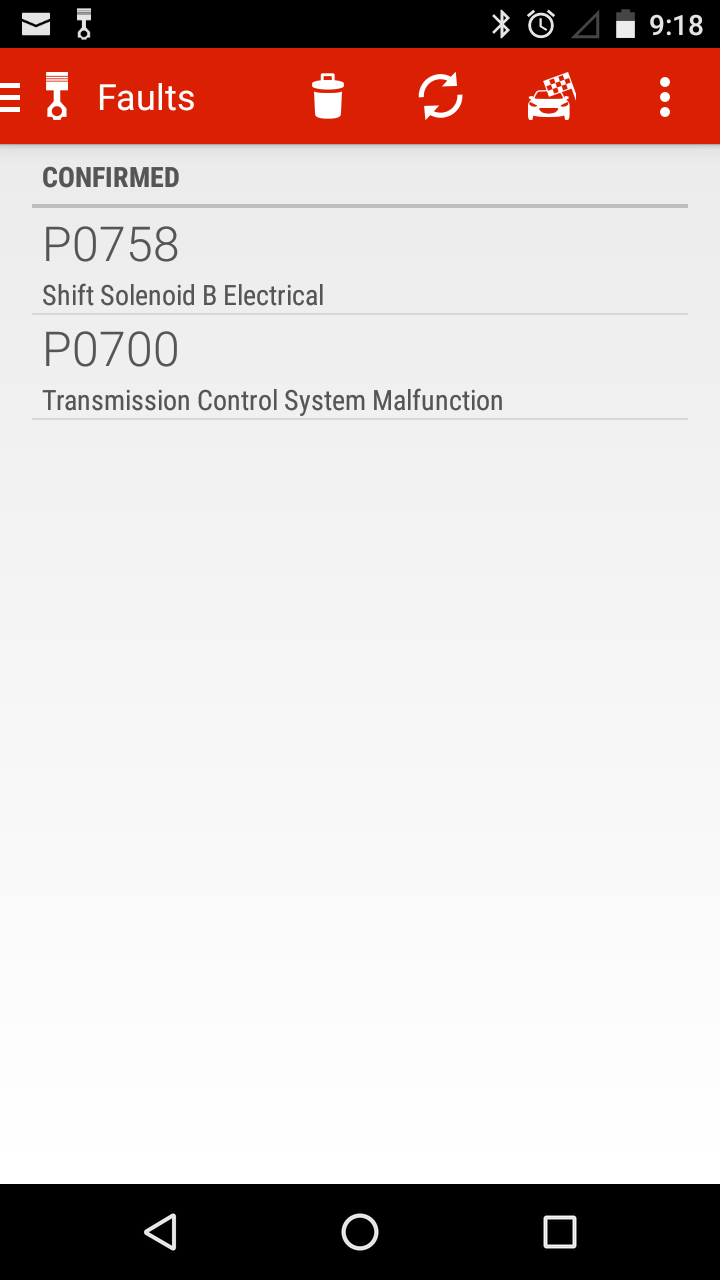

Funny, i just had a similar issue happen to me. Borg, does yours still shift smoothly after it warms up?
Long story short on mine, it seems to run fine but after it drives for a little while (15 minutes or so?) it wants to do they fabled "stay in 4th gear" unless you manually put it into 1-2. Fluid is fine, i doubt it is the TV cable, i suppose it could be the grounds as i did the headlight harness mod a week ago, but im doubtful of that too.
I guess i can check the NSS. I do know mine needs adjusted since the reverse lights dont like to come on.
Tacklebox, you found all that for 75 bucks? dang, on Amazon they want 160 for three solenoids alone.
Long story short on mine, it seems to run fine but after it drives for a little while (15 minutes or so?) it wants to do they fabled "stay in 4th gear" unless you manually put it into 1-2. Fluid is fine, i doubt it is the TV cable, i suppose it could be the grounds as i did the headlight harness mod a week ago, but im doubtful of that too.
I guess i can check the NSS. I do know mine needs adjusted since the reverse lights dont like to come on.
Tacklebox, you found all that for 75 bucks? dang, on Amazon they want 160 for three solenoids alone.
