P0304 again question again for noob
Summary: had rough idle, cleaned up IAC, got better, a week later, p0303 and 304 came up. Went away for a day. Came back next day. Replaced dist. Cap, rotor, wires, #3 and 4 plugs. Drove for a day, today the 0304 came back. So tomorrow I'm going to pull the plug and put in a new one. After that, if it returns, compression test? Everything I have done on this jeep has been my first time doing it. I'm not scared to really get into the engine, but I have to go very so and with the most knowledge possible.
Let me know if there is something else I can check first. I figure a 5$ plug is a cheap test to do since they can and do fail.
Thanks!
Let me know if there is something else I can check first. I figure a 5$ plug is a cheap test to do since they can and do fail.
Thanks!
#2
CF Veteran
Join Date: Aug 2010
Location: Canton, MI
Posts: 8,357
Likes: 0
Received 82 Likes
on
67 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
Summary: had rough idle, cleaned up IAC, got better, a week later, p0303 and 304 came up. Went away for a day. Came back next day. Replaced dist. Cap, rotor, wires, #3 and 4 plugs. Drove for a day, today the 0304 came back. So tomorrow I'm going to pull the plug and put in a new one. After that, if it returns, compression test? Everything I have done on this jeep has been my first time doing it. I'm not scared to really get into the engine, but I have to go very so and with the most knowledge possible.
Let me know if there is something else I can check first. I figure a 5$ plug is a cheap test to do since they can and do fail.
Thanks!
Let me know if there is something else I can check first. I figure a 5$ plug is a cheap test to do since they can and do fail.
Thanks!
It may be a good idea to do a compression loss check on #4.
If you don't have a compressor rent one from a rent-all joint.
Apply around 80-90 psi to the cylinder while its at TDC compression.
Listen for air escaping through the TB - burnt/warped intake valve. Air escaping out the oil filler cap or oil dipstick tube - bad rings. Air escaping out the exhaust tailpipe - burnt/warped exhaust valve.
Valves may have a piece of crap lodged under their seat. With suspected valve problems you can run a can of Chrysler Combustion Chamber Cleaner (Dealer) through the TB to see if it helps.
If there is no air escapng anywhere, you may want to pull the valve cover off and check the valve springs.
Let us know what you find.
Last edited by CCKen; 12-07-2014 at 03:39 PM.
#5
Seasoned Member
Thread Starter
Join Date: May 2013
Location: North Atlantic - Delaware
Posts: 410
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: Inline 6 4.0
Just drove it home, check engine light never came on. Lead me to think there is crap in there instead of something more serious like a blown head. Is that a fair assumption? I'm still doing the test tomorrow, but does the logic make sense?
#6
Seasoned Member
Thread Starter
Join Date: May 2013
Location: North Atlantic - Delaware
Posts: 410
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: Inline 6 4.0
I did the seafoam treatment and plan to still do the compression test. The idle is much much much better and RPM is holding very stead at 660ish. My light is on and codes are now reading 300 303 and 304. The engine doesn't sound like it's skipping/hiccuping or anything. After I finish the comp test I'll post back
#7
Seasoned Member
Thread Starter
Join Date: May 2013
Location: North Atlantic - Delaware
Posts: 410
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: Inline 6 4.0
So I still havnt got the test done, local stores don't have them for rent. I replaced the plugs 3 and 4 with the Bosch iridium 4 prong plugs and the CEL is no longer burning. It sounds fine as far as I can tell, no major jumping or shaking. Could I have simply had 2 failed plugs??? Seems very strange to be that close of a coincidence to me... Any way, problem isn't there from what I can see.
Trending Topics
#8
CF Veteran
Join Date: Aug 2010
Location: Canton, MI
Posts: 8,357
Likes: 0
Received 82 Likes
on
67 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
So I still havnt got the test done, local stores don't have them for rent. I replaced the plugs 3 and 4 with the Bosch iridium 4 prong plugs and the CEL is no longer burning. It sounds fine as far as I can tell, no major jumping or shaking. Could I have simply had 2 failed plugs??? Seems very strange to be that close of a coincidence to me... Any way, problem isn't there from what I can see.
With Bosch iridium 4 prong plugs in there I'm sure you'll be back on the forum.
But glad it's working okay for now.
Cheers
#9
Seasoned Member
Thread Starter
Join Date: May 2013
Location: North Atlantic - Delaware
Posts: 410
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: Inline 6 4.0

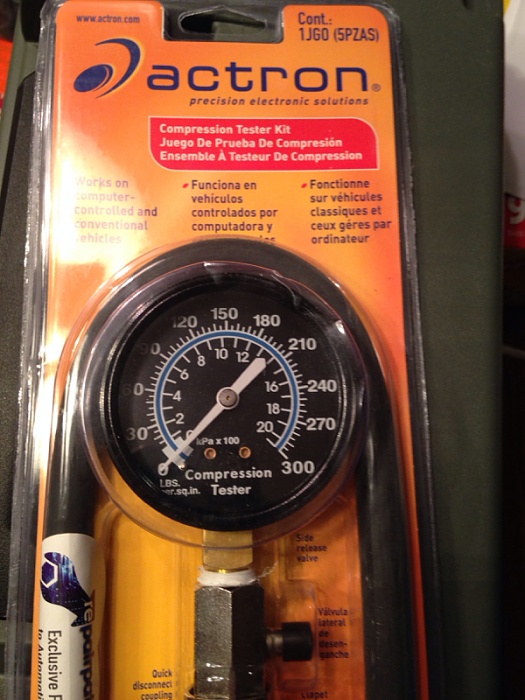

I havnt had the check engine light come back on yet, but I did get my compression test tool today in the mail. Next week sometime I'll get out and check them.
I'll post back my findings.
I'll post back my findings.
#10
Senior Member
Join Date: Apr 2012
Location: Ocean, New Jersey
Posts: 578
Likes: 0
Received 4 Likes
on
4 Posts
Year: 2000
Model: Cherokee
Engine: 4.0
The test described in the earlier post is cylinder leak down test and needs an air compressor with a proper fitting for the spark plugs, etc. What you have is compression test gauge to measure cylinder compression. The compression across the six cylinders should read 120-150 psi with no more than 30 psi variation across the board. But aside from all this, your issue could also be caused by the injectors. Swap cylinder 3 and 4 to other injectors and see if the code follows.
#11
Seasoned Member
Thread Starter
Join Date: May 2013
Location: North Atlantic - Delaware
Posts: 410
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: Inline 6 4.0
The test described in the earlier post is cylinder leak down test and needs an air compressor with a proper fitting for the spark plugs, etc. What you have is compression test gauge to measure cylinder compression. The compression across the six cylinders should read 120-150 psi with no more than 30 psi variation across the board. But aside from all this, your issue could also be caused by the injectors. Swap cylinder 3 and 4 to other injectors and see if the code follows.
#13
Senior Member
Join Date: Nov 2014
Location: Hacienda Heights
Posts: 603
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1990
Model: Cherokee
Engine: 4.0

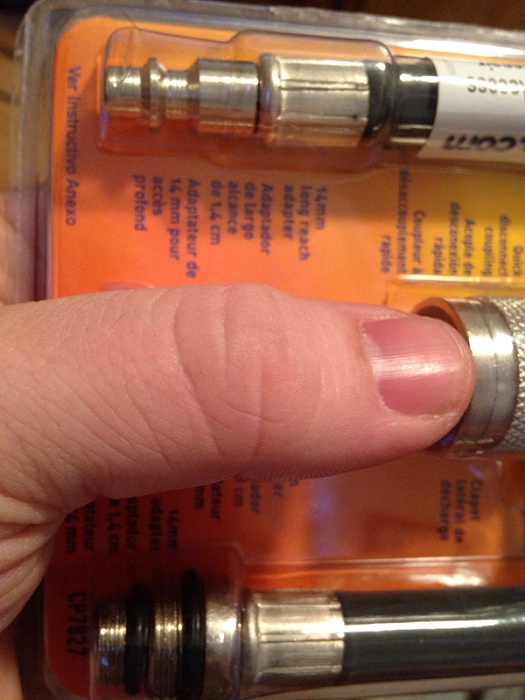

You can use the hose to do a leakdown, just remove the valve in the other end of the hose with a tire valve tool. Don't loose the valve, altho it looks just like a tire valve it's different and the tester won't work right with a tire valve.
#14
Seasoned Member
Thread Starter
Join Date: May 2013
Location: North Atlantic - Delaware
Posts: 410
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: Inline 6 4.0
#15
This might be off base but check the head casting number. The stamp is on the drivers side, top of the head in between the exhaust hookups for three and four. You might have to pull out the silver heat shield. Make sure it's a 0630 head casting. If it's 0331 that could be your problem. The 331's are prone to a crack in between 3 and 4.
Just a thought.
Just a thought.
