Overheating and hose issue
#1
Newbie
Thread Starter
Join Date: May 2013
Location: Minneapolis
Posts: 10
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Overheating and hose issue
In the spirit of Minnesota winter, my beloved Jeep overheated at 1 am, in -11.
I can see fluid in the antifreeze tank. I hear what sounds like the pump engaging (but it sounds dry). Looking underneath I see that a hose on the driver's side is both unplugged from somewhere.
Normally I would have crawled under and located where it needs to plug back into. But the hose is also severed. How? Well, in a Murpheys law manner, Jeep lurched forward on tow dolly ( only 1/4 from home) and that hose was cut clean.
So, I am not sure if that hose actually does anything at all in regard to cooling. Or if it was unplugged or otherwise damaged before the tow incident. It is thick black and has the #34611 and has nipple end. One search returned indicated it was a axle breather hose, but that did not really make sense.
Can someone confirm if that being unplugged would impact the cooling of the engine. I apologize if this is a really obvious one.
PS - I am the original owner and think my Jeep has lots of life left. Any help is appreciated.
Thanks- Avin
I can see fluid in the antifreeze tank. I hear what sounds like the pump engaging (but it sounds dry). Looking underneath I see that a hose on the driver's side is both unplugged from somewhere.
Normally I would have crawled under and located where it needs to plug back into. But the hose is also severed. How? Well, in a Murpheys law manner, Jeep lurched forward on tow dolly ( only 1/4 from home) and that hose was cut clean.
So, I am not sure if that hose actually does anything at all in regard to cooling. Or if it was unplugged or otherwise damaged before the tow incident. It is thick black and has the #34611 and has nipple end. One search returned indicated it was a axle breather hose, but that did not really make sense.
Can someone confirm if that being unplugged would impact the cooling of the engine. I apologize if this is a really obvious one.
PS - I am the original owner and think my Jeep has lots of life left. Any help is appreciated.
Thanks- Avin
Last edited by Avinlea; 12-30-2013 at 02:57 PM. Reason: Added photos
#2
Senior Member
A picture of the hose would help to identify it. That said, the only hoses that can affect your cooling system are connected to your radiator or heater core/t-stat housing. Are any of those hoses damaged?
#3
Newbie
Thread Starter
Join Date: May 2013
Location: Minneapolis
Posts: 10
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
hose damage
I am just perplexed on why it is overheating when there is no leak present and I have checked other fluids. (My oil is dirty, but there is plenty of it.)

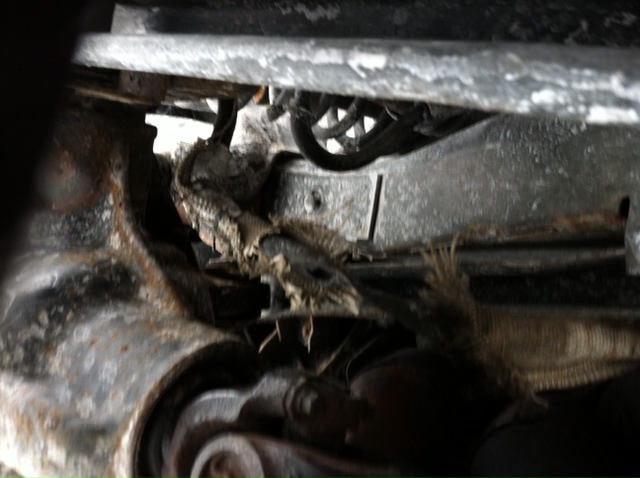

The one hose I mentioned earlier is cut, I think from the mishap with the tow. Added photos above and here is the remaining piece of hose that is still in place on the drivers side.
Last edited by Avinlea; 12-30-2013 at 03:18 PM. Reason: revised entry
#4
CF Veteran
Join Date: Apr 2009
Posts: 4,734
Likes: 0
Received 9 Likes
on
9 Posts
Year: 2015, 2012
Model: Grand Cherokee (WK2)
Engine: 3.6L
'01 Cherokee had the notorious and dreaded 0331 head. They are real prone to cracking between #3 and #4 cylinders.
Remove the oil filler cap and shine a flashlight back there and see if you see a crack. That is only the first step. There are numerous postings on this site as to what to look for.
I'm at work so don't have a lot of time to walk you through this. Good luck.
Remove the oil filler cap and shine a flashlight back there and see if you see a crack. That is only the first step. There are numerous postings on this site as to what to look for.
I'm at work so don't have a lot of time to walk you through this. Good luck.
#6
CF Veteran
Join Date: Mar 2011
Location: Waterloo, Iowa
Posts: 1,102
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0
The hose pic you posted is the front differential breather hose......unrelated to the cooling system. Replace it when the weather is more tolerable.
My first thought is this. Is your coolant able to handle -11 degrees? It's not frozen somewhere and not circulating is it? Seen that crack blocks before.....not pretty.
I feel your pain about the temperature. I'm just south of you and was working on my cooling system yesterday outside.
My first thought is this. Is your coolant able to handle -11 degrees? It's not frozen somewhere and not circulating is it? Seen that crack blocks before.....not pretty.
I feel your pain about the temperature. I'm just south of you and was working on my cooling system yesterday outside.
#7
Newbie
Thread Starter
Join Date: May 2013
Location: Minneapolis
Posts: 10
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
The hose pic you posted is the front differential breather hose......unrelated to the cooling system. Replace it when the weather is more tolerable.
My first thought is this. Is your coolant able to handle -11 degrees? It's not frozen somewhere and not circulating is it? Seen that crack blocks before.....not pretty.
I feel your pain about the temperature. I'm just south of you and was working on my cooling system yesterday outside.
My first thought is this. Is your coolant able to handle -11 degrees? It's not frozen somewhere and not circulating is it? Seen that crack blocks before.....not pretty.
I feel your pain about the temperature. I'm just south of you and was working on my cooling system yesterday outside.
My roommate thought it was the thermostat. Replaced, no change. The only thing is that for as hot as the engine is getting, the system is not kicking out any heat inside.
Trending Topics
#8
CF Veteran
Join Date: Mar 2010
Location: Broward County Fl.
Posts: 47,923
Likes: 0
Received 22 Likes
on
22 Posts
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
Thanks for confirming on the breather hose. Coolant is rated for our crazy cold and checked. it is circulating.
My roommate thought it was the thermostat. Replaced, no change. The only thing is that for as hot as the engine is getting, the system is not kicking out any heat inside.
My roommate thought it was the thermostat. Replaced, no change. The only thing is that for as hot as the engine is getting, the system is not kicking out any heat inside.
#9
Newbie
Thread Starter
Join Date: May 2013
Location: Minneapolis
Posts: 10
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Running now :)
The antifreeze that came out of the radiator was not as vibrant, but no other tell tale signs.
