Overhead Console Quit Working

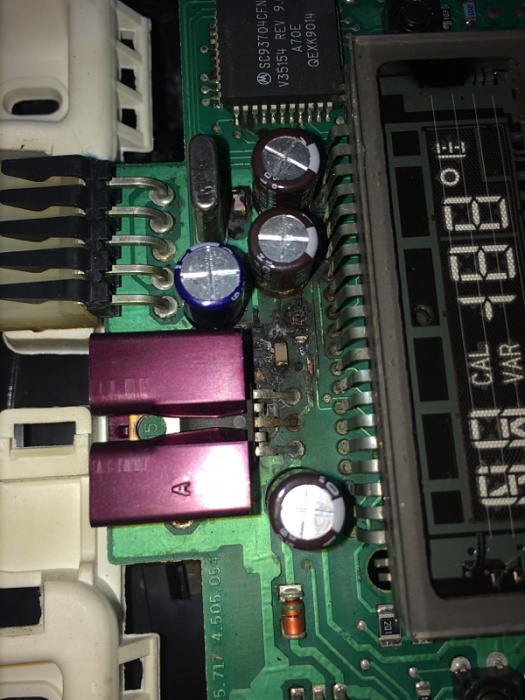

I have tried searching for this topic online and have had no success. I have 2-1990 jeep Cherokees with the Laredo package and the overhead console. The computers in both consoles have stopped working when they were at 18 and 19 years of age. When I took them apart, I discovered what appears to be 3 resistors that have burned up on the circuit board (circled in the picture below). Both jeeps have the exact same problem. I have obtained an additional one from an early 90s Cherokee in the junk yard and it had the same problem. It seems that this is a common problem with these computer units with that age. I even took the unit to an electronics buddy. Without a wiring schematic or single line diagram, he could not fix the circuit. Has anybody else experienced this problem? Is there a way to fix the burned up circuit? What causes this to happen? Is there a way to avoid this problem occurring on a working unit? Any help is MUCH appreciated!
#2
Newbie
Join Date: Feb 2011
Location: Corona, Ca
Posts: 2
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1995
Model: Cherokee
Engine: 4.0
On my 95 I had a similar issue except when my compass/temp display died it allowed the "magic smoke" to escape from some of the components while I was driving down the road (scared the crap out of me)! I was lucky to have another display, that was also dead, but on another circuit so I swapped the parts over. Unfortunately, I was unable to find a schematic of the board so I cannot tell if they are resistors, capacitors, or inductors.
If you have another display it is possible to remove and replace the components but, what I found when I fixed mine, the traces under the damaged components were damaged as well so I had to do some creative wiring to get it to work again.
If it'll help I'll pull mine out and ohm check the components to get a better idea of what they are. Most of the components, with the exception of the vacuum display and the large IC's, can be found at mouser.com or digikey.com .
Cliff
If you have another display it is possible to remove and replace the components but, what I found when I fixed mine, the traces under the damaged components were damaged as well so I had to do some creative wiring to get it to work again.
If it'll help I'll pull mine out and ohm check the components to get a better idea of what they are. Most of the components, with the exception of the vacuum display and the large IC's, can be found at mouser.com or digikey.com .
Cliff
#3
Mine's a '97. Similar problem = compass/temp display dashes. Elapsed time does work. Replaced the whole console twice with same display. Some say it's really the BCM under the dash??? But I read that's a pain as the Dealer has to "computerize" it if you replace it (???).
#4
Newbie
Join Date: Feb 2011
Location: Corona, Ca
Posts: 2
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1995
Model: Cherokee
Engine: 4.0
Mine's a '97. Similar problem = compass/temp display dashes. Elapsed time does work. Replaced the whole console twice with same display. Some say it's really the BCM under the dash??? But I read that's a pain as the Dealer has to "computerize" it if you replace it (???).
Cliff
#5
My compass/temp gauge also died. When I first got it, the the numbers on the screen lit but not completely and now it doesn't work at all. I'm gonna make sure that all the plugs and temp sensor is plugged in but I'm thinking it's either the screen or the circuit board that's messed up.
#6
Burnt resistors
Is there anyone out there that has a working console that would be nice and check the resistance value on those 3 resistors for all of us with burnt resistors. Plus this will help you when yours burn out.
Thank You
Everyone with burnt resistors
Thank You
Everyone with burnt resistors
Trending Topics
#8
Junior Member
Join Date: Sep 2010
Location: Córdoba Ver. México
Posts: 64
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1997
Model: Grand Cherokee
Engine: 4.0L
I have the same problem with my Xj, but both bottons were melted because of the heat, i changed those bottons and .... nothing...., then i got a zj´s OH module, because mine is 94´ and it is very difficult to find this part in México,.. i will try to make a sort of frankenstein with both, but i am not sure about the results...i´ll let you know what will happen !!!
#9
Junior Member
Join Date: Sep 2010
Location: Córdoba Ver. México
Posts: 64
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1997
Model: Grand Cherokee
Engine: 4.0L
and finally.....
Guys, you are not going to believe this,.... THE F.CK.NG THING IS WORKING NOW!!!!!. I just resolded all litlle parts inside the rig, changed 2 filters, 33 microfaradius and 50 volts; cleaned all the tinny electronic components with thinner, checked the 9 wires of the harness and IT JUST WORKED AS NEW !!
Maybe yours can be fixed also!!!, a friend of mine told me that, when electronic components are exposed to moisture for extended periods of time, they just got "sulfate" on it and this substance doesn´t allow electric current flows properly, so you must clean those components with thinner. I did it and i am very, very happy with the results!!!
Try searching by " cherokee sport ´95 overhead console manual " ( all cherokees from 1991- 1995 have the same wiring system, only changes the equipment) good luck and i hope this could help you.... cheers from México.!
Maybe yours can be fixed also!!!, a friend of mine told me that, when electronic components are exposed to moisture for extended periods of time, they just got "sulfate" on it and this substance doesn´t allow electric current flows properly, so you must clean those components with thinner. I did it and i am very, very happy with the results!!!
Try searching by " cherokee sport ´95 overhead console manual " ( all cherokees from 1991- 1995 have the same wiring system, only changes the equipment) good luck and i hope this could help you.... cheers from México.!
#11
What exactly does all this mean? lol. Did you just clean the compass motherboard/card with thinner or did you have to fix it up?
Last edited by ChrisDG23; 06-21-2011 at 09:34 PM.
#12
Junior Member
Join Date: Sep 2010
Location: Córdoba Ver. México
Posts: 64
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1997
Model: Grand Cherokee
Engine: 4.0L
Guys, you are not going to believe this,.... THE F.CK.NG THING IS WORKING NOW!!!!!. I just resolded all litlle parts inside the rig, changed 2 filters, 33 microfaradius and 50 volts; cleaned all the tinny electronic components with thinner, checked the 9 wires of the harness and IT JUST WORKED AS NEW !!
Maybe yours can be fixed also!!!, a friend of mine told me that, when electronic components are exposed to moisture for extended periods of time, they just got "sulfate" on it and this substance doesn´t allow electric current flows properly, so you must clean those components with thinner. I did it and i am very, very happy with the results!!!
Try searching by " cherokee sport ´95 overhead console manual " ( all cherokees from 1991- 1995 have the same wiring system, only changes the equipment) good luck and i hope this could help you.... cheers from México.!
Maybe yours can be fixed also!!!, a friend of mine told me that, when electronic components are exposed to moisture for extended periods of time, they just got "sulfate" on it and this substance doesn´t allow electric current flows properly, so you must clean those components with thinner. I did it and i am very, very happy with the results!!!
Try searching by " cherokee sport ´95 overhead console manual " ( all cherokees from 1991- 1995 have the same wiring system, only changes the equipment) good luck and i hope this could help you.... cheers from México.!
#13
CF Veteran
Join Date: Feb 2015
Location: North Carolina
Posts: 1,528
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1993
Model: Cherokee
Engine: 4.0
I know this thread is OLD as heck but im needing some help. I've got 2 overhead consoles, one works perfectly, one, the display doesn't work and I found a burnt spot in the circuit board, same spot as in the above post. What all do I need to check and how in my working console in order to find the type of parts needing to be replaced in my burnt console. Thanks.
Last edited by 93XJeeper; 09-06-2016 at 12:17 AM.
#14
Senior Member
One of your capacitors exploded, and it screwed up a trace in the process. Based on the other posts, you'll need to replace the two capacitors and repair the trace. If none of that makes sense to you, you'll need to find a friend to help you.
