Opinion on my brakes
I'm about to go about repairing my drum brakes on my 8.25 and would like your opinion on what all should be replaced. I'm fairly certain that I'll need all the hardware, shoes and wheel cylinders, I'm just not sure about the drums.

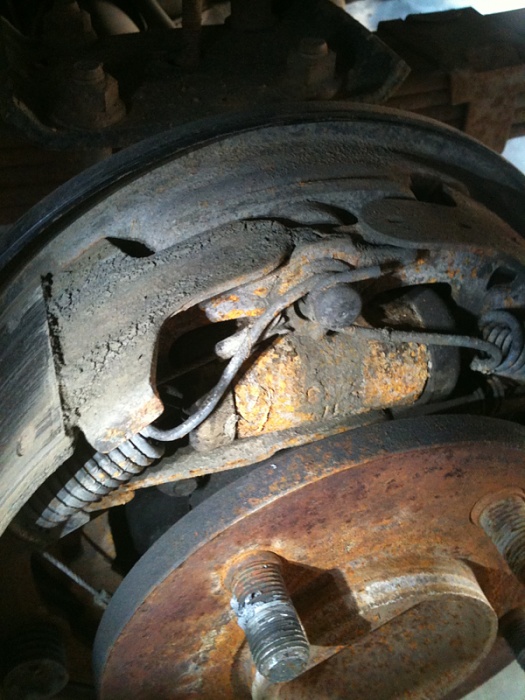

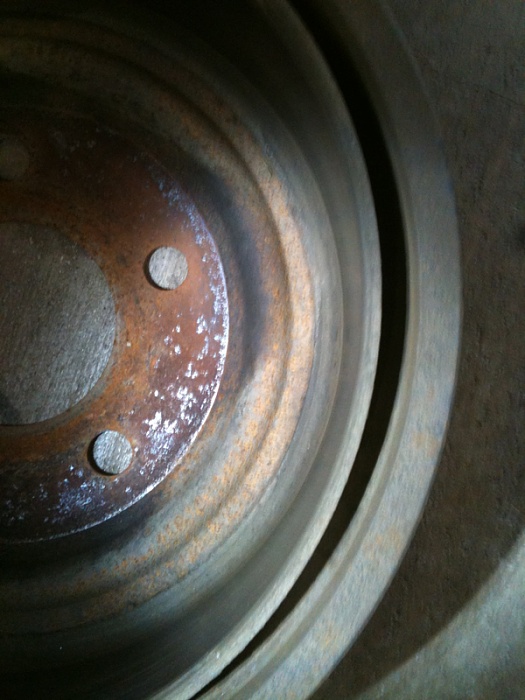

I attached pics of and overall view around the cylinder, the condition of the shoes, and condition of the drums.
I attached pics of and overall view around the cylinder, the condition of the shoes, and condition of the drums.
#2
CF Veteran
Join Date: Jun 2010
Location: Ohio
Posts: 2,117
Likes: 0
Received 3 Likes
on
3 Posts
Year: 1998
Model: Cherokee
Engine: 4.0 stock
At the store ask for a "drum brake hardware kit" It should include all new springs and clips. If the drums aren't rutted, pitted or warped you should be okay.
Are the wheel cylinders leaking or something?
Are the wheel cylinders leaking or something?
#4
CF Veteran
Join Date: Jun 2010
Location: Ohio
Posts: 2,117
Likes: 0
Received 3 Likes
on
3 Posts
Year: 1998
Model: Cherokee
Engine: 4.0 stock
Mine did that but it was because the drums weren't adjusted correctly. Believe me unless you have an issue with the wheel cylinders there is no need to replace them. You aren't going to have fun replacing them only to find out it was a different issue.
#7
Seasoned Member
Join Date: Feb 2010
Location: PA
Posts: 315
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
You should replace the adjuster cable also. I dont think the kits come with it.
My wheel cylinder was sticking also on one side and I replaced it and the problem was fixed. But my rear brake lines were pretty rusted and ended up having to replace the rear line since it wouldnt twist out the wheel cylinder
My wheel cylinder was sticking also on one side and I replaced it and the problem was fixed. But my rear brake lines were pretty rusted and ended up having to replace the rear line since it wouldnt twist out the wheel cylinder
Last edited by Slugger; 06-06-2011 at 01:53 PM.
Trending Topics
#8
CF Veteran
Join Date: Feb 2010
Location: Oroville, CA
Posts: 12,367
Likes: 0
Received 19 Likes
on
18 Posts
Year: 1995
Model: Grand Cherokee
Engine: 4.0 with all of the noise and clatter
I would replace the wheel cylinders too, it's just cheap insurance and I bet there is some pitting inside the cylinder bores.
#9
CF Veteran
Join Date: Jun 2010
Location: Ohio
Posts: 2,117
Likes: 0
Received 3 Likes
on
3 Posts
Year: 1998
Model: Cherokee
Engine: 4.0 stock
Cheap insurance but be warned of the time and difficulty involved. Make sure you pick up brake fluid if you replace them. Also tools to bleed the brakes if you don't have a helper to pump the pedal.
#10
CF Veteran
Join Date: Mar 2008
Location: South Side Chicago
Posts: 2,088
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1992, 2- 1998 (All 3, 4 Doors)
Model: Cherokee
Engine: 4.0L in all
Hardware kit and adjuster kit for each side. Probably drums too as most I've seen are usually at their max and can't be machined anymore.
#11
Member
Thread Starter
Join Date: Mar 2009
Posts: 105
Likes: 0
Received 0 Likes
on
0 Posts
Year: 98
Model: Cherokee
Discovered something of interest while adjusting my driver side drum, in the pic u can see there a quite enlarge gap where the star adjuster meets the little flange thing.
#12
Seasoned Member
Join Date: Aug 2010
Location: Illinois
Posts: 358
Likes: 0
Received 2 Likes
on
1 Post
Year: 1999
Model: Cherokee
Engine: 4.0
I don't see anything that looks like it needs to be replaced right away. While a little thin, you still have quite a bit of meat on the shoes and there's no evidence of fluid leaking. If you plan to replace everything, I'd be inclined to go a while unless you are having braking problems.
