No heat in winter...
Hey guys. I tried finding a thread for it but I couldn't. I have a stock 2001 xj. My issue is that my ac/heater fan is off and comes on very rarely. I changed the resistor and that didn't work so I went for a new blower motor that worked for about a day. It doesn't work on fan settings 1,2,3,4. Any help is greatly apreciated.
Thank you!
Alex
Thank you!
Alex
#3
Newbie
Thread Starter
Join Date: Jan 2016
Location: Michigan
Posts: 17
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0 straight six
Would it be obvious to tell that is melted? I will check that! If it is how could I fix that? just splice in a new plug??
Thank you!!
Thank you!!
#4
CF Veteran
Join Date: Aug 2010
Location: Canton, MI
Posts: 8,357
Likes: 0
Received 82 Likes
on
67 Posts
Year: 1999
Model: Cherokee
Engine: 4.0

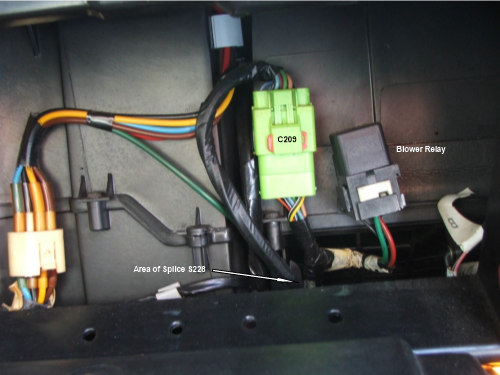

If the resistor block connector is not damaged it might be a defective blower relay, located behind the glove box.
Roll the glove box down and you can get at it.
Roll the glove box down and you can get at it.
#5
Newbie
Thread Starter
Join Date: Jan 2016
Location: Michigan
Posts: 17
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0 straight six
I checked the resistor connection it looked good. I also checked the blower connection and that seemed okay. I was driving today and the fan turned on and I turned it to setting 4 and it turned of and wouldn't blow on any setting.
#6
CF Veteran
Join Date: Aug 2010
Location: Canton, MI
Posts: 8,357
Likes: 0
Received 82 Likes
on
67 Posts
Year: 1999
Model: Cherokee
Engine: 4.0

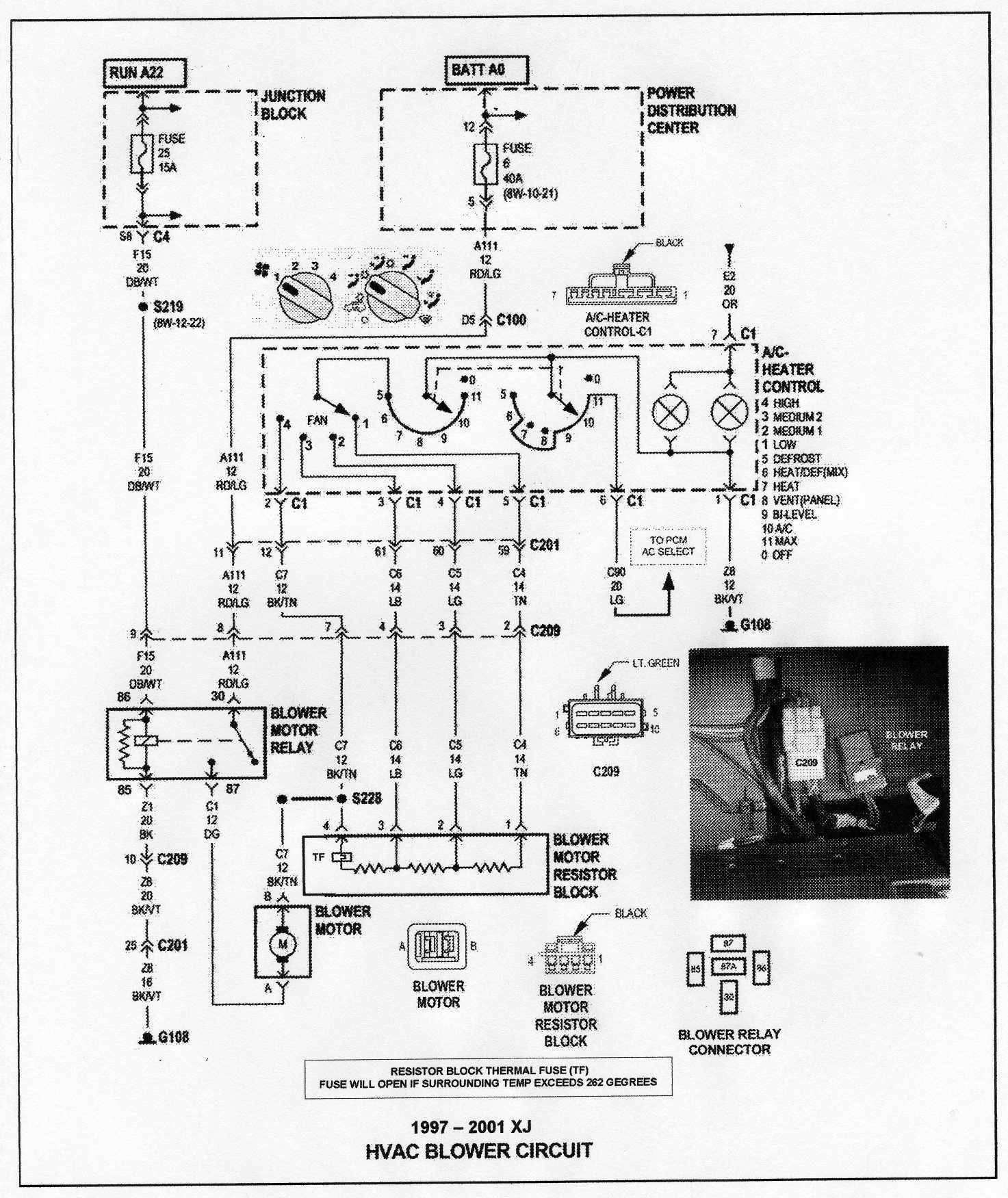

Here's a schematic of your blower circuit.
Note that all blower speeds go through the blower relay.
Fuse F25 in the JB protects the blower relay control coil. If it blows the relay won't operate.
Fuse F6 in the PDC protects the blower motor via the relay.
Some folks go directly to the blower, remove the connector, and apply 12 volts to the blower pin A while providing a ground to pin B. If the blower works the issue is in the control circuit, if not, the blower is defective.
You may want to try shock therapy to the blower motor. With the ignition switch to ON/RUN, the mode selector to any setting except OFF, and the blower speed switch to any speed - open the hood and tap the end of the blower motor with a blunt instrument. If the blower starts working it's defective.
.
Note that all blower speeds go through the blower relay.
Fuse F25 in the JB protects the blower relay control coil. If it blows the relay won't operate.
Fuse F6 in the PDC protects the blower motor via the relay.
Some folks go directly to the blower, remove the connector, and apply 12 volts to the blower pin A while providing a ground to pin B. If the blower works the issue is in the control circuit, if not, the blower is defective.
You may want to try shock therapy to the blower motor. With the ignition switch to ON/RUN, the mode selector to any setting except OFF, and the blower speed switch to any speed - open the hood and tap the end of the blower motor with a blunt instrument. If the blower starts working it's defective.
.
