skid plate

Old 01-14-2016, 08:59 PM
  #1
Junior Member
Thread Starter

Join Date: Oct 2015
Posts: 89
Year: 1990
Model: Cherokee
Engine: 4.0
Default skid plate

hey guys i bought a factory skid plate for my jeep xj from a member here on the forum i tried looking online for pictures but only see aftermarket ones, does anyone know how to install it i cant seam to get the bolt holes to line up with anything is there hardware that im missing??
Mattloz is offline
Old 01-14-2016, 09:43 PM
  #2
CF Veteran

Turbo X_J's Avatar

Join Date: Sep 2009
Location: ☼ Blackhole Sun
Posts: 8,567
Year: My Jeep is a GMC
Default

Why not just contact the dude you bought it from?
Turbo X_J is offline
Old 01-14-2016, 10:01 PM
  #3
Senior Member

Join Date: May 2014
Location: Iroquois Ontario Canada
Posts: 946
Year: 1998
Model: Cherokee
Engine: 4.0
Default

Then there is the question of what skid plate you got, gas tank, transfer case, front end?
SG Mason is offline
Old 01-14-2016, 10:10 PM
  #4
Junior Member
Thread Starter

Join Date: Oct 2015
Posts: 89
Year: 1990
Model: Cherokee
Engine: 4.0
Default

Originally Posted by SG Mason View Post
Then there is the question of what skid plate you got, gas tank, transfer case, front end?
Transfer case skid plate and his mail was full last time
Mattloz is offline
Old 01-14-2016, 10:31 PM
  #5
Member

MtnGoat's Avatar

Join Date: Sep 2013
Location: NorCal
Posts: 150
Year: 1992
Model: Cherokee
Engine: 4.0
Default

I remember removing the one I got from an 87. Looking at it as it dropped,
I thought just how the heck will I remember how this goes back on?
That was about 5 years ago and it's gonna be a 6 pack Saturday to figure it out again..
MtnGoat is offline
Old 01-14-2016, 10:38 PM
  #6
Senior Member

jhc7399's Avatar

Join Date: Mar 2014
Location: Cincinnati, Ohio
Posts: 538
Year: 1999
Model: Cherokee
Engine: 4.0
Default

Not a 100% sure but I think you have to get some nut serts for the unibody rail side and drill some holes if you didn't have one from the factory.

Let me get under there tomorrow and take a look, will get back with you.
jhc7399 is offline
Old 01-14-2016, 11:12 PM
  #7
CF Veteran

jay_sco's Avatar

Join Date: Dec 2011
Location: IE (SoCal)
Posts: 1,080
Year: 1994 SE
Model: Cherokee
Engine: 4.0
Default

Need a nutsert, not sure what size, I've been meaning to check on that since I need to install mine too. I also believe it's just one bolt to the "frame" and two attach to the trans crossmember.
Google "home made nutsert tool" to save a few bucks, no need to buy a tool to install one single 'sert.
jay_sco is offline
Old 01-15-2016, 07:08 AM
  #8
Junior Member
Thread Starter

Join Date: Oct 2015
Posts: 89
Year: 1990
Model: Cherokee
Engine: 4.0
Default

Originally Posted by jay_sco View Post
Need a nutsert, not sure what size, I've been meaning to check on that since I need to install mine too. I also believe it's just one bolt to the "frame" and two attach to the trans crossmember.
Google "home made nutsert tool" to save a few bucks, no need to buy a tool to install one single 'sert.
I work at a mechanic shop so I probably have the tool here now I just need to figure out where exactly the bolts go
Mattloz is offline
Old 01-15-2016, 07:45 AM
  #9
Senior Member

jhc7399's Avatar

Join Date: Mar 2014
Location: Cincinnati, Ohio
Posts: 538
Year: 1999
Model: Cherokee
Engine: 4.0
Default

No tool needed, just a nut, washers and a nutsert.

http://www.blackmagicbrakes.com/uplo...structions.pdf
jhc7399 is offline
Old 01-15-2016, 08:15 AM
  #10
Senior Member

Join Date: May 2014
Location: Iroquois Ontario Canada
Posts: 946
Year: 1998
Model: Cherokee
Engine: 4.0
Default

Originally Posted by Mattloz View Post
Transfer case skid plate and his mail was full last time
Yes Nutserts are needed. Here is a screen capture of the install for a 98. I know the gas tank skids are different on 96 and older XJs, not sure about the TC skid plate.

Name:  tc_skid_zpsqtw4inoz.jpg
Views: 60
Size:  71.8 KB
SG Mason is offline
Old 01-15-2016, 08:58 AM
  #11
Seasoned Member

t.mcginley.jr's Avatar

Join Date: Aug 2015
Location: New Jersey
Posts: 395
Year: 2000
Model: Cherokee
Engine: 4.0L
Default

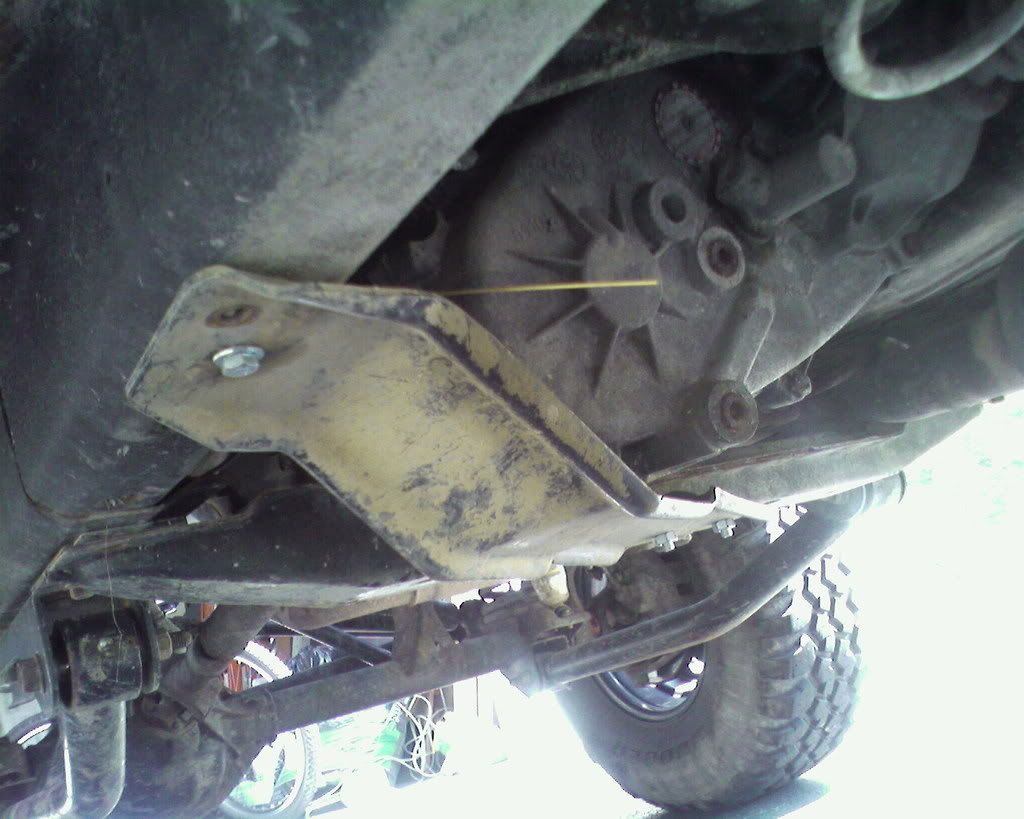

Adding pics from the interwebs:
