as for the extra wire sticking off the pos terminal its just there for a extra feed to something it is not used for a cherokee the cable was prob replaced at on time and the cable was for a different vechicle



i see. so im a dee dee dee lol. so, my question now is, how do i get it out of these things?



i would replace the valve and hoses follow them to where the attach and run new to new valve



sounds good. guess thats what ill do.



ok so im trying to change the thermostat while iv got the tubes off, and i cant seem to find a wrench that fits the bolt to take the cover off. anyone happen to know what the size is for those bolts?



Most all bolts on your XY are probably metric. I would guess a 13mm for the thermostat housing.

Your pulling issue would be a tire problem. You say the tires are junk and don't have any traction. The belts probably are shifting due to low tire thread. Move the two front tires to the other side and see if the vehicle pulls the other direction. If so its a tire problem and you need to replace them. If you took the XY back to the alignment shop and told them it's still pulling, they would swap the front tires to see if the pull moves to the other side.



ok, so, i'm pretty sure my only issue is a failure to do the thermostat change properly. that'll be taken care of today when somebody comes over to help. Any other suggestions on anything?



welp, iv replaced some wires, and enlisted the help of Ryan_Kelly to fix the massive coolant leak. now the only problem is i have what appears to be a bad battery! AAAAAUUUUUUGGGGGHHHH!!!!!!!!!!!



OOOOOOK, so it was a minor wiring issue, not the battery. So, with that out of the way, I've taken several new pictures of potential issues. here ya go:

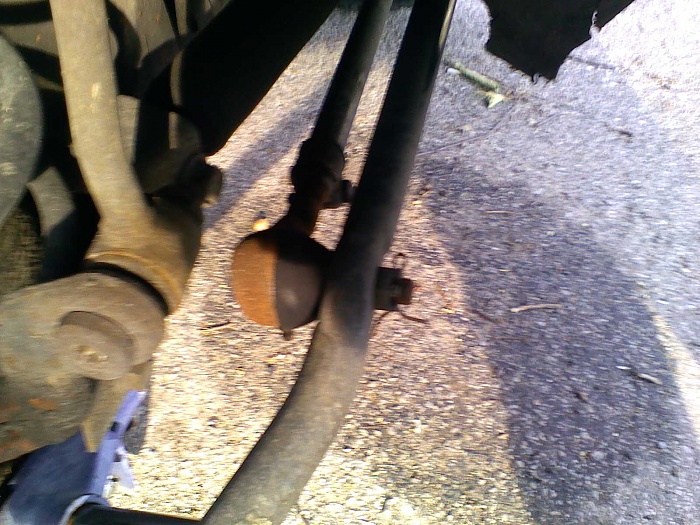

The first few are different angles of the parts on the right front suspension system and wheel/brake assembly. Any advice on what I can do to not make this so ugly, and possibly fix my death wobble/pulling issue would be wonderful.



ok, this continues my pictures of the suspension/wheel assembly. as well it includes a potential paint job on my wheels. As I was painting them, I realized a light coating a blue left a sky-and-clouds type effect on the wheel. What say my fellow Jeepers? Keep it or not?

And finally, my hinges on my doors. I went to go remove them, to discover that my hinges look nothing like the pictures I see on here in the threads telling how to remove them. WTF?



Not sure what you're asking for, but if ur wanting to clean the grease fitting on ur steering, a little gasoline on a rag will wipe it clean



I just wanted to let you know that since you have had all the same problems that I have had, you probably have massive rust holes in your floor pans. Sometimes the truth hurts!



I disagree. I used a cork gasket with a thin later of rtv on each side when I did mine. Installed correctly they work perfectly. Not a drop has leaked in over 8 months



as far as your issues,

I can't diagnose your problems via pictures, but I will tell you:
1) your sway bar bushings are totally shot
2) clean up your front suspension/steering with a wire brush and cloths. Inspect for cracked bushings and linkage boots. You can paint components the don't move much to improve how they look.
3) starting issue is most likely a bad ground. Check the ones at the rear of valve cover to firewall, and battery (-) to fender, and clean the contact points so you see bare metal. Also remove the starter and clean the contact surface at the block really well.
4) death wobble is from suspension/steering slop. Most likely is your trackbar bushings have gone bad. Kneel in front of the jeep and have someone turn the wheel left and right while you watch. If the body moves side to side before the wheels turn, your trackbar needs to be replaced. Also possible are bad ball joints, or bad tie rod ends.
5) the pulling to the side could be bad tires, mismatched tire pressure, dragging brakes, or failing wheel bearing.
6) to simplify things with the heater control valve, you can eliminate it completely like newer cherokees did. Just run new lines directly from the thermostat to the heatercore.

I live in Laurel so if you get really stumped on something send me a message and i'll see if I can come over or at least point you in the right direction



ok, so i flubbed on a repair. i replaced the VCG, and also took off and cleaned sludge off the rocker arm assemblies. but now there is a horrible tapping and rumbling. i forgot to set the no. 1 piston to tdc beforehand. how do i fix this?
