is the my external slave on ax15?
09-22-2011, 05:34 PM
#1
Senior Member
Thread Starter
Join Date: Feb 2010
Location: errrvre where
Posts: 681
Likes: 0
Received 1 Like
on
1 Post
Year: 1996
Model: Cherokee
Engine: I6 4.0L HO, JBA headers, 99 intake, #703 injectors
today i took the heep out for a test drive. i found out the wrong way that my clutch needed fluid. i filled it and it started leaking from what i think is the slave. it seems to be a bleed? im not quite sure. oh. its a 96.

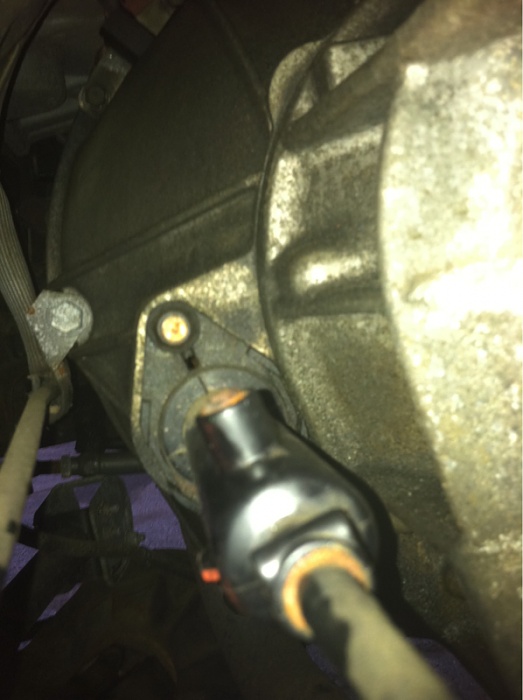

here are some pics. it seems to be leaking from the top of the thing. not quite sure. can anyone chimein?
thanks!
ps. sorry for the title. it autocorrected on my phone
here are some pics. it seems to be leaking from the top of the thing. not quite sure. can anyone chimein?
thanks!
ps. sorry for the title. it autocorrected on my phone
09-22-2011, 06:53 PM
#2
Senior Member
Join Date: Feb 2011
Location: Bel Air, Maryland 21015
Posts: 719
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1995
Model: Cherokee
Engine: 4.0
Looks like the external slave to me.
I do believe you will have to swap out both the Master and the Slave, they come shipped as a pre-bled unit.
I have one to put in mine as my master has a very very very slight leak back.
Two bolts hold the master, two hold the slave.
The only issue I can see in doing mine is the line from the master to the slave is run behind the brake booster so it needs to be loosened and pulled slighlty from the firewall to remove/install the master/slave assembly.
.
I do believe you will have to swap out both the Master and the Slave, they come shipped as a pre-bled unit.
I have one to put in mine as my master has a very very very slight leak back.
Two bolts hold the master, two hold the slave.
The only issue I can see in doing mine is the line from the master to the slave is run behind the brake booster so it needs to be loosened and pulled slighlty from the firewall to remove/install the master/slave assembly.
.
