major suspension bolt problems
01-09-2010, 02:29 PM
#1
Member
Thread Starter
Join Date: Nov 2009
Posts: 161
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
major suspension bolt problems

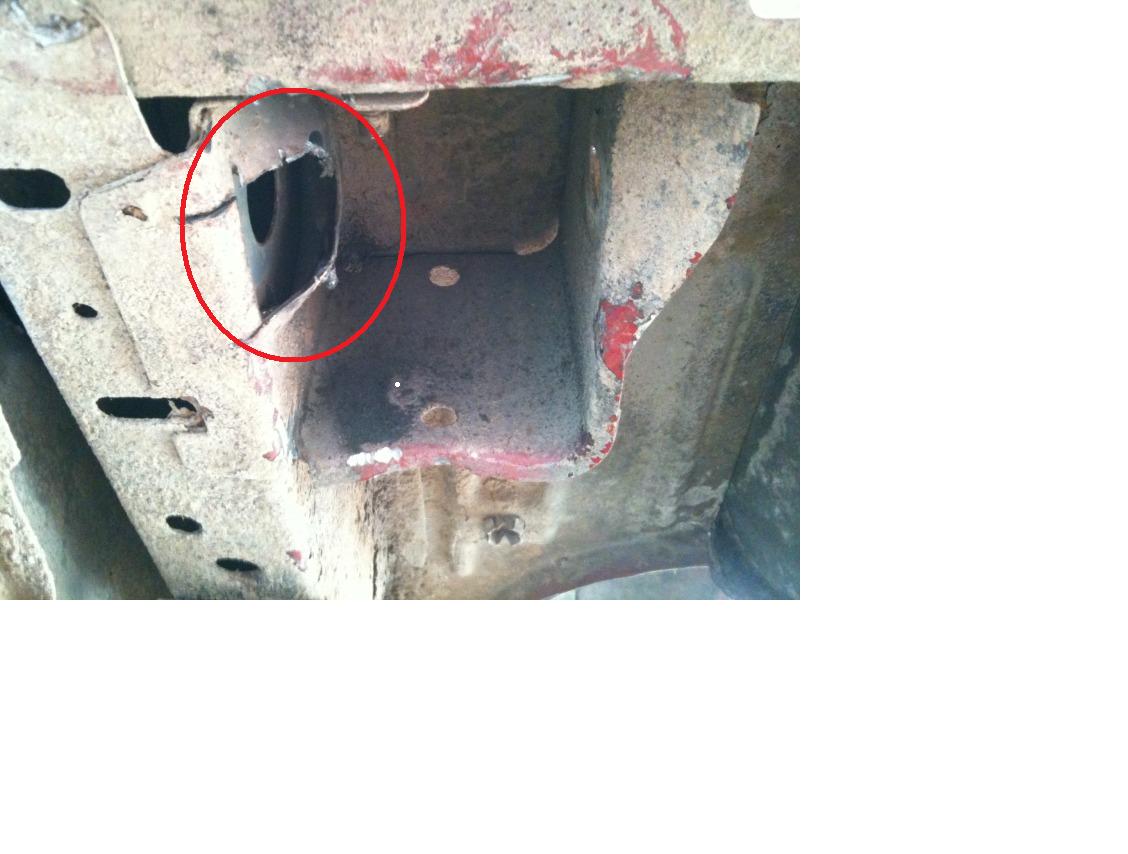

im installing a lift on my XJ and when my dad was trying to unbolt the springs the welded nut on the inside of the frame broke, so now we have a bolt with a nut inside the frame that just spins, so i cut through the bolt on the back side of the spring and got the spring out, now the only way to get the nut out was to cut a hole in the bottom of the section that comes out to the spring.
i proceded to move on to removing the shackels, the one side came out but once again the welded nut inside the frame broke loose, i cut the shackel out, cut the access hole and now its all messed up, and i need to reconstruct it somehow, ill post pictures, plz help this has got me down to the point that i just want to forget about this project
i proceded to move on to removing the shackels, the one side came out but once again the welded nut inside the frame broke loose, i cut the shackel out, cut the access hole and now its all messed up, and i need to reconstruct it somehow, ill post pictures, plz help this has got me down to the point that i just want to forget about this project
01-09-2010, 04:24 PM
#4
CF Veteran
Join Date: Jun 2009
Location: Columbus, Ohio
Posts: 2,173
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1997
Model: Cherokee
Engine: 4.0, comp cam, 99 intake, apn header, neon injectors, Thunderbolt 2.5" High Flow Cat
probably should've went through the floorboard for that one, huh?
01-09-2010, 04:46 PM
#5
Seasoned Member
Join Date: Apr 2009
Location: Nokomis FLA.
Posts: 330
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1992 2dr Sport 2wd & 1992 4dr Laredo 4x4
Model: Cherokee
Engine: 4.0 liter H.O.
looks like you're gonna need some welding & fab work there. Post a pic of your jeep
01-09-2010, 04:47 PM
#6
CF Veteran
Join Date: Jun 2009
Location: Columbus, Ohio
Posts: 2,173
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1997
Model: Cherokee
Engine: 4.0, comp cam, 99 intake, apn header, neon injectors, Thunderbolt 2.5" High Flow Cat
I believe the bracket can be removed where the front of the leaf spring mounts. dunno about at the shackle end though.
01-09-2010, 05:16 PM
#7
CF Veteran
Join Date: Sep 2009
Location: ☼ Blackhole Sun
Posts: 8,567
Likes: 0
Received 18 Likes
on
16 Posts
Year: My Jeep is a GMC
I'm afraid there is no easy fix for that. You'll have to tear out whats left and fab up some new spring mounts. Just remember that is a structural member and if the rear is not properly aligned it will dog track.
Trending Topics
01-09-2010, 05:35 PM
#9
Junior Member
Join Date: Dec 2009
Posts: 65
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4 liter
Get thee to a machine shop.
I can not quite make out what was done here. But it looks like you could have a machine shop fabricate a rectangular inside mounting plate.
01-09-2010, 05:42 PM
#10
Seasoned Member
Join Date: Dec 2009
Location: NW Oregon
Posts: 381
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1995
Model: Cherokee
Engine: 4.0 High Outout I6
01-09-2010, 05:43 PM
#11
Senior Member
Join Date: Apr 2009
Location: Grand Haven, Michigan
Posts: 922
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1998, 1999
Model: Cherokee
Engine: 4.0
Can you weld a new nut on the back side of the piece you cut out? Then weld it back in with a little additional bracing?
Do you have a welder? Where do you live, maybe someone can help you out. I'm on the west side of Michigan... have welder! Will travel if your near me!
Mike
Do you have a welder? Where do you live, maybe someone can help you out. I'm on the west side of Michigan... have welder! Will travel if your near me!
Mike
01-09-2010, 05:45 PM
#12
Seasoned Member
Join Date: Dec 2009
Location: NW Oregon
Posts: 381
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1995
Model: Cherokee
Engine: 4.0 High Outout I6
i think it was thefreaksfamilyxj build on here.. he fabbed up some sweet sliders to mount the leafs too... might be an option?
EDIT: found it! check out his rear suspension i think its on the first page
EDIT: found it! check out his rear suspension i think its on the first page
Last edited by Brett; 01-09-2010 at 05:49 PM.
01-09-2010, 06:16 PM
#13
Newbie
Join Date: Dec 2009
Location: Apple Valley, MN
Posts: 15
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0 H.O.
Can you weld a new nut on the back side of the piece you cut out? Then weld it back in with a little additional bracing?
Do you have a welder? Where do you live, maybe someone can help you out. I'm on the west side of Michigan... have welder! Will travel if your near me!
Mike
Do you have a welder? Where do you live, maybe someone can help you out. I'm on the west side of Michigan... have welder! Will travel if your near me!
Mike
