Losing vacuum, strange vacuum storage bottle
Hey all. I'm having a issue with vacuum fade under acceleration. I already checked for leaks and there are none. The idle isn't erratic and it starts just fine. It is down on power, and the mpg has gone to the floor. Every time I step on the skinny peddle my part time light goes off and my heater changes to defrost. I wonder could the vacuum storage bottle could be bad? Is there a check valve in the bottle that could be stuck open and allowing direct vacuum flow?
Also my vacuum bottle is different than any I have seen before. It has 2 hoses on it instead of 1, and it looks like a ball and less like a bean. Have any of you ever heard or seen any like this?

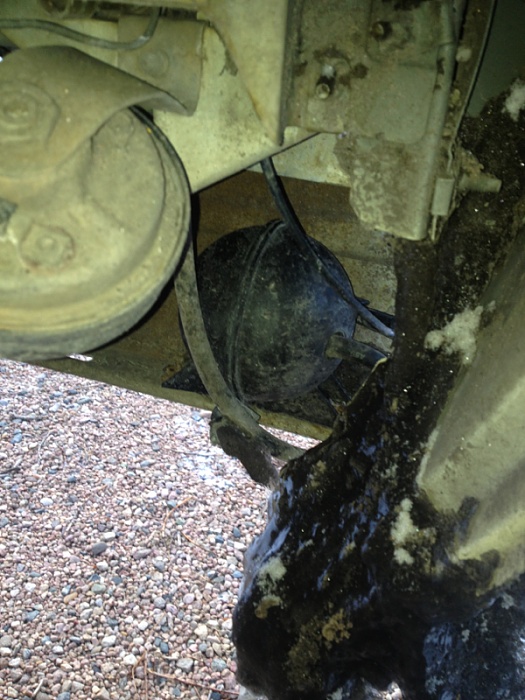

The hose set up.

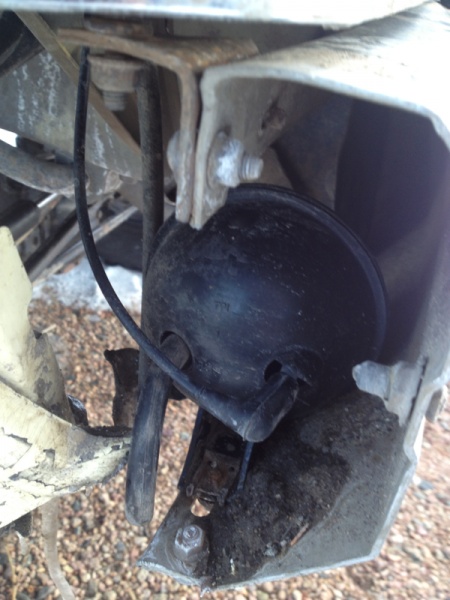

The shape.
Thanks
-John
Also my vacuum bottle is different than any I have seen before. It has 2 hoses on it instead of 1, and it looks like a ball and less like a bean. Have any of you ever heard or seen any like this?
The hose set up.
The shape.
Thanks
-John
#4
Junior Member
Join Date: Jan 2011
Location: Kansas City Missouri
Posts: 56
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L
Not trying to thread jack but my XJ is doing the same thing. So your saying that if I change out the storage ball it may fix the problem?
#6
Member
Thread Starter
Join Date: Dec 2010
Location: Monterey bay, CA
Posts: 202
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1990
Model: Cherokee
Engine: 4.0
Thanks guys. Now do they still make both reservoirs? Or just the single hose one? I only ask because I can only find the single hose style.
#7
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,875
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
I also relocate the ***** to the underside of the coolant bottle bracket on the rEnix Jeeps. Gets rid of about 8 feet of troublesome vacuum piping.
Trending Topics
#9
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,875
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
#10
Seasoned Member
Join Date: Oct 2009
Location: Murrieta, California
Posts: 407
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1991
Model: Cherokee
Engine: 4.0
see if you can borrow or purchase a hand vacum pump and start at the vacum ball and check vacum at every spot the a hose connects...on mine the plastic line running to the ball thru the front core support was rubbing ever so slightly...I checked that line from rt by the battery down to the ball and it had a small hole where it was rubbing on the core support...just a thought
Cameron
Cameron
#11
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,875
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
see if you can borrow or purchase a hand vacum pump and start at the vacum ball and check vacum at every spot the a hose connects...on mine the plastic line running to the ball thru the front core support was rubbing ever so slightly...I checked that line from rt by the battery down to the ball and it had a small hole where it was rubbing on the core support...just a thought
Cameron
Cameron
#13
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,875
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
#14
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,875
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0

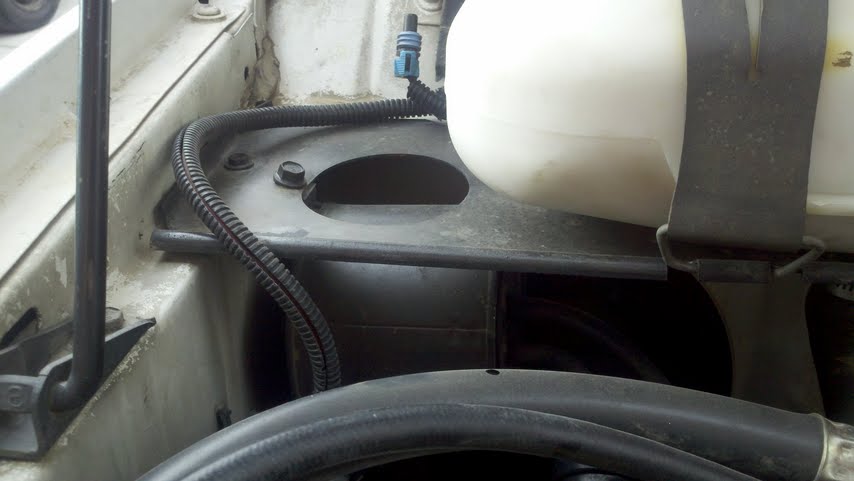

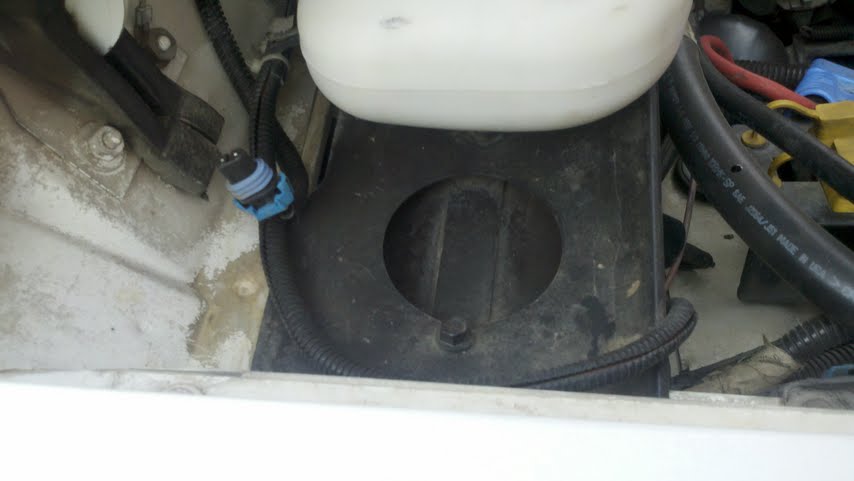

I'm feeling nice today. Keep in mind that my vacuum reservoir looks different as it's off a ford van. It's the same basic size and has the same mounting holes as the small ball reservoir.
#15
Member
Thread Starter
Join Date: Dec 2010
Location: Monterey bay, CA
Posts: 202
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1990
Model: Cherokee
Engine: 4.0
That looks pretty easy to do. I'm currently driving back home from Colorado to California and the jeep is acting up big time. I can only go 45ish up any grade and the tranny seems to bog down if I give it any gas at all, even if I drop out of overdrive.
I did check all the lines visually and using starting fluid while the engine was running. I tried switching the lines on the ball and also connecting the lines directly to each other. No change. I can't think of anything other than the ball. If I remove the small vacuum line I can hear the ball sucking air while the engine is running, idk if that is normal or not. I know it loses its vacuum as soon as I kill the engine because it should make a sucking noise when I disconnect the main line from it, and it doesn't.
I did check all the lines visually and using starting fluid while the engine was running. I tried switching the lines on the ball and also connecting the lines directly to each other. No change. I can't think of anything other than the ball. If I remove the small vacuum line I can hear the ball sucking air while the engine is running, idk if that is normal or not. I know it loses its vacuum as soon as I kill the engine because it should make a sucking noise when I disconnect the main line from it, and it doesn't.
