Leaking cerv
09-19-2012, 09:09 PM
#1
Member
Thread Starter
Join Date: Sep 2011
Location: Indianapolis
Posts: 125
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1995
Model: Cherokee
Engine: 4.0 HO inline six
Leaking cerv

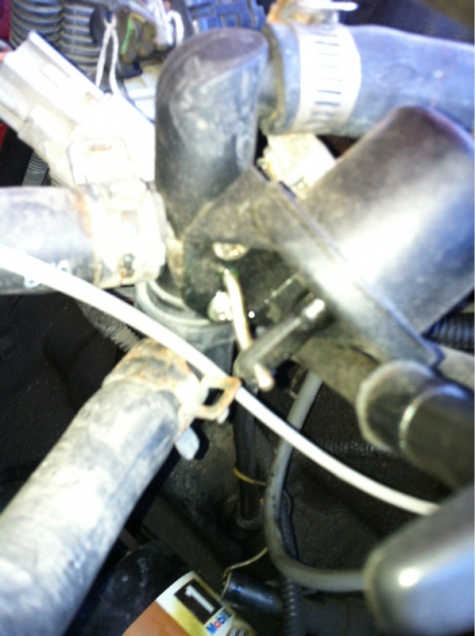

I notice a small puddle of anti freeze and found this leaking a bit and I had it professnally fixed and now it's leaking can anyone tell me why or how it's coming our of the screws and the little metal peice
09-20-2012, 01:18 PM
#2
Member
Heater Control Valve
Looks like your heater control valve is leaking. Here's a replacement:
http://www.partsgeek.com/catalog/199...ter_valve.html
http://www.partsgeek.com/catalog/199...ter_valve.html
09-20-2012, 04:55 PM
#4
CF Veteran
Join Date: Oct 2009
Location: Fauquier County, Virginia
Posts: 2,867
Likes: 0
Received 15 Likes
on
13 Posts
Year: 1991
Model: Cherokee
Engine: I-6 4.0 HO
I agree. Bypass it. All it does is redirect coolant flow around the heater core when the heater is not in use, which IMHO just allows the trapped coolant to stagnate. Just bypass it and make sure you plug the little vacuum hose connected on top of it.
Trending Topics
09-21-2012, 09:25 PM
#12
CF Veteran
Join Date: Nov 2010
Location: some small town oregon
Posts: 15,581
Likes: 0
Received 8 Likes
on
8 Posts
Year: 1989
Model: Cherokee
Engine: 4.0
Just a FYI for the people thinking that the 98 doesn't have a control valve your wrong. It's under the dash near the heater core.
Now that I said that just get rid of it for the winter time. Now I sat that cause in summer you will have coolant pumping thru the core causing a already hot freakin day even worse in your xj.
Why not replace? There not expensive. $30 is the most expensive one I found. Takes 15 min to swap. Paying for the molded hoses to "bypass" it is probably gonna be the same cost.
Now that I said that just get rid of it for the winter time. Now I sat that cause in summer you will have coolant pumping thru the core causing a already hot freakin day even worse in your xj.
Why not replace? There not expensive. $30 is the most expensive one I found. Takes 15 min to swap. Paying for the molded hoses to "bypass" it is probably gonna be the same cost.
09-21-2012, 09:32 PM
#13
CF Veteran
Join Date: Mar 2011
Location: California
Posts: 2,570
Likes: 0
Received 4 Likes
on
4 Posts
Year: 1992
Model: Cherokee
Engine: 4.0 HO
Just a FYI for the people thinking that the 98 doesn't have a control valve your wrong. It's under the dash near the heater core.
Now that I said that just get rid of it for the winter time. Now I sat that cause in summer you will have coolant pumping thru the core causing a already hot freakin day even worse in your xj.
Why not replace? There not expensive. $30 is the most expensive one I found. Takes 15 min to swap. Paying for the molded hoses to "bypass" it is probably gonna be the same cost.
Now that I said that just get rid of it for the winter time. Now I sat that cause in summer you will have coolant pumping thru the core causing a already hot freakin day even worse in your xj.
Why not replace? There not expensive. $30 is the most expensive one I found. Takes 15 min to swap. Paying for the molded hoses to "bypass" it is probably gonna be the same cost.
On the positive side removing it should at least help cool the coolant...
09-21-2012, 09:38 PM
#14
CF Veteran
Join Date: Nov 2010
Location: some small town oregon
Posts: 15,581
Likes: 0
Received 8 Likes
on
8 Posts
Year: 1989
Model: Cherokee
Engine: 4.0
Ok so I may be wrong on the 98 having it under the dash. Lol. It was a long day.
But also late Cherokees have a door that closes off the airflow to the core. Early ones don't.
But also late Cherokees have a door that closes off the airflow to the core. Early ones don't.
09-21-2012, 10:04 PM
#15
CF Veteran
Join Date: Mar 2011
Location: California
Posts: 2,570
Likes: 0
Received 4 Likes
on
4 Posts
Year: 1992
Model: Cherokee
Engine: 4.0 HO
I think they do. The vacuum actuator under the dash on the passenger side? At least my '92 and '96 had one. Not sure about any of my renix xj's.
