Installing 160 alternator question
Hello I am installing a new alternator on the jeep but the aftermarket alt is missing 2 studs that the black box connect to. Can I leave them off or are they grounds I need to wire some where else. Thanks ahead of time

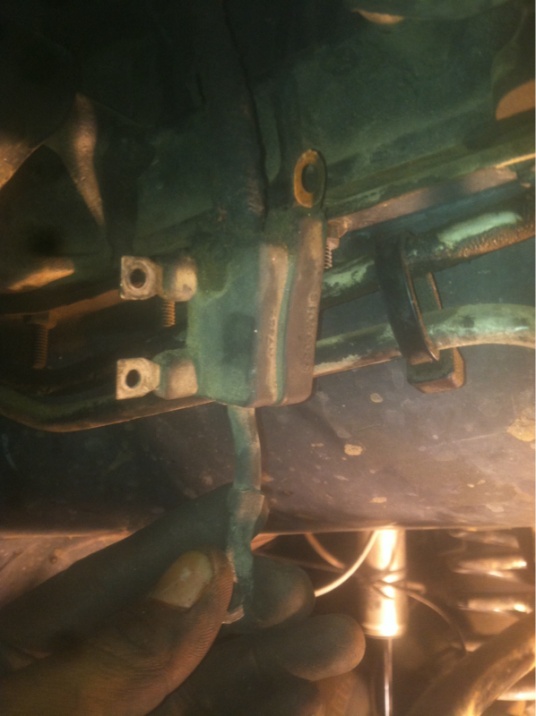

Black box

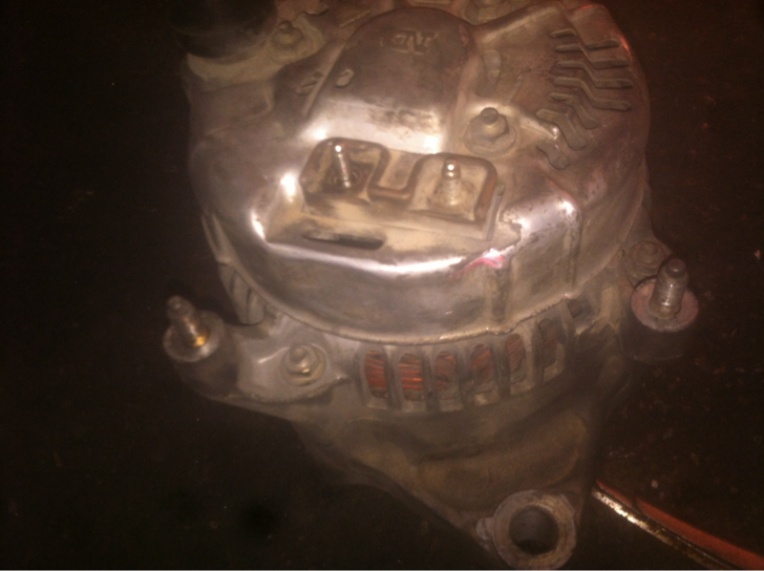

Two studs on bottom

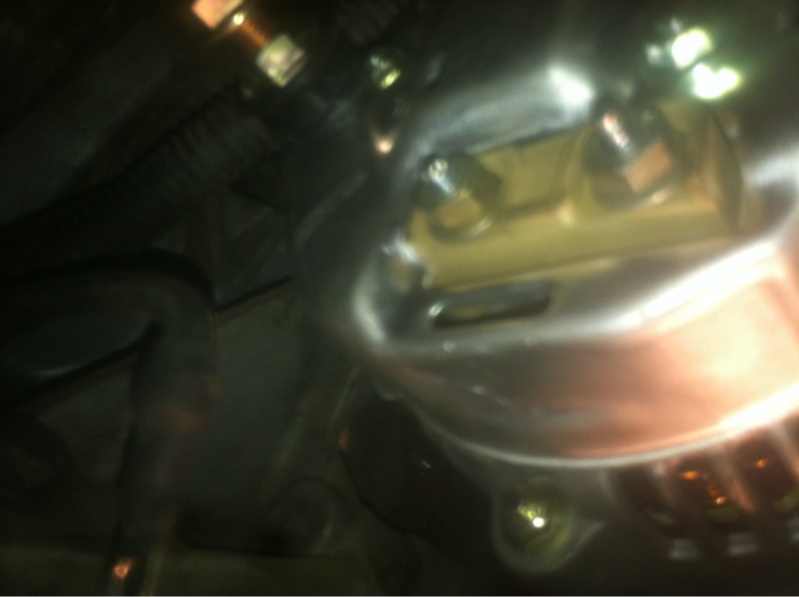

No studs
Black box
Two studs on bottom
No studs
02-21-2014, 09:04 AM
#5
Member
Thread Starter
Join Date: Jun 2013
Posts: 102
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
I have read that thread but the two wires on the outside is what I need to know if they r grounds. The box mounts on the new alt with just the two middle connectors on the box but the other two wires on the outside have no where to mount to
Trending Topics
02-21-2014, 09:27 AM
#9
Member
Join Date: May 2013
Location: Uniontown, PA
Posts: 184
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1995
Model: Cherokee
Engine: 4.0
You should be able to just ground one. When I went with a newer alt from a durango and did the plug swap I just wired the two little wires to the plug, and ran one of those wire to the alternator mount bolt. Worked fine.
02-21-2014, 09:31 AM
#11
Member
Thread Starter
Join Date: Jun 2013
Posts: 102
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
02-21-2014, 10:12 AM
#12
CF Veteran
Join Date: Oct 2013
Location: Tarpon Springs, FL / Denver, CO
Posts: 2,097
Likes: 0
Received 8 Likes
on
7 Posts
Year: '98
Engine: 4.0 I6
I made a jumper wire with 4 gauge wire, and used a bolt and washer to connect it to the ground eyelet on the factory harness. Then I just connected it to the frame. Ill grab you a picture in a few hours when I go to lunch.
Charges at 14.2v no matter what I throw at it.
EDIT:
Bigger battery cables are almost a requirement when going with a large alternator, and since I am pretty sure the alternator grounds primarily though the engine block, you should be fine after upgrading the battery wiring (Alt to Batt Positive wire, Batt negative to fender, and engine block ground to firewall)
Charges at 14.2v no matter what I throw at it.
EDIT:
Bigger battery cables are almost a requirement when going with a large alternator, and since I am pretty sure the alternator grounds primarily though the engine block, you should be fine after upgrading the battery wiring (Alt to Batt Positive wire, Batt negative to fender, and engine block ground to firewall)
Last edited by investinwaffles; 02-21-2014 at 10:14 AM.
02-21-2014, 06:59 PM
#14
Member
Thread Starter
Join Date: Jun 2013
Posts: 102
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
I made a jumper wire with 4 gauge wire, and used a bolt and washer to connect it to the ground eyelet on the factory harness. Then I just connected it to the frame. Ill grab you a picture in a few hours when I go to lunch. Charges at 14.2v no matter what I throw at it. EDIT: Bigger battery cables are almost a requirement when going with a large alternator, and since I am pretty sure the alternator grounds primarily though the engine block, you should be fine after upgrading the battery wiring (Alt to Batt Positive wire, Batt negative to fender, and engine block ground to firewall)
02-21-2014, 07:00 PM
#15
Member
Thread Starter
Join Date: Jun 2013
Posts: 102
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
I made a jumper wire with 4 gauge wire, and used a bolt and washer to connect it to the ground eyelet on the factory harness. Then I just connected it to the frame. Ill grab you a picture in a few hours when I go to lunch. Charges at 14.2v no matter what I throw at it. EDIT: Bigger battery cables are almost a requirement when going with a large alternator, and since I am pretty sure the alternator grounds primarily though the engine block, you should be fine after upgrading the battery wiring (Alt to Batt Positive wire, Batt negative to fender, and engine block ground to firewall)
