IGN Wire in the fuse panel???

Thread Tools

Search this Thread

Old 05-06-2012, 12:37 PM
  #1
Junior Member
Thread Starter

91XJBlackonBlack's Avatar

Join Date: Mar 2012
Location: Jackson, NJ
Posts: 59
Likes: 0
Received 0 Likes on 0 Posts
Year: 1991
Model: Cherokee
Default IGN Wire in the fuse panel???
ok, long story short i ****ed up and on my fuse panel under the dash i unplugged the wire that connects into the slot marked (IGN) to get my gauge fuse to work without popping immedietly. My question is what does that wire do? and where does it lead to?

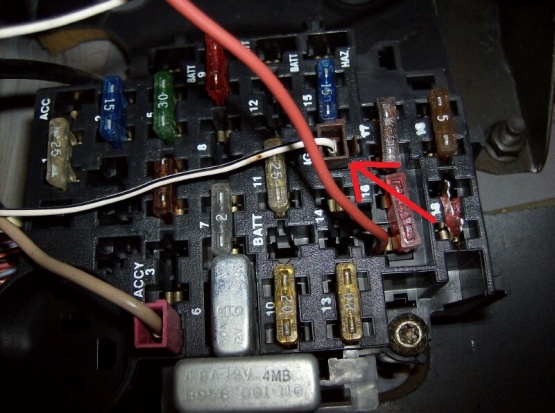

IGN Wire in the fuse panel???-cherokee-fuse-panel.jpg
