Jeep, Ride XJ

i just bought my 99 Cherokee and im the 3rd owner and i got it from a friend actually and the guy before him said it had both dana 35's under it. well factory the front is 30, and the rear is a dana 35 or 8.25.. and i cant see anywhere on the covers to see what they really and truly are or if me and my buddy was both feed bull crap. any suggestions?

hitalonit

look on rustys sight and go to faq they show pics of what to look for

hitalonit

http://rustysoffroad.com/mm5/merchan...egory_Code=faq heres the link scroll down for the pics

hope this helps

Diesel

Look at the back of the rear diff cover, does it have any flat part on the bottom? If yes, its the 8.25, no its the d35. This is the 8.25.

mark's91-XJ

they dont make a 35 for the front its a d30. the rear is ether a 35 or a 8.25 the 825 has a flat spot on the bottom and the top of the diff cover the 35 cover is oval

Jeep, Ride XJ

thanks for the help guys. i knew something wasnt right. liars these days.

Jeep, Ride XJ

mine is rounded on the bottom. so its a 35.

buckshot500

Another way to tell is the cover bolts are evenly spaced on an 8-1/4. On a D-35 the two bolts at 10 & 11 O'clock are closer together.

Jeep, Ride XJ

Whats really the main difference between a 8.25 and a d35?

96_xj

strength. plain and simple. the 8.25 with 29 spline shafts is comparable to a dana 44. the 35 is refered to as the Turdy-five for the fact that it is a weak axle... if you park next to a jeep with the 8.25 you will see how much smaller the axle tubes are.


like look at how the pinion is very well built

Jeep, Ride XJ

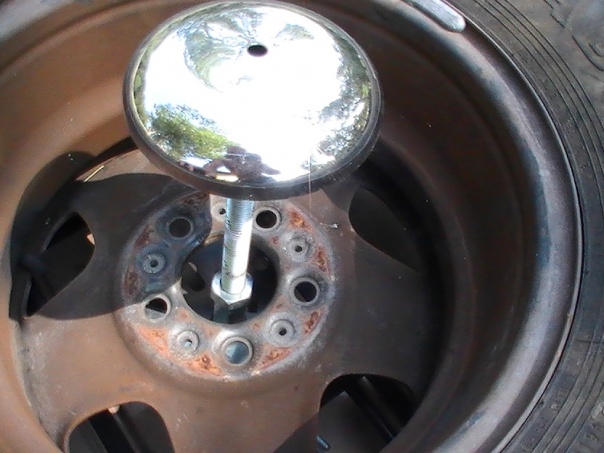

ahh, i see. i knew it was something like that just wasnt for sure, but im just now gettin into jeeps alot more, i got two of em. and thats all i ever owned. i know quite a bit just by being around im still learnin the little things. i also need advice on roof racks. the one thats on my jeep now is kinda stupid really, but i havent seen anything else like it. whats everyone runnin? mine is pretty cool. its got 4 u shaped bolts and it bolted to the cross bars on the top. in the center its got a plate thats threaded. put the center of ur tire over that plate and there is a shaft that screws down into that plate to hold the tire in place. then its got a square piece that screws on top on that shaft and ur 4-way goes on top of it and then a round lockin deal that clips over that square piece all down inside ur wheel locks and unlocks with key. its neat. ill post a pic so yall can see what i mean. but i just am startin to not like it. ive put lock nuts on everything and all, and its just a head ache cant really keep everything tight.

Jeep, Ride XJ

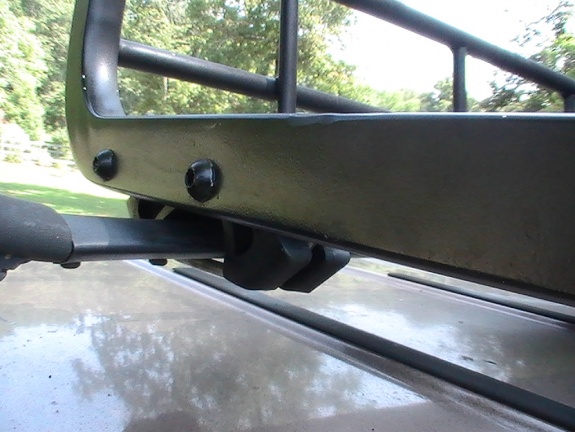

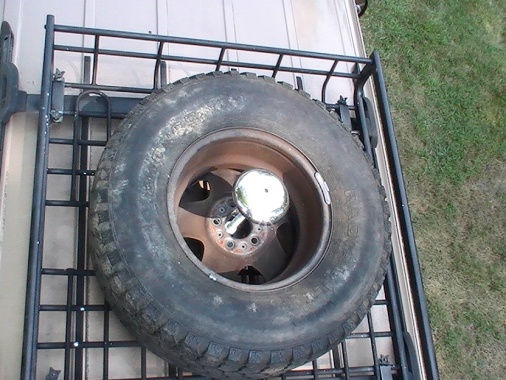

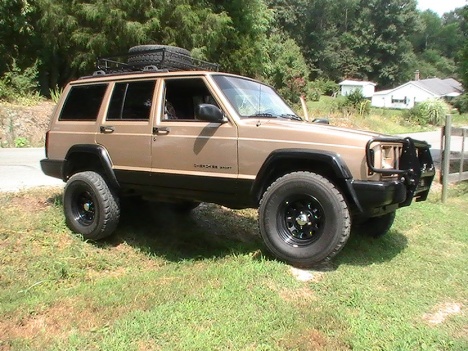

heres some pics of my roof rack. and one of my jeep

96_xj

wait. what exactly are you asking? keeping what tight?

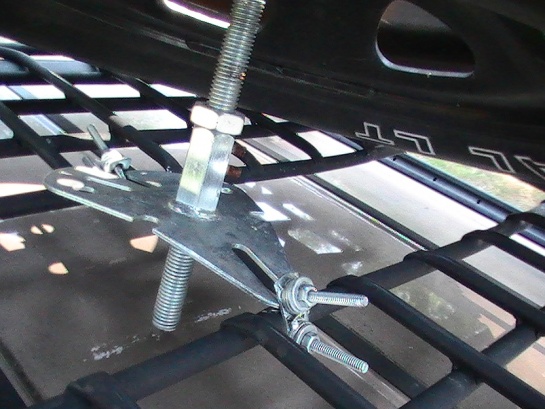

if you are talking about the u-bolts. get some red locktite, and a jam nut. Red locktite the first nut and crank it down. Then red locktite the jam nut and lock it down tight onto the first nut. You wont have an issue after that.


also it looks like your allthread piece is digging into your roof.....


also flip your tire over so the mounting surface is higher up so you can lock it down easier
