how do i take the knuckle off???

Thread Tools

Search this Thread

Old 12-24-2011, 06:16 PM
  #1
Junior Member
Thread Starter

99jeep4life's Avatar

Join Date: Dec 2011
Posts: 93
Likes: 0
Received 0 Likes on 0 Posts
Default how do i take the knuckle off???
I would like to know how yo take the tie rod knuckle off?? Thanks.

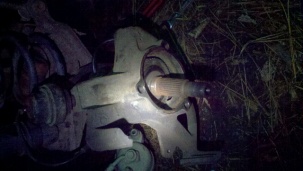

Attached Thumbnails how do i take the knuckle off???-forumrunner_20111224_181539.jpg   how do i take the knuckle off???-forumrunner_20111224_181602.jpg
99jeep4life is offline
Reply Like
Old 12-24-2011, 06:35 PM
  #2
Junior Member
Thread Starter

99jeep4life's Avatar

Join Date: Dec 2011
Posts: 93
Likes: 0
Received 0 Likes on 0 Posts
Default
I would preciate any help...
99jeep4life is offline
Reply Like
Old 12-24-2011, 07:56 PM
  #3
CF Veteran

claygrassmann's Avatar

Join Date: Dec 2008
Location: eaton ohio
Posts: 1,533
Likes: 0
Received 0 Likes on 0 Posts
Year: 93
Model: Cherokee
Engine: 4.0
Default
Remove nut from TRE beat the **** out the ear that the end fits in as to not damage the end and that will loosen it and just pull it out
claygrassmann is offline
Reply Like
Old 12-24-2011, 08:25 PM
  #4
Junior Member
Thread Starter

99jeep4life's Avatar

Join Date: Dec 2011
Posts: 93
Likes: 0
Received 0 Likes on 0 Posts
Default
The shaft is in the way.
99jeep4life is offline
Reply Like
Old 12-24-2011, 08:38 PM
  #5
CF Veteran

99 Purple XJ's Avatar

Join Date: Oct 2010
Location: Long Island N.Y.
Posts: 1,889
Likes: 0
Received 2 Likes on 2 Posts
Year: 1999
Model: Cherokee
Engine: I6 4.0
Default
If your trying to remove knuckle itself you have to remove the tierod theres three 12 point 13mm bolts behind the wheel hub you have to remove the caliper and rotor theres a big 36 mm bolt in the center you dont have to remove it to remove the shaft once the 13 mm bolts are removed take a hammer and you mite have to beatthe wheel hub off then theres 2 bolts inside on the ball joints take those off the. The knuckle should come off
99 Purple XJ is offline
Reply Like
Old 12-24-2011, 08:47 PM
  #6
Junior Member
Thread Starter

99jeep4life's Avatar

Join Date: Dec 2011
Posts: 93
Likes: 0
Received 0 Likes on 0 Posts
Default
Ya I got all that off the the two bolts (one on bottom and one on top) holding the knuckle on are in the way for it to come off.
99jeep4life is offline
Reply Like
Old 12-24-2011, 09:03 PM
  #7
CF Veteran

99 Purple XJ's Avatar

Join Date: Oct 2010
Location: Long Island N.Y.
Posts: 1,889
Likes: 0
Received 2 Likes on 2 Posts
Year: 1999
Model: Cherokee
Engine: I6 4.0
Default
Is it stuck on there try hitting it off and why are you taking the knuckle off? New ball joints?
99 Purple XJ is offline
Reply Like

Trending Topics

Old 12-24-2011, 10:10 PM
  #8
CF Veteran

Gorillaxj's Avatar

Join Date: Sep 2010
Location: Salt Lake City, UT
Posts: 4,968
Likes: 0
Received 0 Likes on 0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0L
Default
take the axle out, it wont drop down off the ball joints with it still in place.
Gorillaxj is offline
Reply Like
Old 12-24-2011, 10:25 PM
  #9
Junior Member
Thread Starter

99jeep4life's Avatar

Join Date: Dec 2011
Posts: 93
Likes: 0
Received 0 Likes on 0 Posts
Default
Ok how do I do that?
99jeep4life is offline
Reply Like
Old 12-25-2011, 12:40 AM
  #10
Junior Member
Thread Starter

99jeep4life's Avatar

Join Date: Dec 2011
Posts: 93
Likes: 0
Received 0 Likes on 0 Posts
Default
I guess I Have to take the diff cover off? And undo some bolts?
99jeep4life is offline
Reply Like
Old 12-25-2011, 12:52 AM
  #11
CF Veteran

mrfajita's Avatar

Join Date: May 2010
Location: Fort Collins, CO
Posts: 3,405
Likes: 0
Received 2 Likes on 2 Posts
Year: 1996
Model: Cherokee
Engine: 4.0L HO
Default
Just pull the shaft out, it slides right out
mrfajita is offline
Reply Like
Old 12-25-2011, 01:06 AM
  #12
Junior Member
Thread Starter

99jeep4life's Avatar

Join Date: Dec 2011
Posts: 93
Likes: 0
Received 0 Likes on 0 Posts
Default
Will I have to beat on it some?
99jeep4life is offline
Reply Like
Old 12-25-2011, 02:13 AM
  #13
CF Veteran

mrfajita's Avatar

Join Date: May 2010
Location: Fort Collins, CO
Posts: 3,405
Likes: 0
Received 2 Likes on 2 Posts
Year: 1996
Model: Cherokee
Engine: 4.0L HO
Default
If this is an XJ you are working on, it should just slide right out. Every time I've pulled D30 shafts they never needed any coaxing.
mrfajita is offline
Reply Like
Old 12-25-2011, 02:22 AM
  #14
Junior Member
Thread Starter

99jeep4life's Avatar

Join Date: Dec 2011
Posts: 93
Likes: 0
Received 0 Likes on 0 Posts
Default
Ya its an XJ. The shaft ain't wanting to come out. It wills come out about an inch then stop.
99jeep4life is offline
Reply Like
Old 12-25-2011, 02:44 AM
  #15
Junior Member
Thread Starter

99jeep4life's Avatar

Join Date: Dec 2011
Posts: 93
Likes: 0
Received 0 Likes on 0 Posts
Default
Ok finally got it. Thanks.
