Hose Replacement

Thread Tools

Search this Thread

Old Dec 19, 2019 | 04:47 PM
  #1
Ambe55's Avatar
Thread Starter
Newbie

Joined: Dec 2019
Posts: 5
Likes: 0
From: Southwest Arizona
Year: 2001
Model: Cherokee (XJ)
Engine: 4.0
Default Hose Replacement

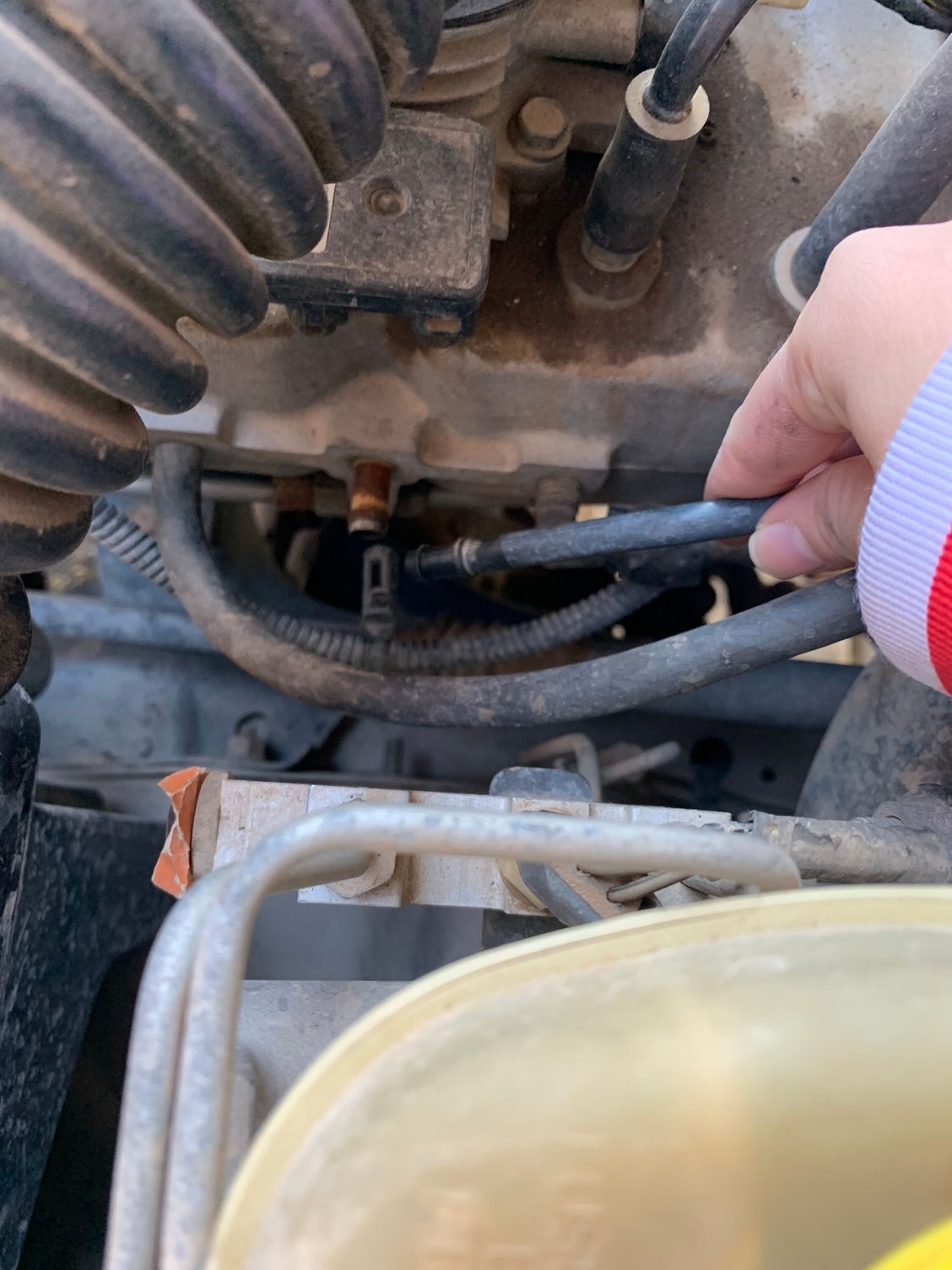

I am not sure what hose this is on my Cherokee XJ, but I need to replace it. What hose is this called and the thing you attach it to?

Reply
Old Dec 19, 2019 | 05:02 PM
  #2
tech's Avatar
CF Veteran

Joined: Jun 2016
Posts: 2,138
Likes: 278
From: Santa Clarita California
Year: 2001
Model: Cherokee (XJ)
Engine: 4.0L
Default

Those are sometimes hard to find new in the size you need , I get them a the junk yard off other cars most will have them so you can find some good ones .
Reply
Old Dec 19, 2019 | 05:20 PM
  #3
Ambe55's Avatar
Thread Starter
Newbie

Joined: Dec 2019
Posts: 5
Likes: 0
From: Southwest Arizona
Year: 2001
Model: Cherokee (XJ)
Engine: 4.0
Default

Originally Posted by tech
Those are sometimes hard to find new in the size you need , I get them a the junk yard off other cars most will have them so you can find some good ones .
what is the hose called?
Reply
Old Dec 19, 2019 | 05:47 PM
  #4
dave1123's Avatar
Old fart with a wrench

Joined: Nov 2010
Posts: 14,398
Likes: 740
From: Manlius, east of Syracuse, NY
Year: 2000 XJ Sport & WJ Laredo
Model: Grand Cherokee (WJ)
Engine: 4.0L
Default

I believe that hose is part of the evaporative purge system and probably goes to the canister purge pump or the carbon canister itself. Right now, it's a vacuum leak!
Reply
Old Dec 20, 2019 | 01:43 AM
  #5
Ralph77's Avatar
CF Veteran
10 Year Member

Joined: Oct 2015
Posts: 7,517
Likes: 1,626
Year: 2000
Model: Cherokee (XJ)
Default

Your shot is not the best but here goes nothing.
So I am guessing you have 3 nipples on the side of the intake manifold.
What year is your Jeep and is it Federal Emissions or CA Emissions?
Is there a check valve looking thing on that hard plastic line you are holding in your hand?
If so does it look something like this?

https://shop.advanceautoparts.com/p/...E&gclsrc=aw.ds

If not and it is just hard plastic line I am guessing that it goes in the nipple on the side of the intake manifold closest to the radiator.
And if that is true just go to the auto parts store, get a short length of hose (3" maybe) that fits somewhat securely on the plastic line and attach it to that nipple.
Usually there is a an elbow there. Which might or might not be the one in your hand.
I really need to see a shot of that area just a little wider, and clearer, to make out what you are missing.
Reply
Old Dec 22, 2019 | 03:00 PM
  #6
patrickh's Avatar
Newbie

Joined: Dec 2019
Posts: 4
Likes: 0
From: Salina, Kansas
Year: 1987
Model: Comanche (MJ)
Engine: 4.0 6cyl
Question Hose Replacement

Where does the other end of the hose go?

Reply
