hooray more electrical problems on my 87 xj
I went to start it now power. And by no power is. All dead all the gauges work. Lights turn on. I also replaced the starter its two days old. New batterie and alternator.. New ignition tumbler and ignition switch.. I'm told its my starting relay.? Need help asap
01-21-2014, 09:34 PM
#2
CF Veteran
Join Date: Oct 2011
Location: Bakersfield CA
Posts: 1,268
Likes: 0
Received 1 Like
on
1 Post
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
If it is the starter relay that is located just next to the battery. It is a smallish silver box loomed to the elec harness, with the short lead coming off the battery.
Trending Topics
01-22-2014, 09:18 PM
#9
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,872
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Here it is:
01-22-2014, 09:19 PM
#10
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,872
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
This?
01-23-2014, 09:31 AM
#11
CF Veteran
Join Date: Jul 2013
Location: Monett, MO.
Posts: 7,554
Likes: 0
Received 14 Likes
on
14 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
If you do not own a DMM go buy one they are cheap and can be bought online or any parts store for around $10 up to a $1000 or better. I use mine often mostly for radio electronics but used a lot on race cars and now Jeeps, mine and my sons. Mine is a mid priced unit only a $150 Fluke my son has a $25 one I gave him and works fine for what he does,
This really is a tool everyone should have in the shop or in the house just like a screwdriver, that useful.
This really is a tool everyone should have in the shop or in the house just like a screwdriver, that useful.
01-24-2014, 09:22 AM
#14
Member
Thread Starter
Join Date: Jul 2011
Location: Puerto Rico
Posts: 119
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1988
Model: Cherokee
Engine: 4.0 L (242 CID) AMC 242 I6
I found the problem. I few cables from the relay burn. I weld them and heatshrink the cables. Now I need to figure the cable's position
01-24-2014, 09:01 PM
#15
CF Veteran
Join Date: Aug 2011
Location: Nor-Cal Coast
Posts: 10,489
Likes: 0
Received 17 Likes
on
17 Posts
Year: 90,84
Model: Cherokee
Engine: 4.0,2.5

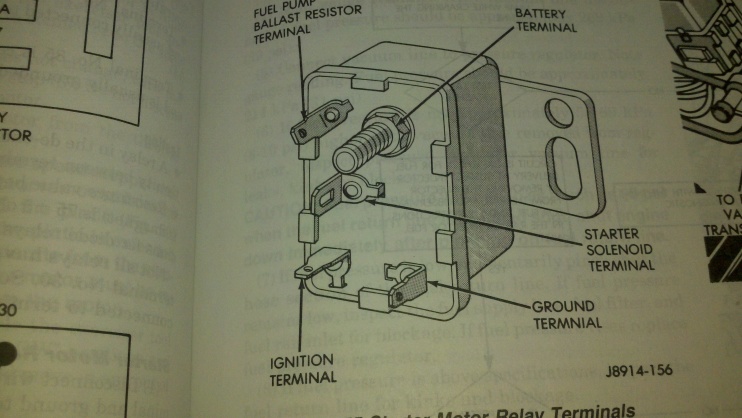

I don't understand the question. The green solonoid wire, (sort if in the middle in the picture in post #10) goes from there to the starter...
(btw, you soldered, the wires, then used shrink tube) ("Cable", we use for larger, like for the battery to starter ect...) Hope you got her going!
(btw, you soldered, the wires, then used shrink tube) ("Cable", we use for larger, like for the battery to starter ect...) Hope you got her going!
Last edited by DFlintstone; 01-24-2014 at 09:06 PM.
