Is this hole on the side of my engine block normal?? PICS
#1
Junior Member
Thread Starter
Join Date: May 2015
Location: Long Island
Posts: 53
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0 I6
Is this hole on the side of my engine block normal?? PICS

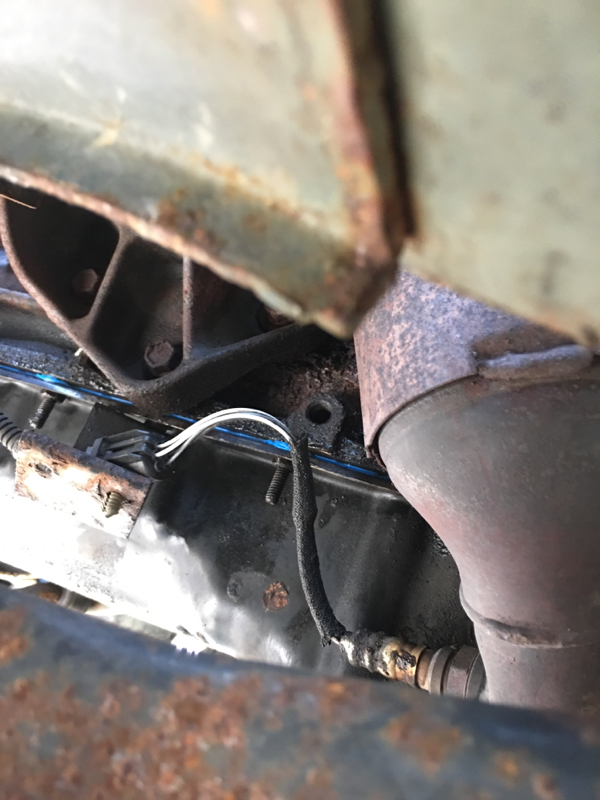

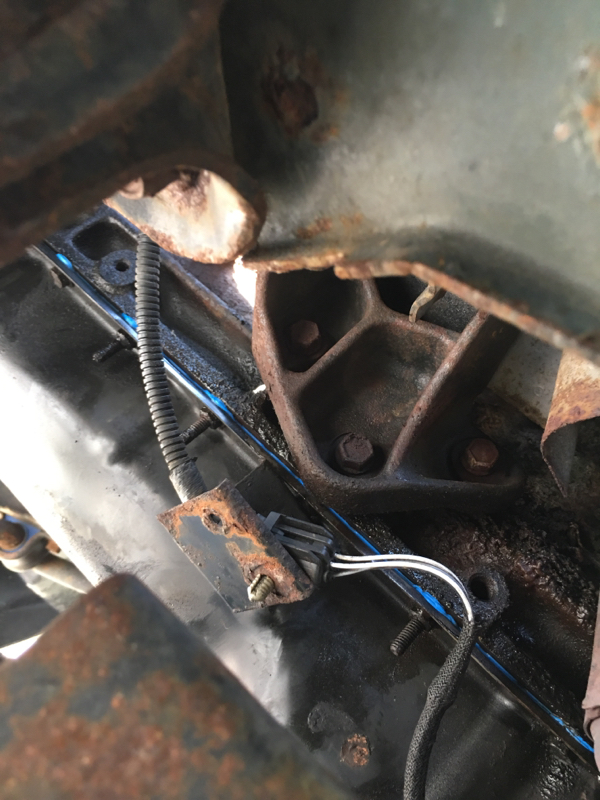

So we are on the left side of the engine block down by the oil pan gasket right next to the exhaust manifold there are two holes that are threaded and the one closer to the rear is larger. My question is, are these supposed to be open like in the picture? Or is this possibly why i woke up this morning to a 3" oil spot below my tranny bell housing the day after having my oil pan gasket replaced.
Ive had no oil spots on driveway even before changing the oil pan gasket. I cleaned away the area around rear main seal and took truck for a drive only to find that area remain clean. So I'm wondering where this 3" oil spot could have originated from. Thank-you for your time!
P.s. The app wont let me upload the second picture that shows the smaller hole in the front.. I will try and edit after i post this.
Ive had no oil spots on driveway even before changing the oil pan gasket. I cleaned away the area around rear main seal and took truck for a drive only to find that area remain clean. So I'm wondering where this 3" oil spot could have originated from. Thank-you for your time!
P.s. The app wont let me upload the second picture that shows the smaller hole in the front.. I will try and edit after i post this.
#3
Senior Member
Join Date: Mar 2014
Location: Eastern Long Island, NY
Posts: 952
Received 55 Likes
on
50 Posts
Year: 1996
Model: Cherokee
Engine: I6 Cyl / 4L
I think those are the extra mounting bolt holes of the engine block. Three are being used by the bracket and the extra two are there just in case.
Some after market brackets use them for more support.
Some after market brackets use them for more support.
#5
Junior Member
Thread Starter
Join Date: May 2015
Location: Long Island
Posts: 53
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0 I6
Okay, that makes me feel better. Thank-you for clarifying that for me!!! Now I just need to figure out why Im leaking oil the day after my oil pan gasket was replaced by a professional.
#7
Junior Member
Thread Starter
Join Date: May 2015
Location: Long Island
Posts: 53
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0 I6
I did both of those myself and i've crossed them off the list. It's possible my small power steering pump leak could be masking some of it. Oh well, only time will tell..
Trending Topics
#9
Junior Member
Thread Starter
Join Date: May 2015
Location: Long Island
Posts: 53
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0 I6
I told them I wanted to replace the rear main but he advised me not to (if it wasn't leaking too bad when he got up in there) because, and I quote "the success rate is 50% when fixing the rear main due to a groove being worn into the crank by the old seal". He went on by saying it could make my leak worse with a new seal... Long story short he didnt touch it but i feel as though the rear main may be leaking more after the oil pan was put in. I will be a hawk these next few days...
#10
Senior Member
Join Date: Dec 2012
Location: Midwest
Posts: 638
Likes: 0
Received 14 Likes
on
14 Posts
Year: 1998
Model: Cherokee (XJ)
Engine: 4.0L
Sounds more like a tech who had a bad time putting one in and now won't do it again. I've heard more success stories than I have otherwise here on the forum. At any rate good luck
#11
Seasoned Member
good to know I've completed a 50/50 job with 100% success in my driveway. take it back and at least get the pan gasket leak fixed!
