Hole in my np242

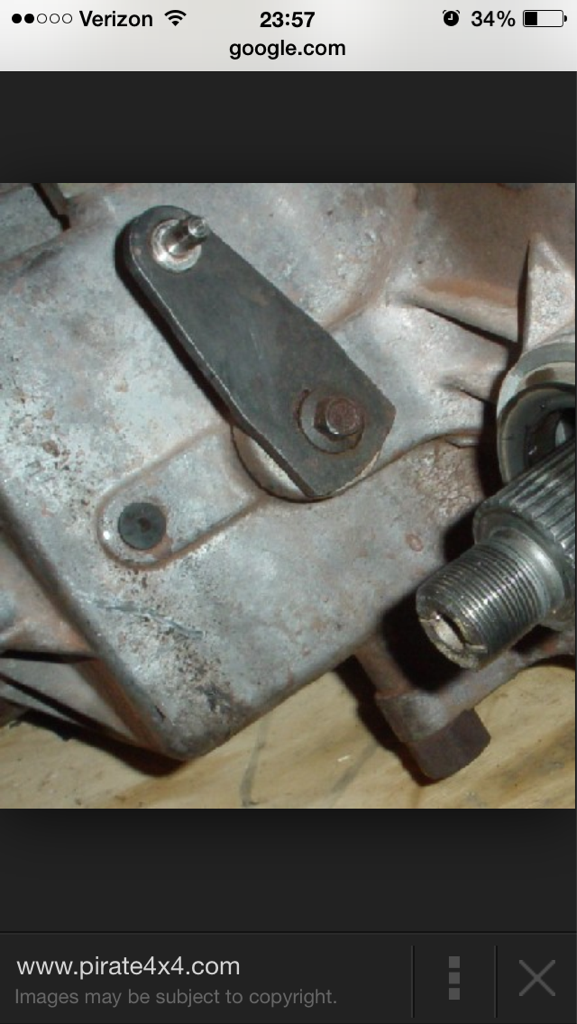

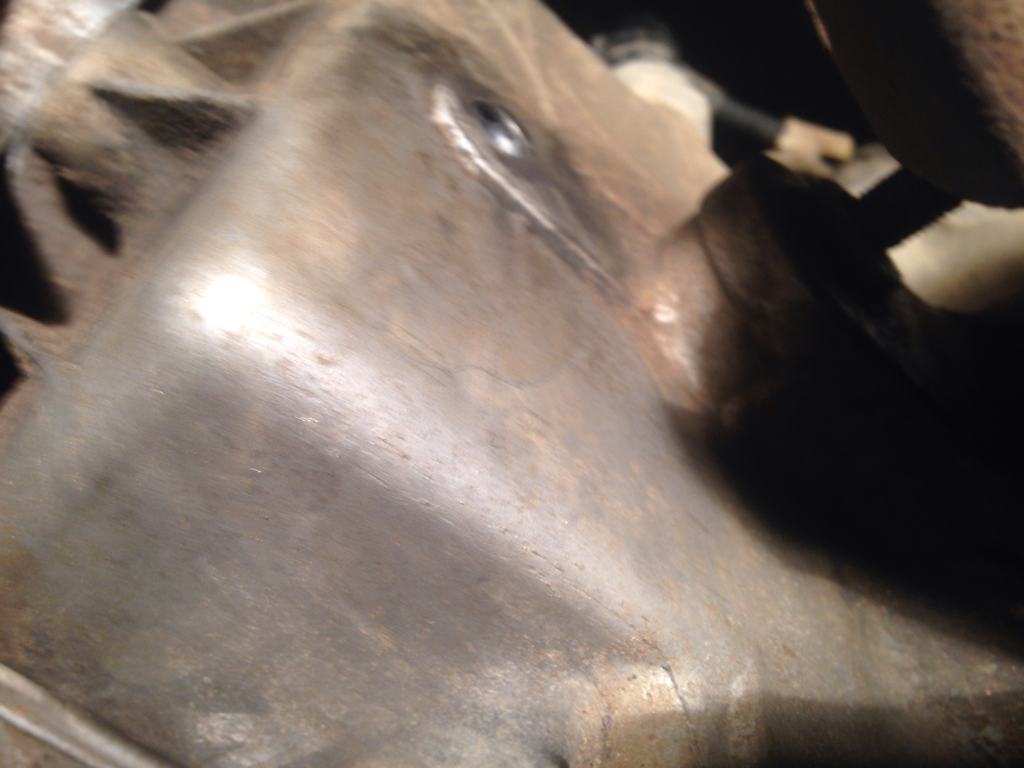

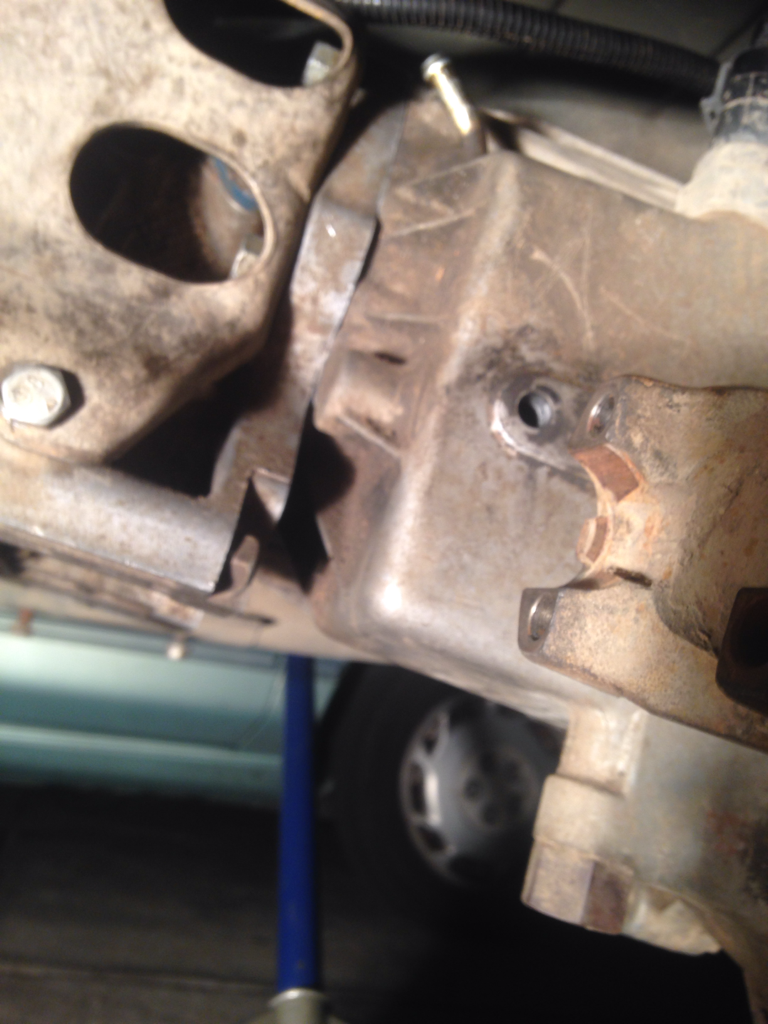

I have a 2000 Jeep Cherokee with an NP242. Replacing it I noticed a hole next to the link connection (Driver side) in between the transfer case housing and the front differential yoke. Not as clean as this okay has anyone seen this before. ? Did I lose a vent hose? Thanks for the responses in advance
#4
Member
Thread Starter
Join Date: Jul 2014
Location: Central Colorado
Posts: 143
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0 H.O soon 4.7
#5
Member
Join Date: Feb 2014
Location: Richmond TX
Posts: 105
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
yeah, you need to get a plug for it..i dont believe it will pour out, considering the top off point for the fluid, but it will slosh out will driving..it is an open hole
#6
Member
Thread Starter
Join Date: Jul 2014
Location: Central Colorado
Posts: 143
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0 H.O soon 4.7
Do you know where I could get one I have been looking online and maybe I am using to specific keywords. It's pretty small maybe 8mm maybe smaller
#7
Member
Join Date: Feb 2014
Location: Richmond TX
Posts: 105
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee

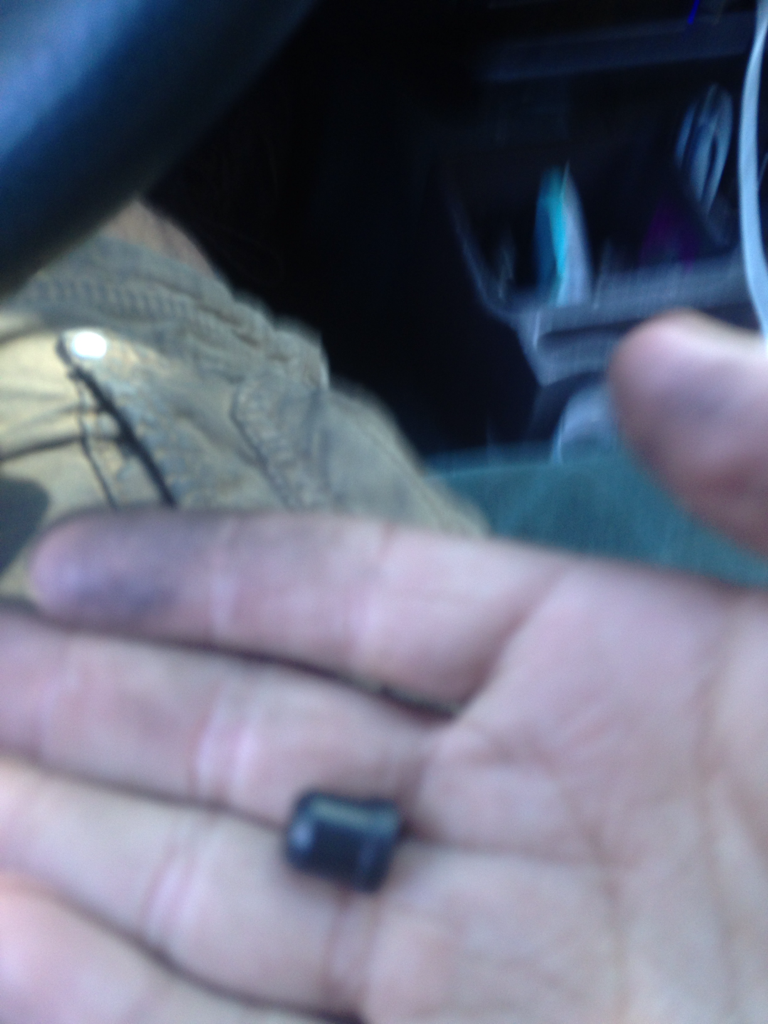

Tell you the truth, i just rebuilt my transfer case and the new kit came with one..you can have my old one, the only problem is i wont he home until Monday and i need to find it..but if you can wait then ive already got envelopes at the house.. just would need the info on a place you'd want me to ship it..up to you though if you can wait
Trending Topics
#8
Member
Thread Starter
Join Date: Jul 2014
Location: Central Colorado
Posts: 143
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0 H.O soon 4.7
Tell you the truth, i just rebuilt my transfer case and the new kit came with one..you can have my old one, the only problem is i wont he home until Monday and i need to find it..but if you can wait then ive already got envelopes at the house.. just would need the info on a place you'd want me to ship it..up to you though if you can wait
#10
CF Veteran
Join Date: Aug 2010
Location: Canton, MI
Posts: 8,357
Likes: 0
Received 82 Likes
on
67 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
Arizona Parts claims they have 7 of them
OEM part number 0015105.
I tried a few Mopar parts on-line stores using that part number and they don't list it, so I think the dealer won't recognize that part number either.
The part number comes out of several years of XJ pars catalogs.
AZ parts:
http://arizonaparts.com/partslist.asp
Note that the plug is 3/8" x .5". Before you get the actual part you may try getting a rubber plug from a hardware with those dimensions and install it with a bit of transmission fluid resistant RTV.
#11
Arizona Parts claims they have 7 of them
OEM part number 0015105.
I tried a few Mopar parts on-line stores using that part number and they don't list it, so I think the dealer won't recognize that part number either.
The part number comes out of several years of XJ pars catalogs.
AZ parts:
http://arizonaparts.com/partslist.asp
Note that the plug is 3/8" x .5". Before you get the actual part you may try getting a rubber plug from a hardware with those dimensions and install it with a bit of transmission fluid resistant RTV.
OEM part number 0015105.
I tried a few Mopar parts on-line stores using that part number and they don't list it, so I think the dealer won't recognize that part number either.
The part number comes out of several years of XJ pars catalogs.
AZ parts:
http://arizonaparts.com/partslist.asp
Note that the plug is 3/8" x .5". Before you get the actual part you may try getting a rubber plug from a hardware with those dimensions and install it with a bit of transmission fluid resistant RTV.
#12
Newbie
Join Date: Mar 2009
Location: San Diego
Posts: 28
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee(XJ)
Engine: 4.0
So the shop that I had do my flex plate replacement found that plug was missing and I was down to about a 1/2 quart of fluid. He tapped it for 1/8" pipe thread and put a pipe plug into it. No worries about some rubber plug falling out anymore.
Just another idea.
Just another idea.
#13
CF Veteran
^^^ not a bad mod to tap it like that.... keeps it in...and can still unscrew it for the rare occasion you need to.
