Hey! im back.. and got a new question
i need a the firing order on the 88 cherokee.
I changed the distributor cap and rotor and put the wires on the cap wrong, and now i can figure out how to fix it!
I changed the distributor cap and rotor and put the wires on the cap wrong, and now i can figure out how to fix it!
12-01-2008, 06:03 PM
#2
CF Veteran
Join Date: Mar 2008
Location: South Side Chicago
Posts: 2,088
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1992, 2- 1998 (All 3, 4 Doors)
Model: Cherokee
Engine: 4.0L in all
1-5-3-6-2-4
Dist. Rotation: CW
Looking at the cap from the front:
#1 at 9 o'clock
#5 is at 11 o'clock
#3 is at 1 o'clock
#6 is at 3 o'clock
#2 is 4 o'clock
#4 is at 7 o'clock
Dist. Rotation: CW
Looking at the cap from the front:
#1 at 9 o'clock
#5 is at 11 o'clock
#3 is at 1 o'clock
#6 is at 3 o'clock
#2 is 4 o'clock
#4 is at 7 o'clock
Last edited by BowtieGuy3; 12-02-2008 at 02:28 AM. Reason: reorganized f.o. for clarity
12-01-2008, 08:44 PM
#6
Junior Member
Thread Starter
Join Date: Sep 2008
Posts: 47
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1988
Model: Cherokee
Engine: 4.0L I6
So from the front of the inline 6 is cylander 1 then it goes in order 123456? till number 6? the last cylander?
im trying to figure this out i need to by 4 pm est tomorrow i work then...
im trying to figure this out i need to by 4 pm est tomorrow i work then...
Trending Topics
12-02-2008, 10:39 AM
#8
Junior Member
Thread Starter
Join Date: Sep 2008
Posts: 47
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1988
Model: Cherokee
Engine: 4.0L I6
Im Still having problems. my cap is not marked with thre number1 cylander. i found online a picture of the 4.0 with the disty right next to it and its got the screw points on it but they are like 45 degress off of what mine are..
Edit
http://autorepair.about.com/library/...l-fo-11329.htm
This is what i found
Edit
http://autorepair.about.com/library/...l-fo-11329.htm
This is what i found
Last edited by 88PioneerOlympic; 12-02-2008 at 10:43 AM.
12-02-2008, 11:16 AM
#10
CF Veteran
Join Date: Mar 2008
Location: South Side Chicago
Posts: 2,088
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1992, 2- 1998 (All 3, 4 Doors)
Model: Cherokee
Engine: 4.0L in all

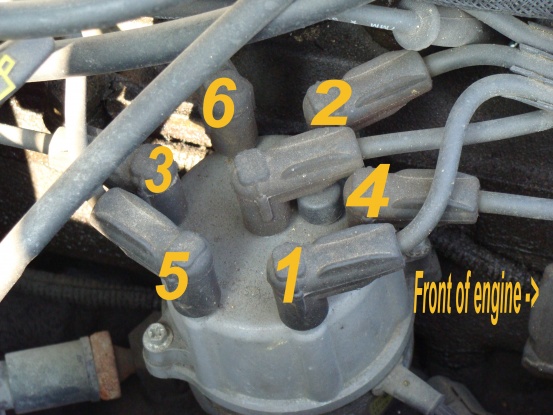

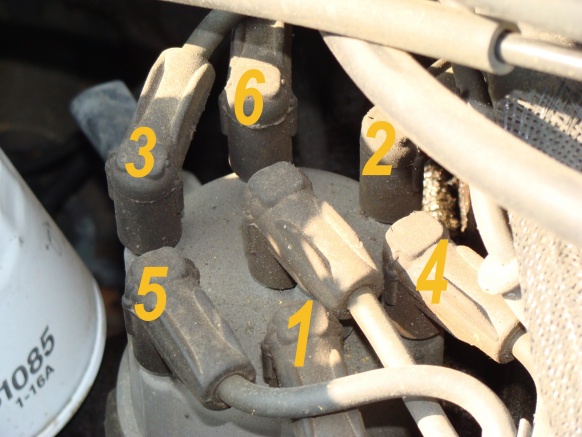

Hmm....that's the same diagram they had in the fact. svc. manual that I was looking at. Lemme take a pic of my 92 C&R and I'll label #1. Gimme a few mins.
