help removing pitman arm nut
#1
CF Veteran
Thread Starter
Join Date: Aug 2010
Location: Carlisle, PA
Posts: 1,678
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: Inline 6
#2
Newbie
Join Date: Nov 2010
Location: Dickson TN
Posts: 15
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee

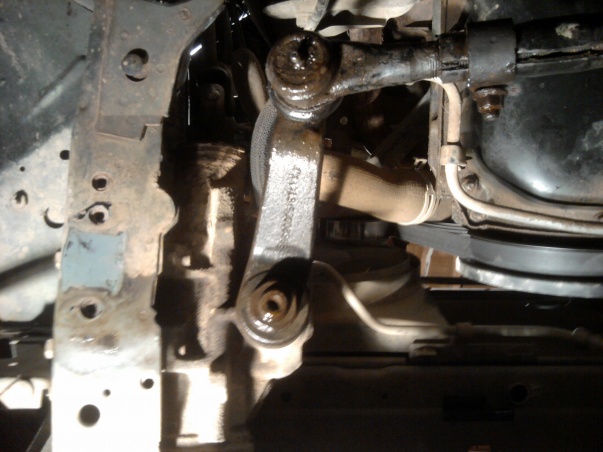

how do you remove this bolt. its massive, i think its around 30-35mm. does anyone know the exact size of it so i can get a 1/2 socket thats the correct size.
Attachment 30836
Attachment 30836
#4
CF Veteran
Thread Starter
Join Date: Aug 2010
Location: Carlisle, PA
Posts: 1,678
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: Inline 6
#6
CF Veteran
Thread Starter
Join Date: Aug 2010
Location: Carlisle, PA
Posts: 1,678
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: Inline 6
great. i rented a $90 heavy duty pitman arm remover from auto zone, hopefully it works and i have a air gun that has 350 ft lbs of torque, if that doesnt get it off, time to go get the expensive 650ft lbs of torque gun
Trending Topics
#8
CF Veteran
Thread Starter
Join Date: Aug 2010
Location: Carlisle, PA
Posts: 1,678
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: Inline 6
#9
CF Veteran
Thread Starter
Join Date: Aug 2010
Location: Carlisle, PA
Posts: 1,678
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: Inline 6
#10
Member
Join Date: Nov 2010
Location: Tooele, Utah
Posts: 239
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
When I pulled them off the chevy trucks I always had too put a pitman arm puller and maxed out my TI2135 1/2 drive impact and put tension on it. Then I had to heat them up with a propane torch untill it popped. I know heat isn't good on steering parts but by keeping all the force on the puller I used the minimum amount of heat on them. I measured how hot it actually got and it was only around 200 degrees.
#12
CF Veteran
Join Date: Sep 2009
Location: Grand Prairie, Texas
Posts: 1,142
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1998
Model: Cherokee
Engine: 4.0 HO I6
1 5/16" I think it is....but big pipe wrench or big crescent will work. And yeah, try tapping around on the arm and the shaft while you put pressure with the puller.
