help identifying connections??

Thread Tools

Search this Thread

Old Jun 11, 2019 | 10:34 PM
  #1
Druak's Avatar
Thread Starter
Newbie

Joined: Jun 2019
Posts: 15
Likes: 1
From: idaho
Year: 1996
Model: Cherokee (XJ)
Engine: inline 6
Default help identifying connections??

** If this is the wrong thread, let me know where to post it and I will move it....I am new**

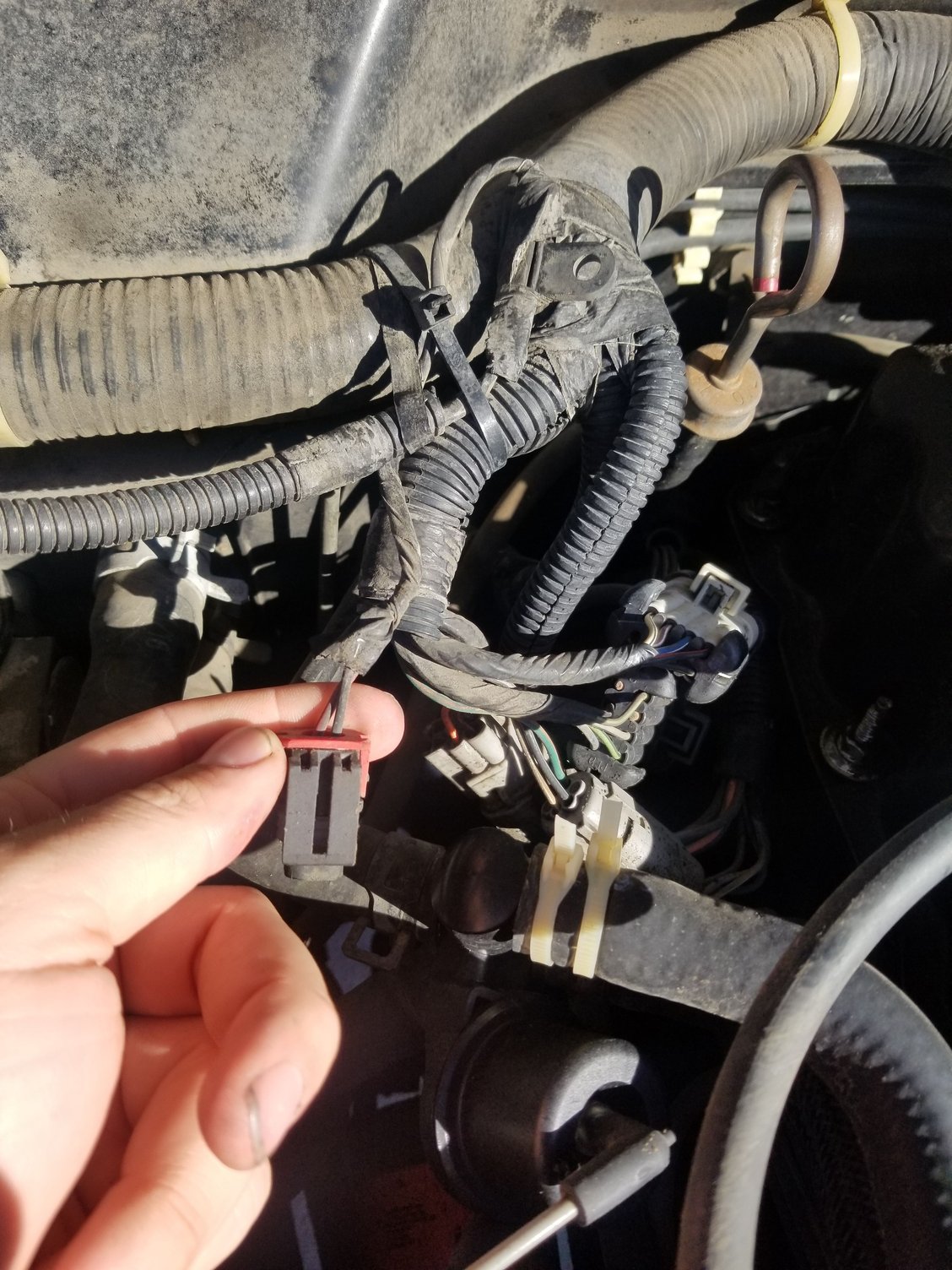

I just bought a 1996 Cherokee SE well cleaning the engine bay and just doing in-depth look over I noticed 2 electrical connections not plugged in... I drove it to work this morning and there was no issue and no lights..

My concern is I have no warning lights or something else may not be working right because these 2 are not connected right.

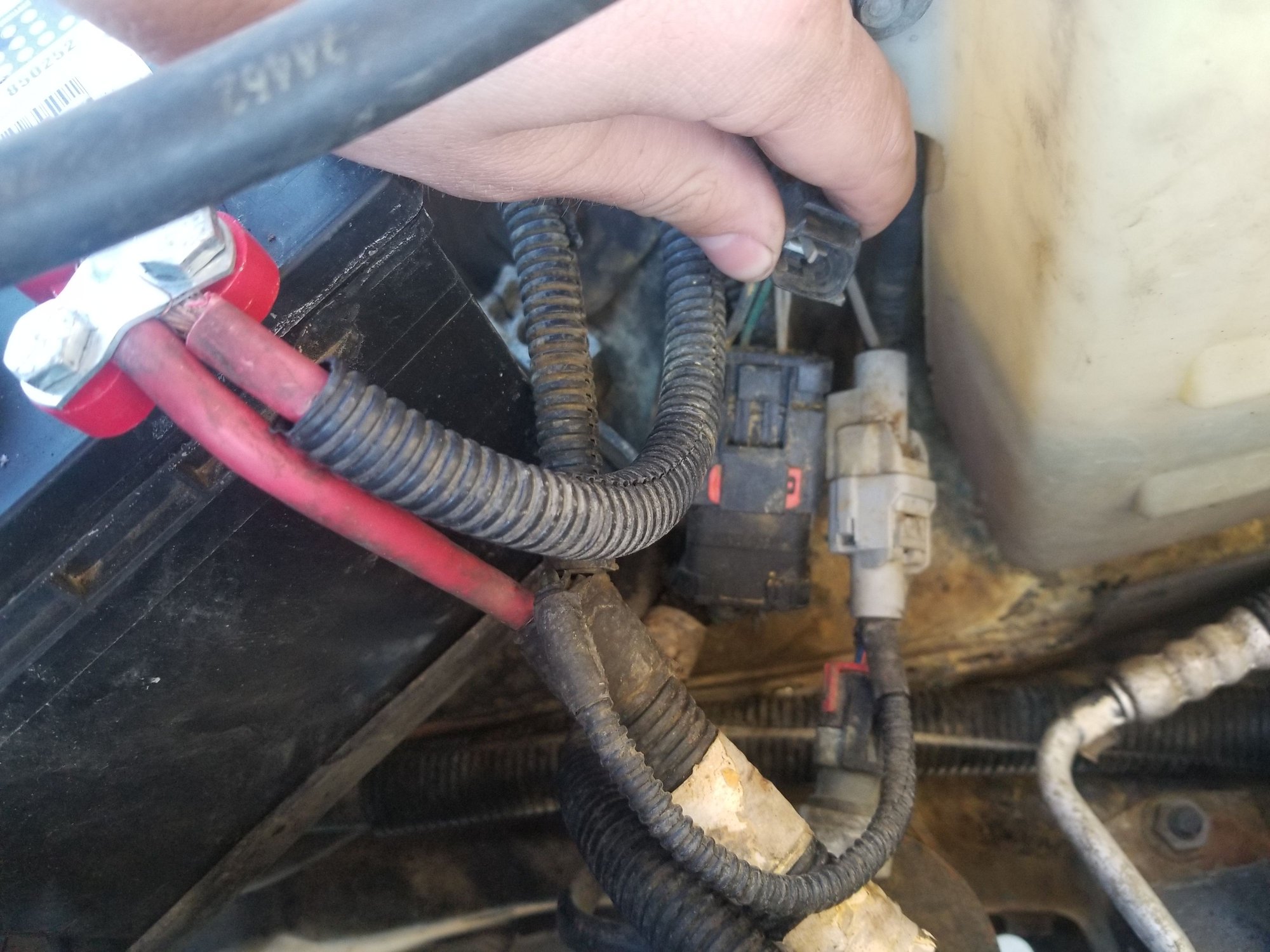

This is between the fuse box and the coolant overflow container.
---------------------------------------------------------------------------------------------------

This is back against the firewall coming out of the large bundle... Looked like the previous owner had zip tied it curled up to the bundle to keep it out of the way originally.
Reply
Old Jun 11, 2019 | 11:12 PM
  #2
Druak's Avatar
Thread Starter
Newbie

Joined: Jun 2019
Posts: 15
Likes: 1
From: idaho
Year: 1996
Model: Cherokee (XJ)
Engine: inline 6
Default

Found the answer to the second picture...it's for a Underwood lamp.

<link to cherokeeforum post on it>
Reply
Old Jun 12, 2019 | 12:10 AM
  #3
peligro113's Avatar
Senior Member
10 Year Member

Joined: Feb 2015
Posts: 514
Likes: 15
From: South Georgia
Year: 1996
Model: Cherokee(XJ)
Engine: 4.0l
Default

I think the first picture is the cruise control connector
Reply
Old Jun 12, 2019 | 12:12 AM
  #4
Druak's Avatar
Thread Starter
Newbie

Joined: Jun 2019
Posts: 15
Likes: 1
From: idaho
Year: 1996
Model: Cherokee (XJ)
Engine: inline 6
Default

Originally Posted by peligro113
I think the first picture is the cruise control connector
I saw that on a diagram but my cruise control is working perfectly. Thxs for the reply.
Reply
