Hella 500's+mounts

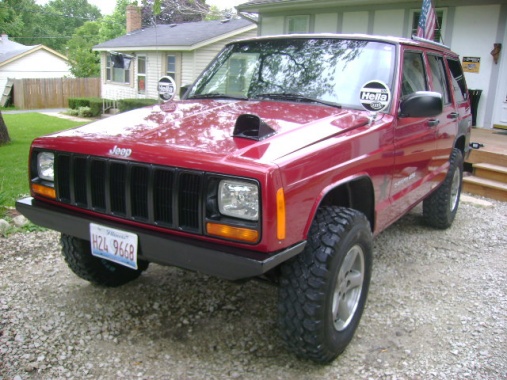

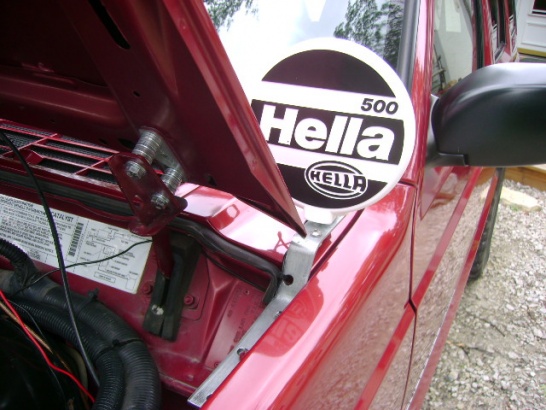

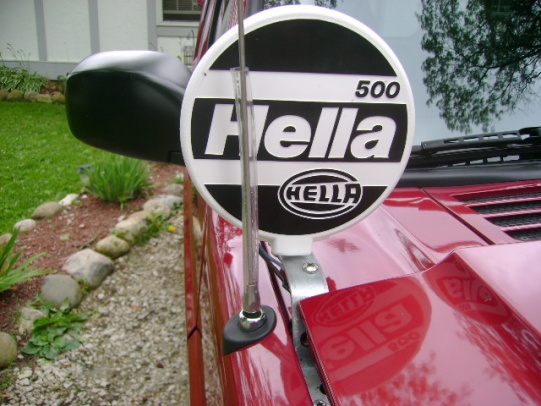

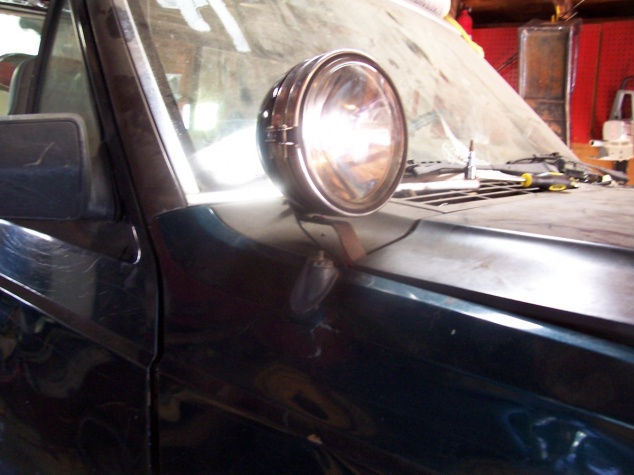

I snagged these Hella 500's for $50 on ebay(wiring harness kit too). Anyway, I liked the Howler pillar mounts, but was not too keen on drilling holes in my pillars and possibly compromising the water tightness of my cab(no offense Howler). So, being a constant thinker, I bought these 6"x6" L brackets from home depot. I re-bent them to an S shape and am using the bolt from the front fender+ a ss sheetmetal screw to hold em' in place. I have my hood shimmed, but with a lil' creativity it might work with a non shimmed hood. There is a lil' sheetmetal tab on the firewall that has to be cut with tin snips and folded back. I love the look and can't get over how bright the Hellas are! I couldn't be happier! All comments welcome and appreciated...even decapitation ones!(shimmed hood)
#3
Member
Thread Starter
Join Date: Mar 2009
Posts: 222
Likes: 0
Received 1 Like
on
1 Post
Year: 1999
Model: Cherokee
Engine: I6 4.0L
Thanks man! These lights will burn the retinas out of the deers eyes. I can't imagine having 5 or more of these bad boys. Don't even use my brights anymore. I'd like to get another set eventually.
#4
Member
Join Date: Feb 2009
Posts: 187
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0 L Inline 6

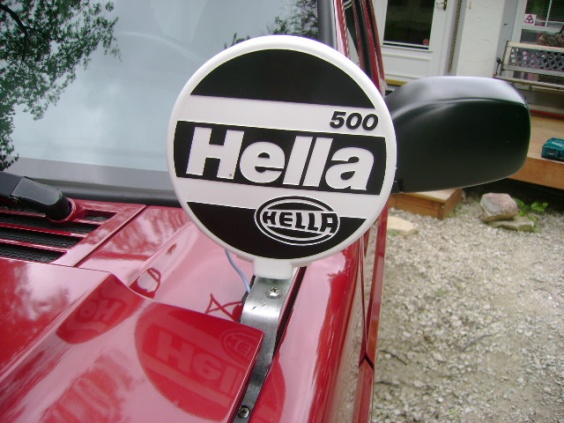

Yeah man I love my hellas too!...do you have the regular ones...or the 500FF's...i got the FF's but im sure the other ones are just as bright, here is a pic of mine
#6
Member
Thread Starter
Join Date: Mar 2009
Posts: 222
Likes: 0
Received 1 Like
on
1 Post
Year: 1999
Model: Cherokee
Engine: I6 4.0L

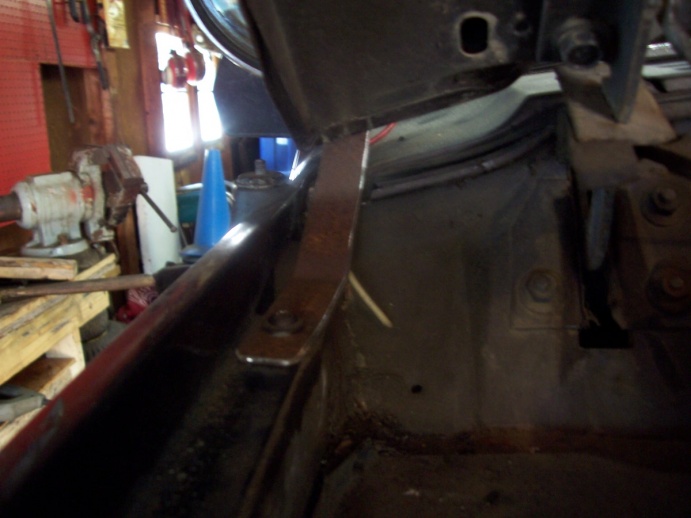

The lights are 500 regs. What does the ff stand for? They were easy to fab. I put em' on the ground like an a-frame to spread em', sledged em' til I had the right slant/angle, put em' in a vise and whacked the bracket the opposite way. I then had to do the usual fit,alter,fit,alter,etc.. They are stable too.
Trending Topics
#8
Junior Member
Join Date: Apr 2009
Posts: 92
Likes: 0
Received 0 Likes
on
0 Posts
Year: 99 xj
Model: Cherokee
Engine: 4.0L

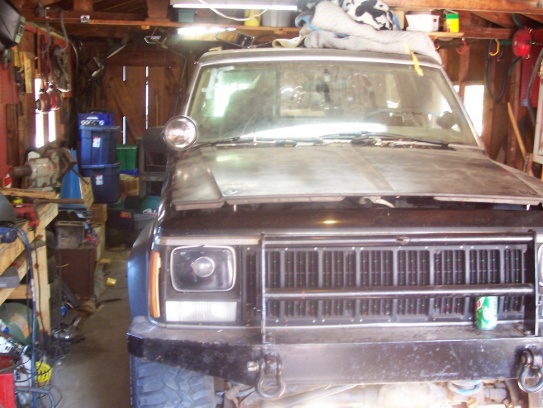

wow this is the greatest thing since sliced bread! ive been thinking about a way to something like this .as the new winch bumper doesnt have tabs ,i could weld some on but . dont want to cover the rad .. the winch will cover some of the grill .. great mod man !!!
#9
CF Veteran
Join Date: Jun 2009
Location: Michigan
Posts: 2,128
Received 287 Likes
on
237 Posts
Year: 1987 MJ, 1998 XJ, 1973 J2000, 89 waggy
Model: Comanche (MJ)
Engine: 4.0L H.O

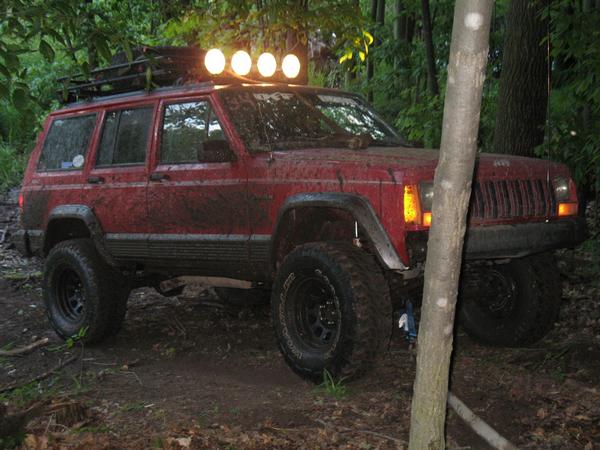

not too bad of a setup i'm running 4 on the rack.. prolly gonna copy your setup if you don't mind but i will totally give props to you if some of my buddies ask about it.... don't worry i'm not an idea pirate haha lol
i'll tell ya one of mine that i came up with...

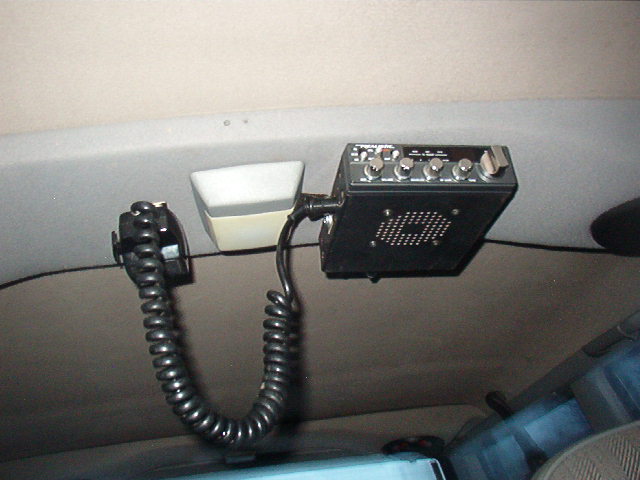

take a rear speaker bar and install it toward the front of the headliner....where the other cab light is.. right above the seats.. performs great, delivers great sound....
you could have taked a cut-off wheel and just notched a 1" slice from the hood intsead of completely leaving the back-half of your hood up like that
i'll tell ya one of mine that i came up with...
take a rear speaker bar and install it toward the front of the headliner....where the other cab light is.. right above the seats.. performs great, delivers great sound....
you could have taked a cut-off wheel and just notched a 1" slice from the hood intsead of completely leaving the back-half of your hood up like that
#10
Member
Join Date: Feb 2009
Posts: 187
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0 L Inline 6
FF stands for free form...its jus a lil upgrade from the regs...i have never seen the regular ones..so i couldnt tell ya if the ff's are really worth the extra money....
#11
Member
Thread Starter
Join Date: Mar 2009
Posts: 222
Likes: 0
Received 1 Like
on
1 Post
Year: 1999
Model: Cherokee
Engine: I6 4.0L
That's cool MJXJ! I like the sound bar idea. I figured share the wealth of ideas w/ others. I've gotten sooo many cool ideas from this site, puttin' back in is a good thing. Best part, the brackets are like $3 a piece. Save my $ for more Hellas! Those 4 on top have to throw some major light!!
#12
CF Veteran
Join Date: Jun 2009
Location: Michigan
Posts: 2,128
Received 287 Likes
on
237 Posts
Year: 1987 MJ, 1998 XJ, 1973 J2000, 89 waggy
Model: Comanche (MJ)
Engine: 4.0L H.O
That's cool MJXJ! I like the sound bar idea. I figured share the wealth of ideas w/ others. I've gotten sooo many cool ideas from this site, puttin' back in is a good thing. Best part, the brackets are like $3 a piece. Save my $ for more Hellas! Those 4 on top have to throw some major light!!
on a clear night with no other cars on the road the damn things light up sings that are 3/4 of a mile down the road..... waaayy better than high beams..
i plan on putting another set of 500's on the front bumper
but i already make progress on my setup (like yours)
