Harmonic Balancer
03-09-2013, 07:17 AM
#1
CF Veteran
Thread Starter
Join Date: Jul 2009
Location: Keesler AFB, MS
Posts: 1,640
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998 XJ
Model: Cherokee
Engine: 4.0L
Harmonic Balancer
98 XJ 4.0L
My harmonic balancer is going out. I'm gonna tackle it in a couple hours.
Any Pointers?
My harmonic balancer is going out. I'm gonna tackle it in a couple hours.
Any Pointers?
03-09-2013, 07:35 AM
#2
CF Veteran
Join Date: Dec 2011
Location: PA KOTUFU!
Posts: 1,777
Likes: 0
Received 16 Likes
on
15 Posts
Year: 1998
Engine: 4.0L 162,000

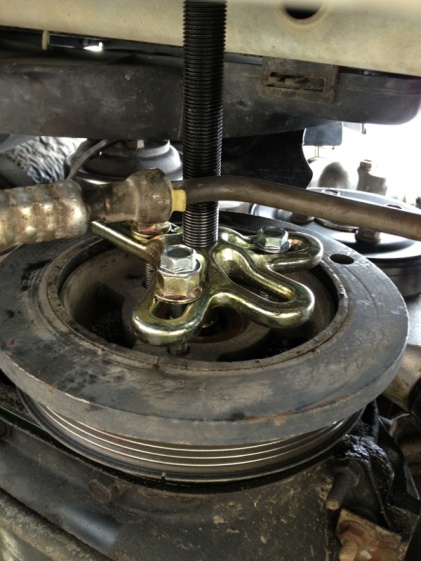

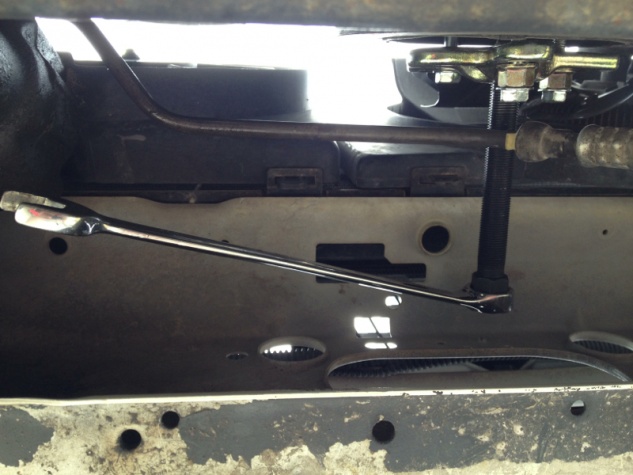

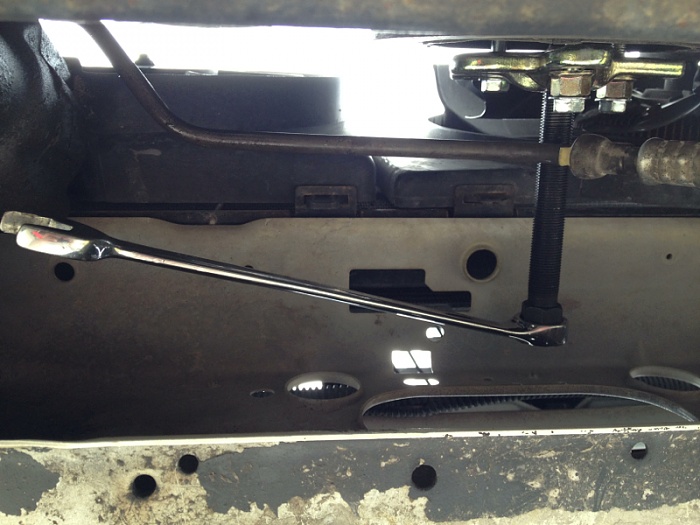

Use a proper HB installation tool (like from harbor freight), don't just use the bolt to press it on, you can break off the end of the crank snout. Use high temp silicone to seal the keyway.
03-09-2013, 06:13 PM
#4
CF Veteran
Thread Starter
Join Date: Jul 2009
Location: Keesler AFB, MS
Posts: 1,640
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998 XJ
Model: Cherokee
Engine: 4.0L

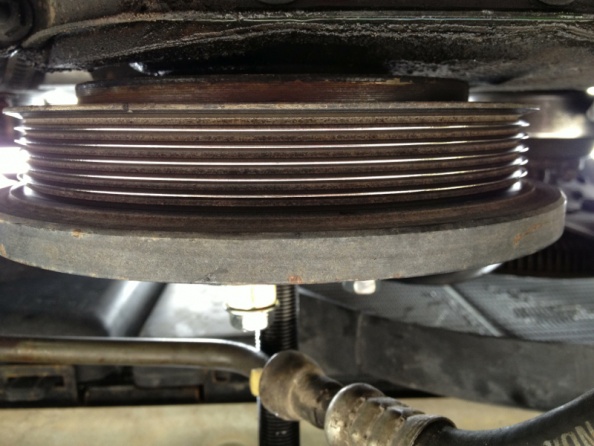

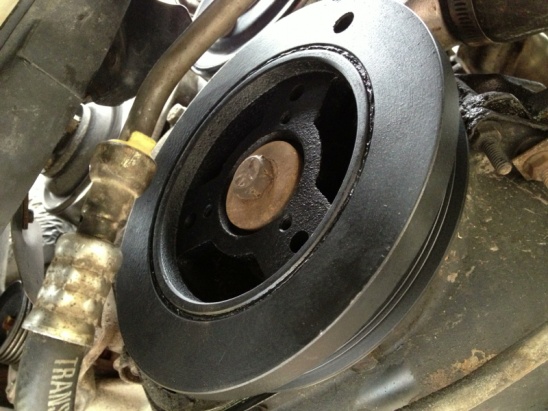

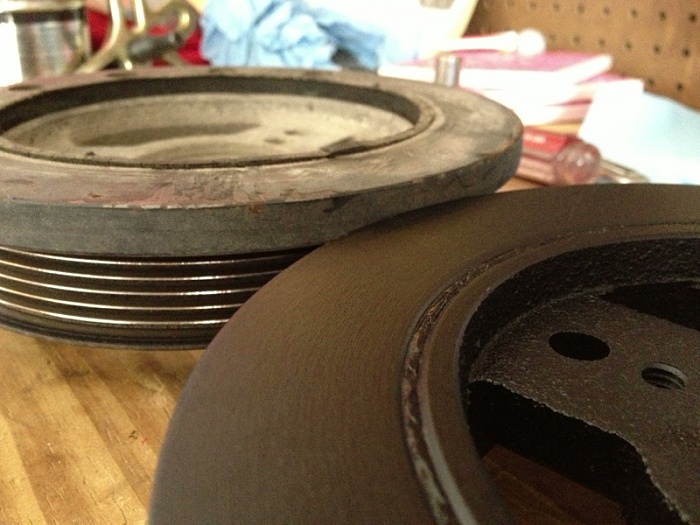

Well that was extremely easy, it had migrated out a little over 1/4 inch and started hitting the mechanical fan. And there's no reason to remove anything extra besides the belt
06-28-2013, 02:21 PM
#6
Junior Member
Join Date: Feb 2009
Location: Dallas, TX
Posts: 59
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1994
Model: Cherokee
Engine: 4.0
I need to do mine today(94 cherokee 2wd). It busted apart when I went to cranking it this morning. Good thing to know you dont have to remove radiator.
06-28-2013, 02:46 PM
#7
Junior Member
Join Date: Jun 2013
Location: Colorado Rockies
Posts: 40
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1989
Model: Cherokee
Engine: one guess
NO new crank seal?? I hope you torque to to spec.
Last year my balancer (the outer portion) decided to bail out while driving 60 mph.....it made a odd thud, boink kaplooey and it was game over. Luckily nothing else got damaged.
Last year my balancer (the outer portion) decided to bail out while driving 60 mph.....it made a odd thud, boink kaplooey and it was game over. Luckily nothing else got damaged.
