Gauge lights
#1
CF Veteran
Thread Starter
Join Date: Sep 2017
Location: MO
Posts: 1,547
Received 302 Likes
on
251 Posts
Year: 1996
Model: Cherokee (XJ)
Engine: 4.0
Gauge lights
Quick question, is the coolant/overheating light supposed to light up upon start up? The oil light comes on so I would assume the coolant one should as well. I changed out the bulb to be safe although it didn’t look burnt out. Just makes me paranoid, thanks in advance.
i can’t wait to get rid of the idiot gauges
i can’t wait to get rid of the idiot gauges
The following users liked this post:
Spencer_P (07-19-2019)
#4
CF Veteran
Join Date: Nov 2017
Location: Groton, MA
Posts: 3,695
Received 234 Likes
on
207 Posts
Year: 1995
Model: Cherokee(XJ)
Engine: I6 4.0L
It's a pretty simple fix. You'll be replacing the 'switch' with a 'sender' when you do the gauge swap. Look at the back of the engine near the firewall and you'll see the little wire plugged into the "switch" on the head. Pull off the wiring harness.. probably half the switch will come off with it, use a small wrench or wobbly socket to get the old switch out, put a new one in (clear the broken plastic out of the connector) and plug it in. Should take you 5-10 minutes.
The following users liked this post:
Spencer_P (07-19-2019)
Trending Topics
#10
CF Veteran
Join Date: Nov 2017
Location: Groton, MA
Posts: 3,695
Received 234 Likes
on
207 Posts
Year: 1995
Model: Cherokee(XJ)
Engine: I6 4.0L
You should be able to get a deep socket over the whole thing with the wire disconnected. I think the OEM is 14mm IIRC. Don't worry about buggering up the plastic connection part of the old sender, mine LITERALLY fell apart (like crumbled) when I disconnected it.
#11
CF Veteran
Thread Starter
Join Date: Sep 2017
Location: MO
Posts: 1,547
Received 302 Likes
on
251 Posts
Year: 1996
Model: Cherokee (XJ)
Engine: 4.0

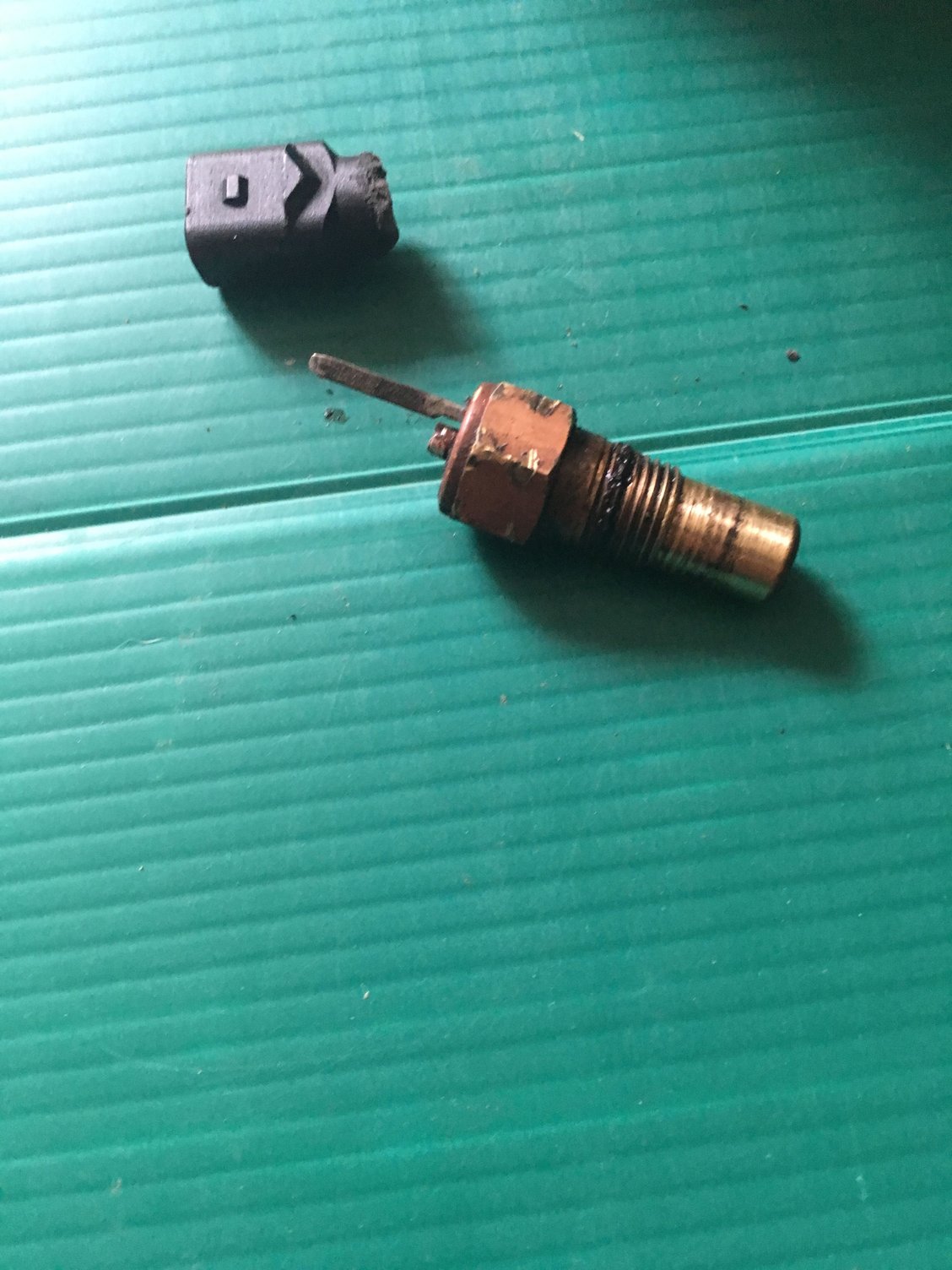

Okay I got the old one out with a 1/2 deep socket and the new one in but the gauge light still doesn’t turn on? It hasn’t been that long since I checked that bulb
#13
CF Veteran
Join Date: Oct 2018
Location: United Kingdom
Posts: 1,576
Received 278 Likes
on
242 Posts
Year: 1995 RHD
Model: Cherokee (XJ)
Engine: 4.0l
Does your generator light work? The oil pressure, generator and temp light all take a feed from the same source so if the temp light is the only one not working, there could be more to it. Regardless of the temperature sender being plugged in, it should illuminate when you turn the ignition on along with the other 2.
#14
CF Veteran
Thread Starter
Join Date: Sep 2017
Location: MO
Posts: 1,547
Received 302 Likes
on
251 Posts
Year: 1996
Model: Cherokee (XJ)
Engine: 4.0
Does your generator light work? The oil pressure, generator and temp light all take a feed from the same source so if the temp light is the only one not working, there could be more to it. Regardless of the temperature sender being plugged in, it should illuminate when you turn the ignition on along with the other 2.
#15
CF Veteran
Join Date: Oct 2018
Location: United Kingdom
Posts: 1,576
Received 278 Likes
on
242 Posts
Year: 1995 RHD
Model: Cherokee (XJ)
Engine: 4.0l
On the FSM page I was looking at it listed all 3 but I see on your original pic that there isn't the alt light.
By rights though, as your oil light works, unless the cluster is at fault, the bulb should be receiving power to illuminate for the self test (ignition on, pre start-up). I don't know how the dash does this self test nor really how to test it.
For the PDF you can visit :http://cruiser54.com/?page_id=365
Use the 1995 XJ manual as a 1996 seems to not exist. One of the files is for the Instrument panel Gauges, I renamed all of them so I'm not sure on the original sheet number.
By rights though, as your oil light works, unless the cluster is at fault, the bulb should be receiving power to illuminate for the self test (ignition on, pre start-up). I don't know how the dash does this self test nor really how to test it.
For the PDF you can visit :http://cruiser54.com/?page_id=365
Use the 1995 XJ manual as a 1996 seems to not exist. One of the files is for the Instrument panel Gauges, I renamed all of them so I'm not sure on the original sheet number.
