fuel pump?
06-14-2017, 08:54 PM
#1
Junior Member
Thread Starter
Join Date: May 2017
Location: Dickinson, Texas
Posts: 31
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1991
Model: Cherokee
Engine: 4.0
fuel pump?

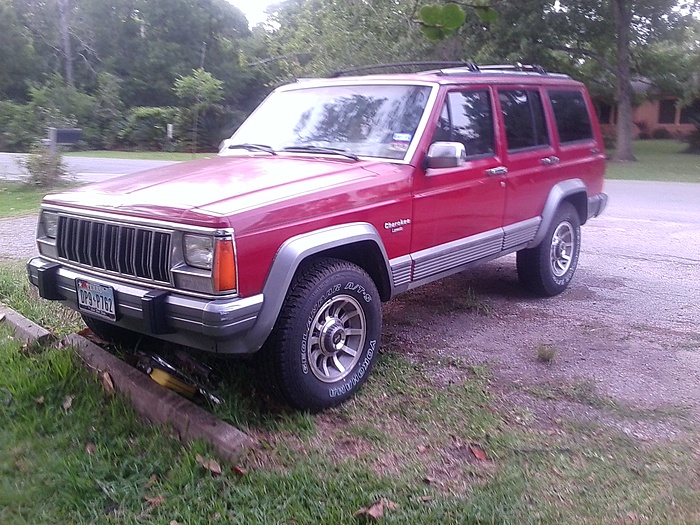

I picked this 1991 Cherokee up at an auction and it ran pretty good at first but now it pops on acceleration and has no power. I did a fuel pressure test and it was low (15 pounds) and the leak down was almost instant. I was thinking the hose from the pump to the metal hose in the tank could have a leak. Could a bad pump cause a leak down like this ? all the injectors have been cleaned and tested good.
06-15-2017, 05:53 PM
#3
CF Veteran
Join Date: Nov 2010
Location: In the middle of Minnesota!
Posts: 5,805
Received 99 Likes
on
88 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
Start with replacing your fuel pump. Then do more testing. Bosch is my first choice, Carter my second. Don't install an Airtex or anything rebranded by Airtex unless you like doing things twice. SEARCH to find out why.
You need approximately 31 psi at idle for your 91 4.0 engine. Then disconnect the vacuum line leading to the fuel pressure regulator and the pressure should jump up to about 39 psi. Check the condition of the vacuum line leading to the regulator and also if there is any fuel in that line, that is indicative of a ruptured diaphragm in the regulator.
Good luck and keep us updated!
You need approximately 31 psi at idle for your 91 4.0 engine. Then disconnect the vacuum line leading to the fuel pressure regulator and the pressure should jump up to about 39 psi. Check the condition of the vacuum line leading to the regulator and also if there is any fuel in that line, that is indicative of a ruptured diaphragm in the regulator.
Good luck and keep us updated!
06-16-2017, 07:13 PM
#4
Junior Member
Thread Starter
Join Date: May 2017
Location: Dickinson, Texas
Posts: 31
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1991
Model: Cherokee
Engine: 4.0
Replaced the fuel pump and it runs like a 26 year old jeep
. it runs pretty dang good. Wasnt the pump so much as it was all the rubber parts turned to goo fuel line included. It sat up with a 1/2 tank of gas for over a year so not surprised. On to the next thing (brakes)
. it runs pretty dang good. Wasnt the pump so much as it was all the rubber parts turned to goo fuel line included. It sat up with a 1/2 tank of gas for over a year so not surprised. On to the next thing (brakes)
