anti-ricer

Pretty much all Cherokee front rear ends will bolt into a 88? Are they any better ones to look for from.a junkyard. The one on my 88 has its axle out and i don't feel like trying to fix it.he said it had lockers but it's to much trouble.

wiggles

Get a HP non vacuum disconnect d30

Gee oh Dee

Front rear end?

wiggles

Confused me too, I assume front and* rear axles*

Gee oh Dee

I'm not confused, I'm pretty sure he's calling the D30 a 'front rear end' instead of a 'front axle'

anti-ricer

New to the 4wd stuff lol.the front thing that looks like the back rearend on a 4wd.what model has the d30 hp no disconnect

Gee oh Dee

Any front end after 91....maybe 94, but pretty sure after 91.

But if you put a little work into a disco front axle it can be stronger than a non disco. Since the disco exists, there is a bit more beef to that side. And you can easily and freely bypass the disconnect, or CAD.

There is a write up here...gimme a min...

Gee oh Dee

Free and easy CAD bypass:

https://www.cherokeeforum.com/f51/fr...ss-91-a-38629/

And it is the 91 and earlier front ends that have the CAD, or disconnect.

wiggles

After like 91 they are non disco, and just look at it. If the pinion is low than its lp, if its high than.. HP lol

Gee oh Dee

LPs should be 2000-2001.

As well as TJ Wranglers and (I think) all GCs.

anti-ricer

Thanks for the info. I think I'll swap the front axle for the 91 up.the one have now needs new axle shafts

cruiser54

Make sure you get the same ratio......

caged

how about take a pic of your front axle as it sits now.
when you say the axle is out, do you mean the whole axle, or just an inner shaft?

pop the cover, drain the fluid and inspect the locker, chances are it will be much easier and cheaper to fix the one you have.

pics please.

anti-ricer

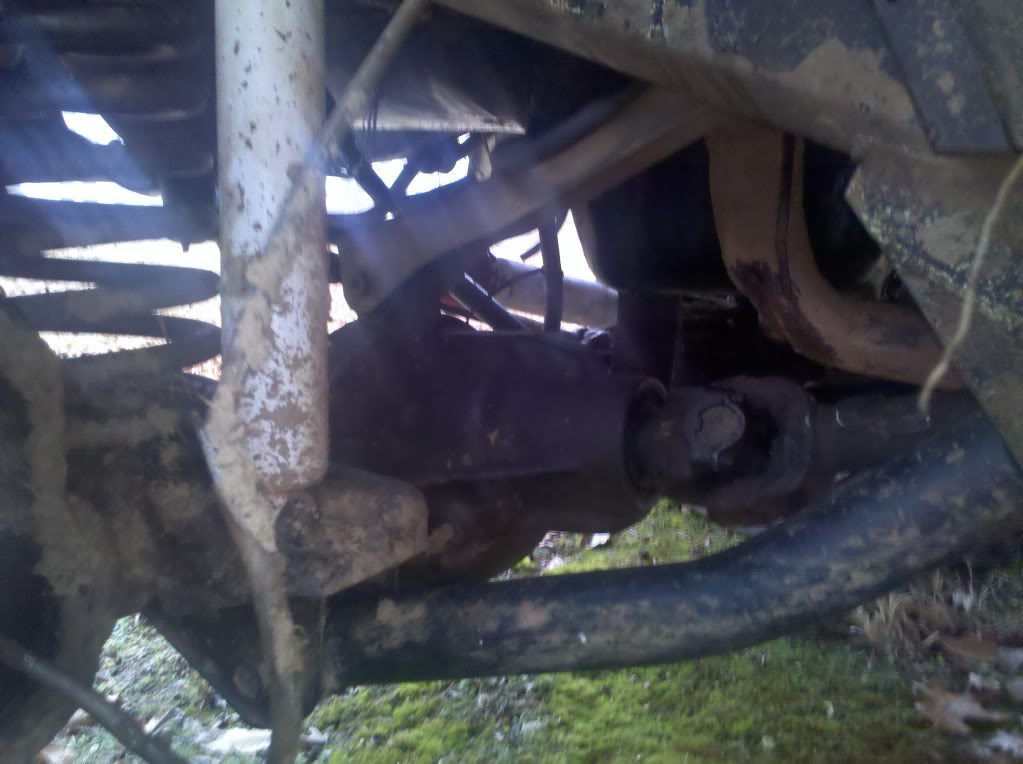

Rearend

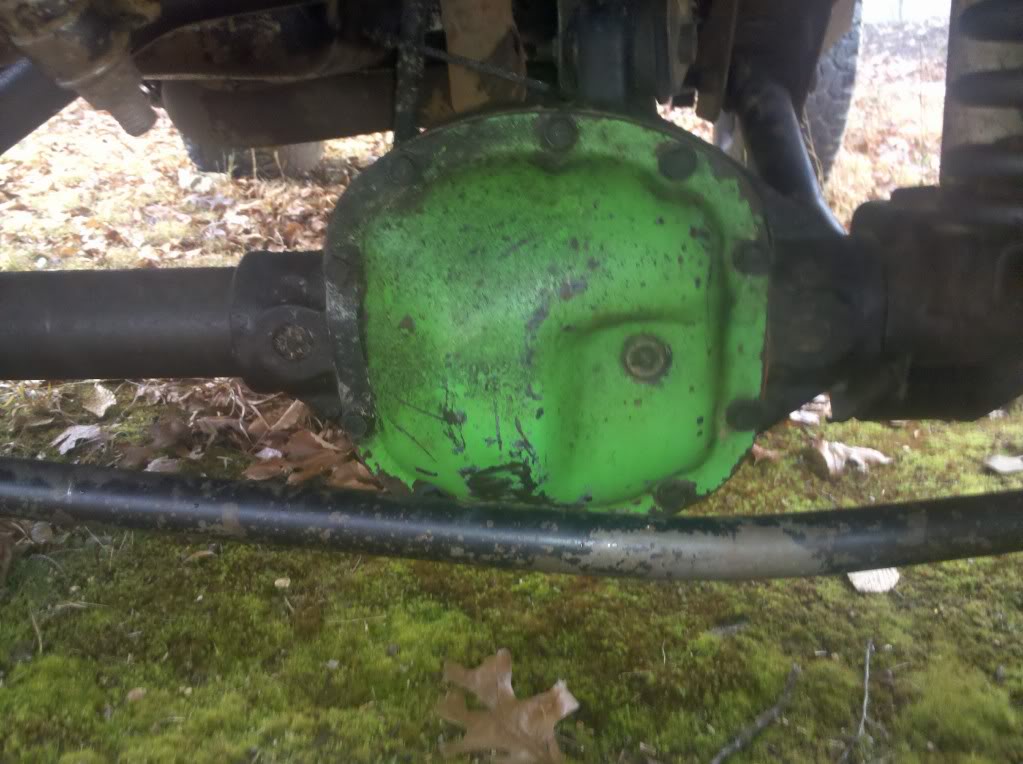

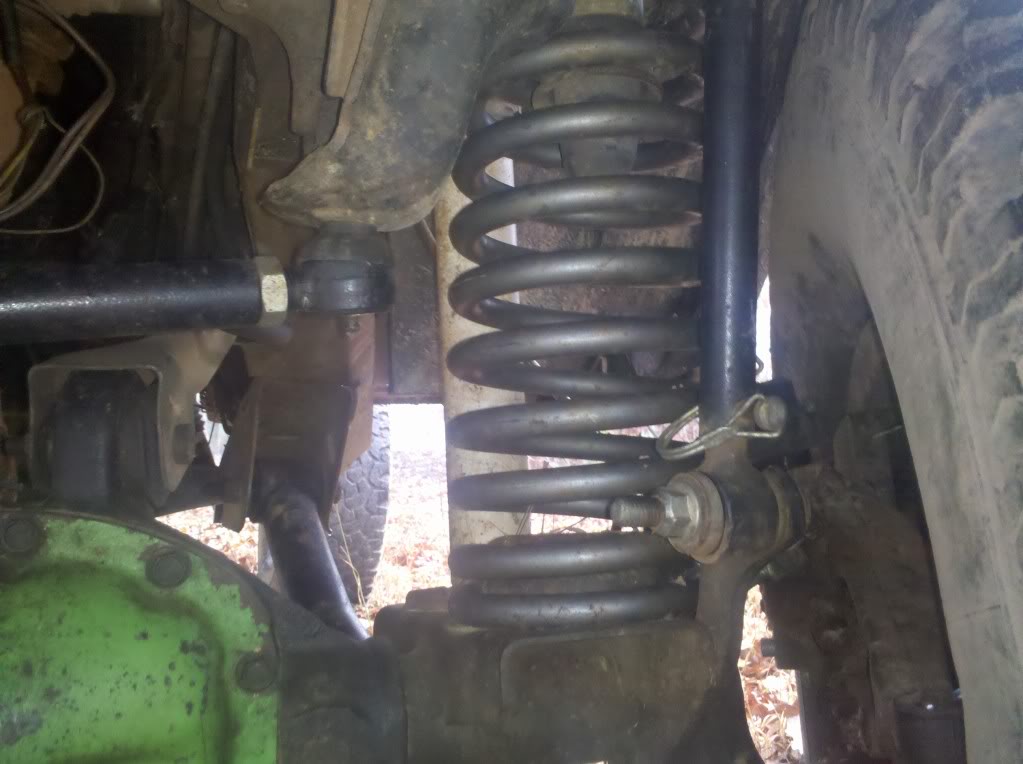

front

anti-ricer

Well there's the pics you asked for?
