Front end popping and grinding

Reply Subscribe

Thread Tools

Search this Thread

11-19-2013, 02:16 PM

livin2xs

Seasoned Member

Thread Starter

Join Date: Oct 2012

Location: Bonney Lake

Posts: 359

Likes: 0

Received 0 Likes on 0 Posts

2000 jeep cherokee 4" lift, 31 9x5 Front end is making a lot of popping and grinding at low speeds. Coming from driver side front. It feels like there's is resistance in the forward movement when the noises happen. Also brake light comes on periodically when breaking and the noise is occurring. Any help would be appreciated. Thank you in advance.

And brake pedal sticks to the floor Brake light and brake pedal going to the floor only occur when the noises are occurring and while turning the wheel. Going forward and reserve in the driveway with NO turn of the wheel the brakes are fine and very little noise.

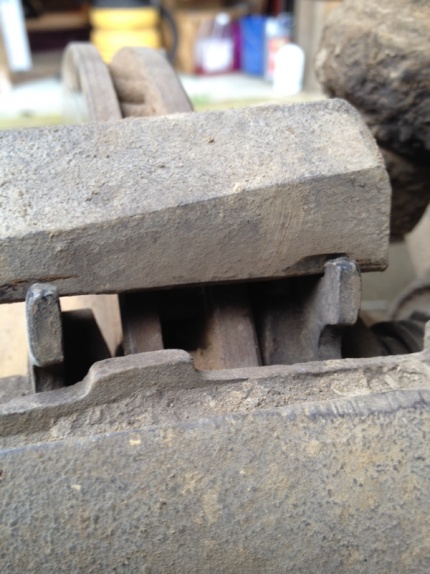

Also found these grooves in the knuckle where the caliper sits

Attached Thumbnails

Front end popping and grinding-image-2119494404.jpg

Last edited by livin2xs; 11-19-2013 at 09:03 PM.

Reply Like

11-20-2013, 05:46 PM

livin2xs

Seasoned Member

Thread Starter

Join Date: Oct 2012

Location: Bonney Lake

Posts: 359

Likes: 0

Received 0 Likes on 0 Posts

Anyone?

Reply Like

11-20-2013, 06:53 PM

01SiennaXJ

Junior Member

Join Date: Sep 2013

Location: NW Iowa

Posts: 54

Likes: 0

Received 0 Likes on 0 Posts

Year: 2001

Model: Cherokee

Engine: 4.0L I6

Wheel bearing is bad possibly? Otherwise I'd inspect/bleed the brakes and check for a bad u-joint..

Reply Like

11-20-2013, 09:32 PM

highmileage

CF Veteran

Join Date: Oct 2011

Location: Bakersfield CA

Posts: 1,268

Likes: 0

Received 1 Like on 1 Post

Year: 1990

Model: Cherokee (XJ)

Engine: 4.0

The brake lockup says to me wheel bearing.

Reply Like

11-20-2013, 09:38 PM

77olds

Senior Member

Join Date: Apr 2011

Location: Lansing, MI

Posts: 813

Likes: 0

Received 1 Like on 1 Post

Year: 2000

Model: Cherokee

Engine: 4.0

I'm gonna suggest you've got a broken/loose caliper or caliper bracket.

Reply Like

11-22-2013, 11:33 AM

livin2xs

Seasoned Member

Thread Starter

Join Date: Oct 2012

Location: Bonney Lake

Posts: 359

Likes: 0

Received 0 Likes on 0 Posts

Quote:

Originally Posted by highmileage

The brake lockup says to me wheel bearing.

Lifted front end up and you can shake the tire back and forth so I'm gonna say wheel bearing as well. Thanks for pointing me in the right direction

Reply Like

11-22-2013, 11:51 AM

Danielxj

Junior Member

Join Date: Apr 2011

Posts: 38

Likes: 0

Received 0 Likes on 0 Posts

Model: Cherokee

Also check your axle nut make sure it's tight. I had wobbly wheel too and it was the axle nut.

Reply Like

Trending Topics

What do you love about your XJ?

9

471
1992 XJ long start, then high idle

7

537
Waterpump ( bearing?)

5

238
What did you do to your Cherokee today?

95.2k

8.1M
98 ZJ 4.0 4wd automatic. First Jeep chronicles.

4

137

11-22-2013, 01:05 PM

livin2xs

Seasoned Member

Thread Starter

Join Date: Oct 2012

Location: Bonney Lake

Posts: 359

Likes: 0

Received 0 Likes on 0 Posts

Got it all replaced and put back together. Good as new!

Reply Like

11-22-2013, 01:09 PM

Danielxj

Junior Member

Join Date: Apr 2011

Posts: 38

Likes: 0

Received 0 Likes on 0 Posts

Model: Cherokee

AWESOME

Reply Like

11-22-2013, 07:57 PM

#10

highmileage

CF Veteran

Join Date: Oct 2011

Location: Bakersfield CA

Posts: 1,268

Likes: 0

Received 1 Like on 1 Post

Year: 1990

Model: Cherokee (XJ)

Engine: 4.0

Right on

Reply Like

11-22-2013, 10:04 PM

#11

cranesrule

Senior Member

Join Date: Dec 2011

Location: Central Arkansas

Posts: 669

Likes: 0

Received 0 Likes on 0 Posts

Year: 1996

Model: Cherokee

Engine: 4.0L

Yep, wheel bearing. Same thing happened to me. Advice for anyone this happens to... DON'T try to limp it along very far. A bearing that far gone will get much worse VERY quickly and could fail catastrophically on the road.
