Front end knock when turning left

Thread Tools

Search this Thread

Old Jun 12, 2014 | 06:36 PM
  #1
rgr4475's Avatar
Thread Starter
Senior Member

Joined: Feb 2011
Posts: 897
Likes: 2
From: NJ
Year: 2004 WJ, 1998 XJ
Model: Grand Cherokee(WJ)
Engine: 4.7 HO
Default Front end knock when turning left

It's most prominent when sitting at a stand still and turning the wheel slightly left. You can hear it at very low speeds too. Normal driving, nothing is heard. Thoughts?
Reply
Old Jun 12, 2014 | 07:16 PM
  #2
krazynezz's Avatar
Seasoned Member

Joined: Oct 2011
Posts: 433
Likes: 2
From: spokane valley, wa
Year: 1993
Model: Cherokee
Engine: 4.0
Default

Any loose steering problems? My first thought would be ball joint(s)
Reply
Old Jun 12, 2014 | 09:00 PM
  #3
rgr4475's Avatar
Thread Starter
Senior Member

Joined: Feb 2011
Posts: 897
Likes: 2
From: NJ
Year: 2004 WJ, 1998 XJ
Model: Grand Cherokee(WJ)
Engine: 4.7 HO
Default

Originally Posted by krazynezz
Any loose steering problems? My first thought would be ball joint(s)
No, steering seems fine. I plan on jacking the jeep up, taking off the tires and take a look. Would axle u joints make that noise too? Or bad tie rod ends?
Reply
Old Jun 12, 2014 | 09:05 PM
  #4
Fsher21's Avatar
Senior Member

Joined: May 2010
Posts: 882
Likes: 1
From: MI 48642
Year: 1996
Model: Cherokee
Engine: 4.0
Default

is it just a single knock once you turn to the left when both moving or sitting at a stand still?
Reply
Old Jun 12, 2014 | 10:31 PM
  #5
rgr4475's Avatar
Thread Starter
Senior Member

Joined: Feb 2011
Posts: 897
Likes: 2
From: NJ
Year: 2004 WJ, 1998 XJ
Model: Grand Cherokee(WJ)
Engine: 4.7 HO
Default

Originally Posted by Fsher21
is it just a single knock once you turn to the left when both moving or sitting at a stand still?
Yes. And it only needs a slight turn to get the knock.
Reply
Old Jun 12, 2014 | 11:04 PM
  #6
md21722's Avatar
Senior Member

Joined: May 2014
Posts: 672
Likes: 5
From: Colorado
Year: 2001, 1997
Model: Cherokee
Engine: 4.0L
Default

Probably wheel bearing. Bad bearing is one opposite the direction you're steering. Right turn and noise is left bearing.
Reply
Old Jun 13, 2014 | 08:20 AM
  #7
cruiser54's Avatar
::CF Moderator::

Joined: Aug 2011
Posts: 43,971
Likes: 1,579
From: Prescott, Az
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Default

First thing to DO is tighten the track bar BRACKET to FRAME bolts on the driver's side frame rail. Don't just look at them. Tighten them.
Reply
Old Jun 13, 2014 | 10:12 AM
  #8
rgr4475's Avatar
Thread Starter
Senior Member

Joined: Feb 2011
Posts: 897
Likes: 2
From: NJ
Year: 2004 WJ, 1998 XJ
Model: Grand Cherokee(WJ)
Engine: 4.7 HO
Default

Thank you gentlemen, and thanks Cruiser, I will do that.
Reply
Old Jun 13, 2014 | 11:56 AM
  #9
Fsher21's Avatar
Senior Member

Joined: May 2010
Posts: 882
Likes: 1
From: MI 48642
Year: 1996
Model: Cherokee
Engine: 4.0
Default

x2 with what Cruiser said. If that is not it, I would lean towards a steering component being loose or worn. Grab onto the track bar and feel for play, do the same for the tie rod and drag link.
Reply
Old Jun 13, 2014 | 12:45 PM
  #10
rgr4475's Avatar
Thread Starter
Senior Member

Joined: Feb 2011
Posts: 897
Likes: 2
From: NJ
Year: 2004 WJ, 1998 XJ
Model: Grand Cherokee(WJ)
Engine: 4.7 HO
Default

Originally Posted by Fsher21
x2 with what Cruiser said. If that is not it, I would lean towards a steering component being loose or worn. Grab onto the track bar and feel for play, do the same for the tie rod and drag link.
Will do. I plan on getting under there tomorrow to see what I come up with. Thanks.
Reply
Old Jun 13, 2014 | 02:23 PM
  #11
Cvail's Avatar
Member

Joined: Mar 2013
Posts: 109
Likes: 0
Model: Cherokee
Default

Check upper control arm bushings. Same thing was occuring on mine and my buds XJ's.
Reply
Old Jun 13, 2014 | 02:39 PM
  #12
rgr4475's Avatar
Thread Starter
Senior Member

Joined: Feb 2011
Posts: 897
Likes: 2
From: NJ
Year: 2004 WJ, 1998 XJ
Model: Grand Cherokee(WJ)
Engine: 4.7 HO
Default

Originally Posted by Cvail
Check upper control arm bushings. Same thing was occuring on mine and my buds XJ's.
I will. Thanks for the suggestion.
Reply
Old Jun 14, 2014 | 11:42 AM
  #13
rgr4475's Avatar
Thread Starter
Senior Member

Joined: Feb 2011
Posts: 897
Likes: 2
From: NJ
Year: 2004 WJ, 1998 XJ
Model: Grand Cherokee(WJ)
Engine: 4.7 HO
Default

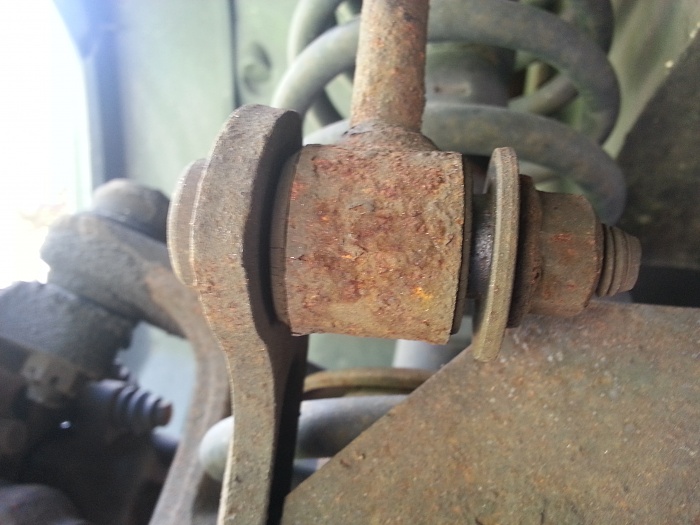

Could this be the cause? That's the sway bar link correct? This is the passenger side but there is a gap like this on both sides. I can move the passenger side by hand side to side with a decent amount of effort.
Attached Thumbnails Front end knock when turning left-20140614_123722.jpg

Last edited by rgr4475; Jun 14, 2014 at 11:53 AM.
Reply
Old Jun 14, 2014 | 12:19 PM
  #14
rgr4475's Avatar
Thread Starter
Senior Member

Joined: Feb 2011
Posts: 897
Likes: 2
From: NJ
Year: 2004 WJ, 1998 XJ
Model: Grand Cherokee(WJ)
Engine: 4.7 HO
Default

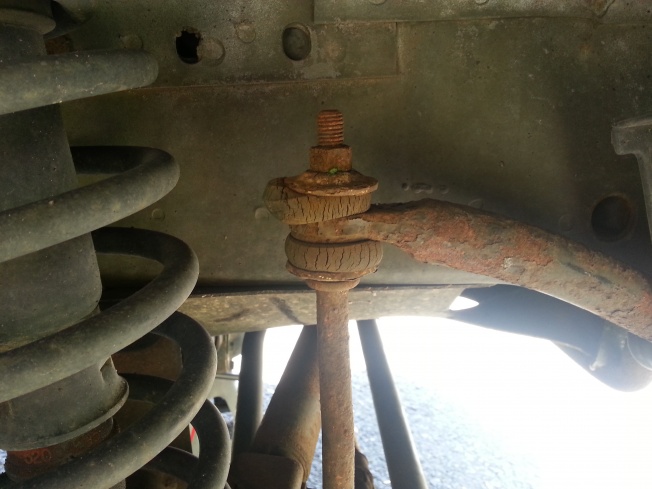

Here's the top bushings. Both sides look the same but the drivers side has no play in it like the passenger side. Should I just get a bushing kit from napa and replace or should I get new links as well?
Attached Thumbnails Front end knock when turning left-20140614_131502.jpg

Last edited by rgr4475; Jun 14, 2014 at 12:21 PM.
Reply
Old Jun 14, 2014 | 01:18 PM
  #15
WhiteDevil1311's Avatar
Junior Member

Joined: Jun 2014
Posts: 93
Likes: 0
Model: Cherokee
Default

My knock ended up being this


you can get new links pretty darn cheap and alot less frustrating then replacing bushings.
