Floor replacement
I kept finding wet carpet after driving in the rain. This is my experience in fixing that

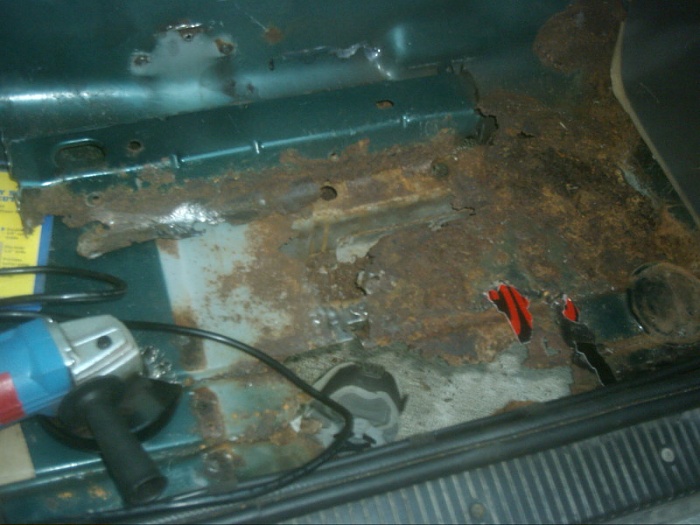

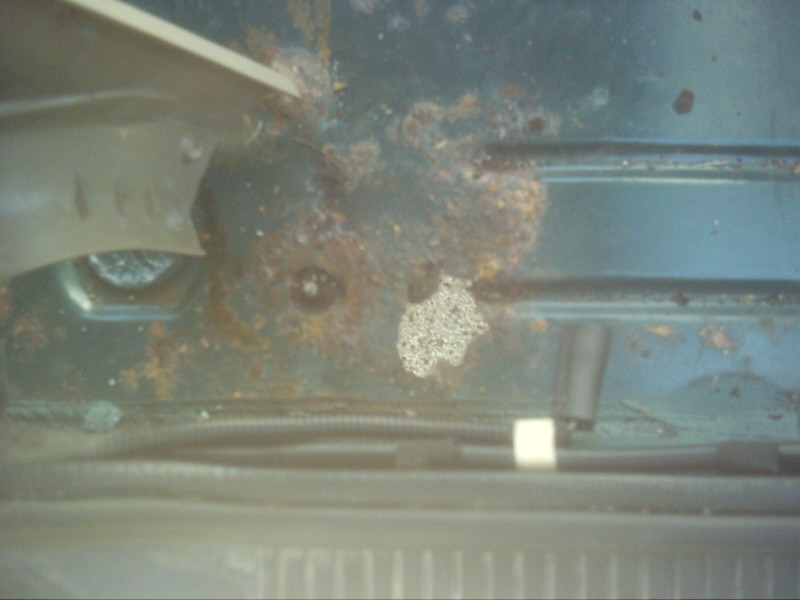

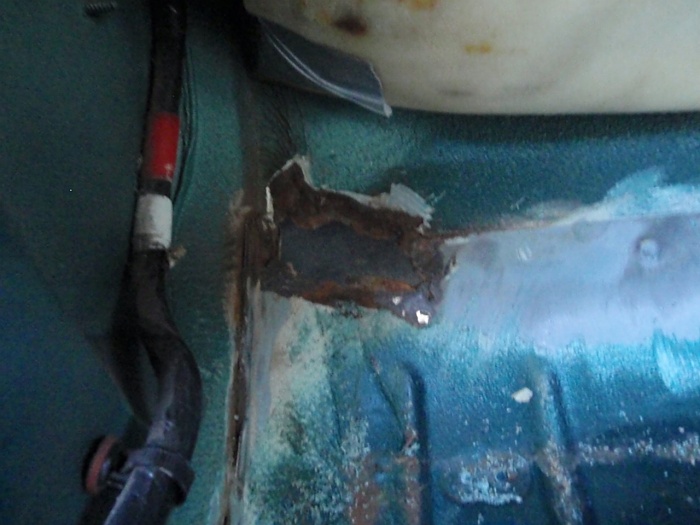

This is what I found. Notice the seat brace at the top of the second pic. That's my foot you see where there was supposed to be sheet-metal.
This is what I found. Notice the seat brace at the top of the second pic. That's my foot you see where there was supposed to be sheet-metal.
11-19-2011, 02:18 PM
#2
Junior Member
Thread Starter
Join Date: Oct 2011
Location: Omaha, NE
Posts: 35
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0HO
More fun

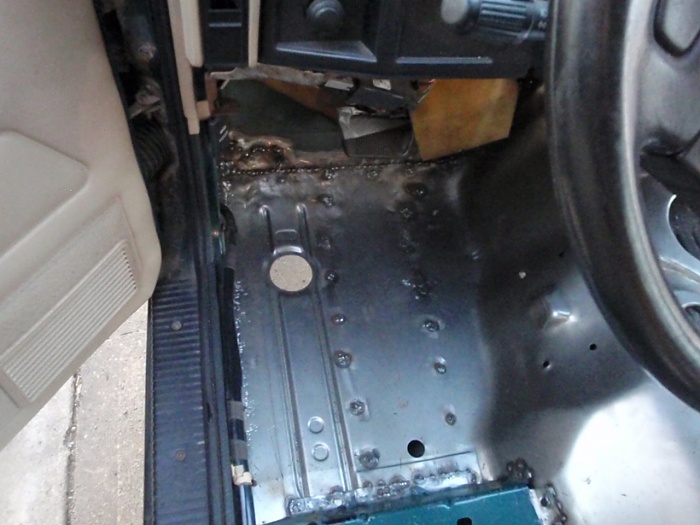

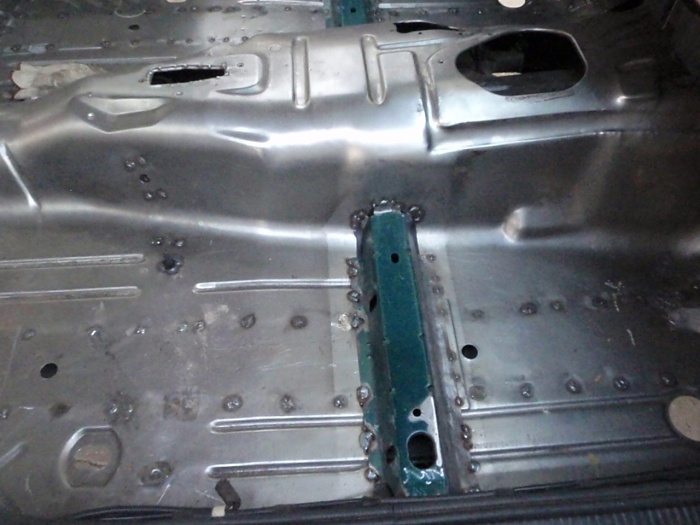

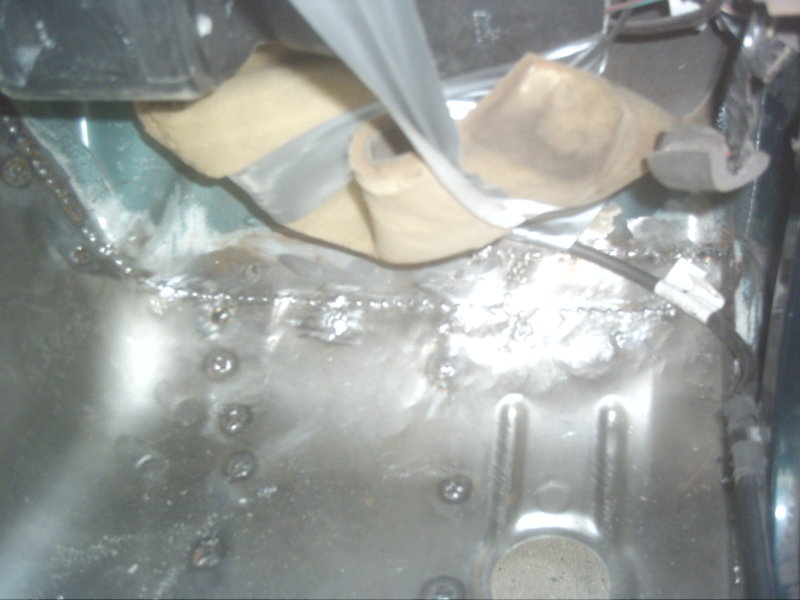

I had four of these holes that extended past the floor. Had to patch those. Like this one. The edges were formed to fit and tacked. 1/4" at a time. The rest were plug welds.
11-19-2011, 02:26 PM
#3
Junior Member
Thread Starter
Join Date: Oct 2011
Location: Omaha, NE
Posts: 35
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0HO
Fixing the rotted seat brace

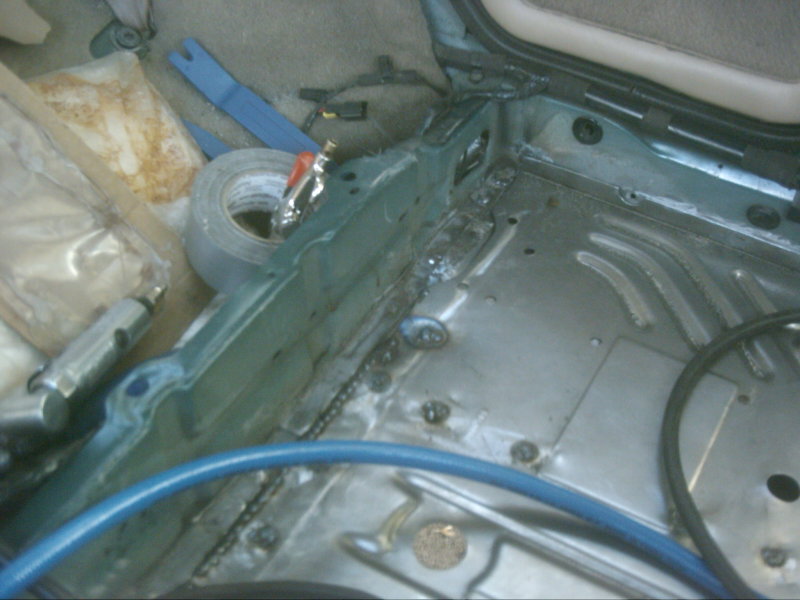

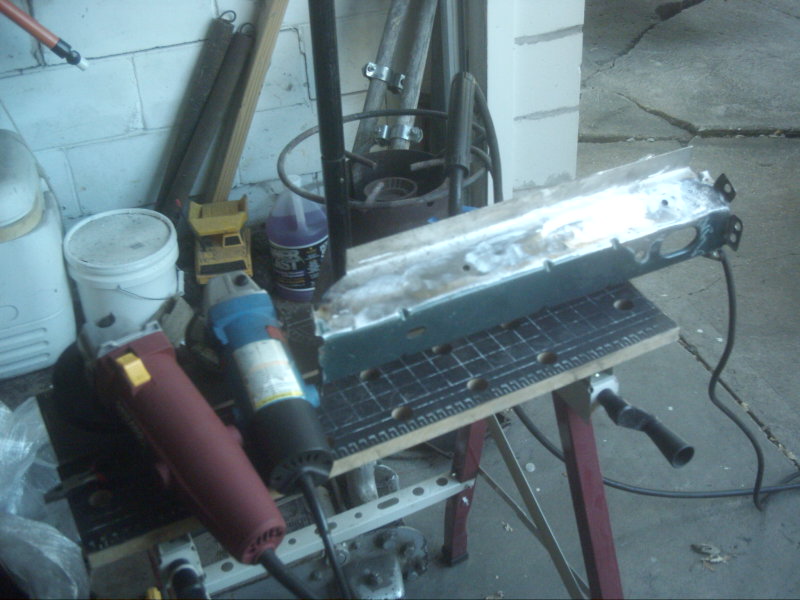

I cut the cross brace off just below the seat bolt holes. Bent replacement sheet metal and welded them together.
11-19-2011, 02:38 PM
#4
Junior Member
Thread Starter
Join Date: Oct 2011
Location: Omaha, NE
Posts: 35
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0HO
And the result is...

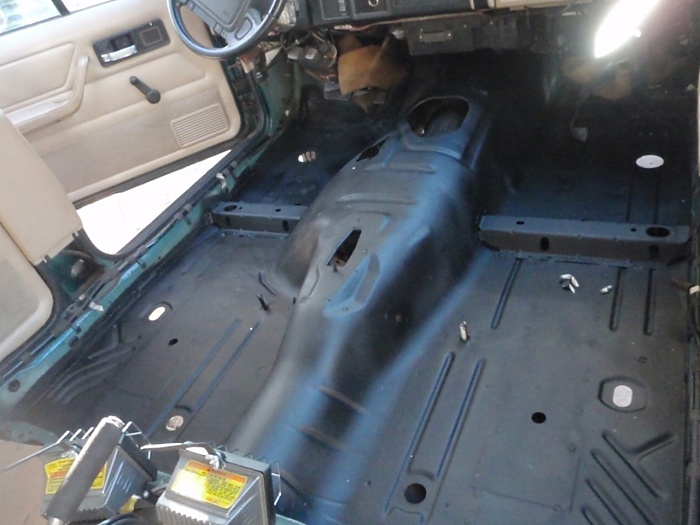

The floor is welded in and undercoated. I started out trying to use .035" flux core wire. Not a good choice for sheet metal work. I ended up using .023" solid mild steel wire and a 75/25 Ar/CO2 mix gas in a mig welder with much better result. My TIG skills aren't up to the task yet. Maybe once I start on the CJ's body panels. I have more pics in my profile gallery.
