Default Flexplate Problems

Hey, I was hoping someone could help me out. I had loose torque converter bolts which I tightened up all 4 bolts, which stopped the horrible sound, but there was still a little bit of clanking noise but was not much at all. A day later I decided to go back under, I did find 2 of the bolts had came loose again. I just tightened back up, but it's still making a little bit of clanking noise. I checked the Flexplate the best I could and I did not see any cracks. I was wondering what if the crank bolts could have came loose, and if so how hard of a job would that be, or if anybody has idea what I'm dealing with please let me know. Thanks
Reply
Old Dec 22, 2009 | 10:27 AM
  #2
95Cherokee's Avatar
CF Veteran

Joined: Feb 2009
Posts: 2,203
Likes: 3
From: Houston Tx.
Year: 1995
Model: Cherokee
Engine: 4.0
Default

Don't forget your Loctite
Reply
Old Dec 22, 2009 | 10:55 AM
  #3
Abovetimberline's Avatar
CF Veteran

Joined: Jul 2009
Posts: 2,158
Likes: 11
From: Chico,ca
Year: 89
Model: Cherokee
Engine: 4.0
Default

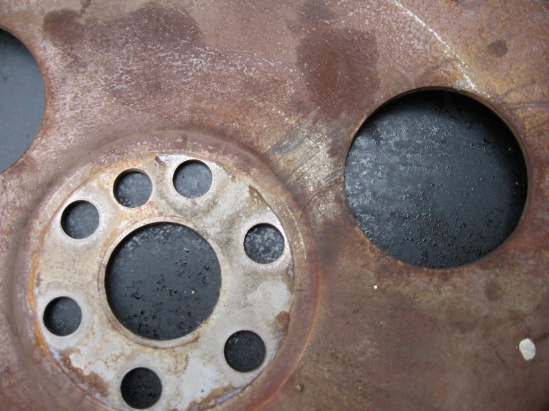

It is possible that the crack is very small and hard to see,see the pic,this one I had to use some steel wool to see it,but I will admit I have old eyes.
Attached Images
Reply
Old Dec 22, 2009 | 11:35 AM
  #4
projectmayhem's Avatar
CF Veteran

Joined: Feb 2009
Posts: 1,268
Likes: 0
From: rogersville, tn
Year: 1988
Model: Cherokee
Engine: 4.0
Default

time for a new flexplate, =(
Reply
Old Dec 22, 2009 | 02:05 PM
  #5
dsfboo's Avatar
Thread Starter
Member

Joined: Dec 2009
Posts: 118
Likes: 0
From: Wilimington
Year: 1997
Model: Cherokee
Engine: 4.0
Default

So even if it's just a little crack it will make noise, and how hard is it to put in? Thanks
Reply
Old Dec 22, 2009 | 02:07 PM
  #6
Abovetimberline's Avatar
CF Veteran

Joined: Jul 2009
Posts: 2,158
Likes: 11
From: Chico,ca
Year: 89
Model: Cherokee
Engine: 4.0
Default

Most cracks are small unless you rip the center out of them,which I have seen before. You have to remove the trany to replace the flexplate,not hard at all with the right tools.
Reply
Old Dec 22, 2009 | 03:32 PM
  #7
98 JeepJeep's Avatar
CF Veteran

Joined: Oct 2008
Posts: 2,543
Likes: 5
From: Stafford,VA
Year: 1998
Model: Cherokee
Engine: 4.0
Default

crank bolts coming loose is rare. i havent removed ANY flexplate/flywheel bolts that havnt had locktite from the factory...however chances are if the convertor bolts came loose you could have other damage to the flexplate.....
Reply
Old Dec 22, 2009 | 04:31 PM
  #8
projectmayhem's Avatar
CF Veteran

Joined: Feb 2009
Posts: 1,268
Likes: 0
From: rogersville, tn
Year: 1988
Model: Cherokee
Engine: 4.0
Default

Originally Posted by dsfboo
So even if it's just a little crack it will make noise, and how hard is it to put in? Thanks
the flexplate is made to iliminate vibrations from the crank between firing, and if cracked or chipped they are known to cause problems, when removing they should always be marked. some flexplates are weighted to offset some of rotating mass of the crank also thats why they should be marked if not (lots of vibrations and drivability issues)
Reply
Old Dec 22, 2009 | 05:02 PM
  #9
dsfboo's Avatar
Thread Starter
Member

Joined: Dec 2009
Posts: 118
Likes: 0
From: Wilimington
Year: 1997
Model: Cherokee
Engine: 4.0
Default

Well thanks everyone for there advice. I'm going to try to put a new flexplate on tomorrow morning and see if I can't get this problem resolved before it turns it to a bigger one. Thanks again!
Reply
Old Oct 1, 2010 | 02:42 AM
  #10
uplndvpr's Avatar
Newbie

Joined: Sep 2010
Posts: 27
Likes: 0
From: Louisiana
Year: 1998
Model: Cherokee
Engine: 4.0
Default

ok so what should i do when replacing mine try and match the 2 together and make sure they match and install the replacement in the same position as the one i took off the vehicle
