Default Fender trimming help

Hey guys i wanna fit 31's on my cherokee it has a 2in spacer on the front of it. Is there a way to trim the fenders but still retain the stock flare,i dont want that hacked up look. i searched but couldnt find many pics of trimmed xj's retaining stock flairs. Any pics or info would be appreciated.


Thanks
Jim
Old 06-29-2009, 10:21 AM
  #2
Senior Member

94xjstud's Avatar

Join Date: Jan 2009
Posts: 545
Likes: 0
Received 1 Like on 1 Post
Year: 1994
Model: Cherokee
Engine: 4.0L Air Intake and TB Spacer
Default

You can trim up to the holes in the fenders, to gain some cleanance while leaving the fenders in the stock position.
Or you can cut past the holes, move the fenders up more, redrill the holes and mount them higher and trim the fenders to match the body line
Old 06-29-2009, 10:36 AM
  #3
Newbie

aci4369's Avatar

Join Date: Jun 2009
Posts: 9
Likes: 0
Received 0 Likes on 0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
Default

A lot of people will also ditch their stock fenders but will put YJ fenders back on.

So you will keep the fender look but they will not be stock fenders.
Old 06-29-2009, 11:10 AM
  #4
Newbie

XJSoundwave's Avatar

Join Date: Jun 2009
Posts: 13
Likes: 0
Received 0 Likes on 0 Posts
Year: 1990
Model: Cherokee
Engine: 4.0 in-line 6
Default

try what this guy did. i will.

https://www.cherokeeforum.com/showthread.php?t=8000
Old 06-29-2009, 08:24 PM
  #5
Junior Member

tcountry's Avatar

Join Date: Mar 2009
Location: Western Colorado
Posts: 95
Likes: 0
Received 0 Likes on 0 Posts
Year: 1988
Model: Cherokee
Engine: 4.0l
Default

I trimmed thec front fenders and just raised the flare up, its not that hard to do for the front. I'm not so sure about the back
Old 06-29-2009, 09:56 PM
  #6
Seasoned Member
Thread Starter

Nstyfox's Avatar

Join Date: Apr 2009
Location: marlton,south jersey
Posts: 349
Likes: 0
Received 2 Likes on 2 Posts
Year: 91
Model: Cherokee
Engine: I6
Default

^^^any pics???
Old 06-29-2009, 10:13 PM
  #7
Seasoned Member

quadracer0387's Avatar

Join Date: Dec 2008
Location: Cincinnati, Ohio
Posts: 414
Likes: 0
Received 2 Likes on 2 Posts
Year: 2000
Model: Cherokee
Engine: 4.0 inline six
Default

i have 31's with spacer lift, 1.5" rear 1.75" front... barely had to trim for normal driving... have not wheeled it yet but it will probably rub in the front some
Old 06-29-2009, 10:14 PM
  #8
Seasoned Member

quadracer0387's Avatar

Join Date: Dec 2008
Location: Cincinnati, Ohio
Posts: 414
Likes: 0
Received 2 Likes on 2 Posts
Year: 2000
Model: Cherokee
Engine: 4.0 inline six
Default

Old 06-29-2009, 10:16 PM
  #9
Senior Member

radio flyer's Avatar

Join Date: Feb 2009
Location: Highlands Ranch Co.
Posts: 717
Likes: 0
Received 0 Likes on 0 Posts
Year: 1985 shell
Model: Cherokee
Engine: 1996 6 cylinder Briggs & Stratton
Default

I trimmed mine and was able to use the the factory mounting set up by transferring the bolt pattern on the front flares higher up on the fender, after cutting the fender. The rear flares had to be screwed on- as you won't be able to access the back side to attach them after trimming the sheet metal. pm me with a reminder tomorrow, and i'll load some pics into my albums for you to look at. There are pics of the shields that i made to keep mud and garbage off of the hinges in my albums if you are not keeping the inner factory liners.
Old 06-29-2009, 11:27 PM
  #10
Junior Member

tcountry's Avatar

Join Date: Mar 2009
Location: Western Colorado
Posts: 95
Likes: 0
Received 0 Likes on 0 Posts
Year: 1988
Model: Cherokee
Engine: 4.0l
Default

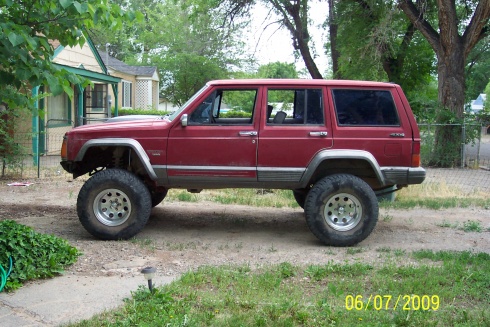

heres a pic of the trimming
Name:  bifrent 004.jpg
Views: 141
Size:  100.7 KB
Old 06-29-2009, 11:43 PM
  #11
CF Veteran

djlarroc's Avatar

Join Date: Jun 2009
Location: Denver, CO
Posts: 3,071
Likes: 0
Received 0 Likes on 0 Posts
Year: 1997
Model: Cherokee
Engine: 4.0
Default

Tcountry, that looks good! Can you give us details on your lift, wheel and tire size please? How did you re-attach your flares?
Old 06-29-2009, 11:45 PM
  #12
CF Veteran

rjxj's Avatar

Join Date: May 2009
Location: Central California
Posts: 4,165
Likes: 0
Received 0 Likes on 0 Posts
Year: 1988
Model: Cherokee
Engine: 4.0
Default

Originally Posted by tcountry
heres a pic of the trimming
Attachment 4093

Nice rig
Old 06-29-2009, 11:50 PM
  #13
Member

freakaccident's Avatar

Join Date: Jun 2009
Posts: 114
Likes: 0
Received 0 Likes on 0 Posts
Model: Cherokee
Default

Originally Posted by XJSoundwave
Wow. I want those.
Old 06-29-2009, 11:51 PM
  #14
Senior Member

89cherokeelimited's Avatar

Join Date: Jun 2009
Location: Hendersonville, TN
Posts: 706
Likes: 0
Received 1 Like on 1 Post
Year: 1989
Model: Cherokee
Engine: 4.0 litre
Default fender trimming



I found the best thing is to use a smaller cutting wheel. I've seen tons of people use big cutting wheels and they destroy the fenders. I would put the fender flares back on but i like more mud
I cleaned my fenders really good and used a small tip dry erase marker and made my line where I wanted to cut and trimmed the fenders and left them like they were.
Old 06-29-2009, 11:56 PM
  #15
CF Veteran

djlarroc's Avatar

Join Date: Jun 2009
Location: Denver, CO
Posts: 3,071
Likes: 0
Received 0 Likes on 0 Posts
Year: 1997
Model: Cherokee
Engine: 4.0
Default

Originally Posted by 89cherokeelimited

I found the best thing is to use a smaller cutting wheel. I've seen tons of people use big cutting wheels and they destroy the fenders. I would put the fender flares back on but i like more mud
I cleaned my fenders really good and used a small tip dry erase marker and made my line where I wanted to cut and trimmed the fenders and left them like they were.
When you say small cutting wheel, did you cut diagonally along the fender? Or did you make small vertical cuts all along the fender and bend the pieces back?
