Stock XJ Cherokee Tech. All XJ Non-modified/stock questions go here XJ (84-01)
All OEM related XJ specific tech. Examples, no start, general maintenance or anything that's stock.

fender trimming

Thread Tools

Search this Thread

Old 01-28-2009, 11:07 PM
  #1
Junior Member
Thread Starter

bostonnj15's Avatar

Join Date: Dec 2008
Posts: 86
Likes: 0
Received 0 Likes on 0 Posts
Year: 1990
Model: Cherokee
Engine: 4.0 Inline 6
Default fender trimming

hi i have a 1990 Cherokee with a RE 5.5 long arm lift kit. i put some 35x12.50 on it. it rubs a little. i was wondering if anyone could give me some advice on how to trim the fenders, what to look out for how far up i should go or any other tips or suggestions. thanks
Old 01-28-2009, 11:16 PM
  #2
Senior Member

CRoading's Avatar

Join Date: Jun 2008
Posts: 787
Likes: 0
Received 0 Likes on 0 Posts
Model: Cherokee
Default

Here's a write up about trimming an XJ fender with 33" on it...
http://www.jeepin.com/features/chop/ Hope this gives you an idea...
Old 01-28-2009, 11:23 PM
  #3
Seasoned Member

TennesseeXJ's Avatar

Join Date: Dec 2008
Location: Chattanooga, TN
Posts: 443
Likes: 0
Received 2 Likes on 2 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
Default

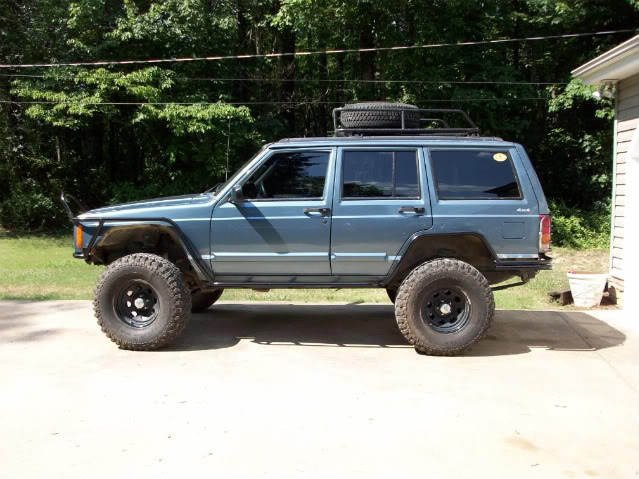

I cut the fronts almost all the way up to that bend on the fenders. The rears I just got about a half inch from the door and followed the lines. Tip: use a nibbler instead of a sawzall/angle grinder. It makes your cuts much cleaner

Name:  100_0090-1.jpg
Views: 4008
Size:  74.7 KB
Name:  100_0087-1.jpg
Views: 10279
Size:  79.2 KB
Old 01-28-2009, 11:31 PM
  #4
Seasoned Member

99XJDad's Avatar

Join Date: Jan 2009
Location: Mountains
Posts: 326
Likes: 0
Received 1 Like on 1 Post
Year: 1999
Model: Cherokee
Engine: 4.0
Default

Nice XJ!!!!
Old 01-28-2009, 11:34 PM
  #5
CF Veteran

76ANTHONY's Avatar

Join Date: Aug 2008
Location: palm desert,ca
Posts: 1,313
Likes: 0
Received 1 Like on 1 Post
Year: 1987
Model: Wagoneer
Engine: 4.0
Default

when you trim that much how do you keep stuff from flying in through the fender into the pasenger compartment?
Old 01-29-2009, 12:29 AM
  #6
Seasoned Member

lifted93xj's Avatar

Join Date: Dec 2008
Posts: 352
Likes: 0
Received 0 Likes on 0 Posts
Year: 1993
Model: Cherokee
Engine: 4.0L
Default

U dont thats how. Ive been trying to find something to do so it doesnt but i have had no luck.
Old 01-29-2009, 05:32 AM
  #7
Junior Member

01xjsport's Avatar

Join Date: Jan 2009
Posts: 96
Likes: 0
Received 0 Likes on 0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0L Power Tech I-6. TB spacer, 0630 head conversion
Default

Originally Posted by 76ANTHONY
when you trim that much how do you keep stuff from flying in through the fender into the pasenger compartment?
You try using foam crack sealer. After it dries cut/sand it and use undercoating.
Old 01-29-2009, 05:55 AM
  #8
Short Bus Motorsports

xjjeepthing's Avatar

Join Date: Mar 2008
Location: Plymouth Indiana
Posts: 1,111
Likes: 0
Received 5 Likes on 1 Post
Year: 2001
Model: Cherokee
Engine: 4.0
Default

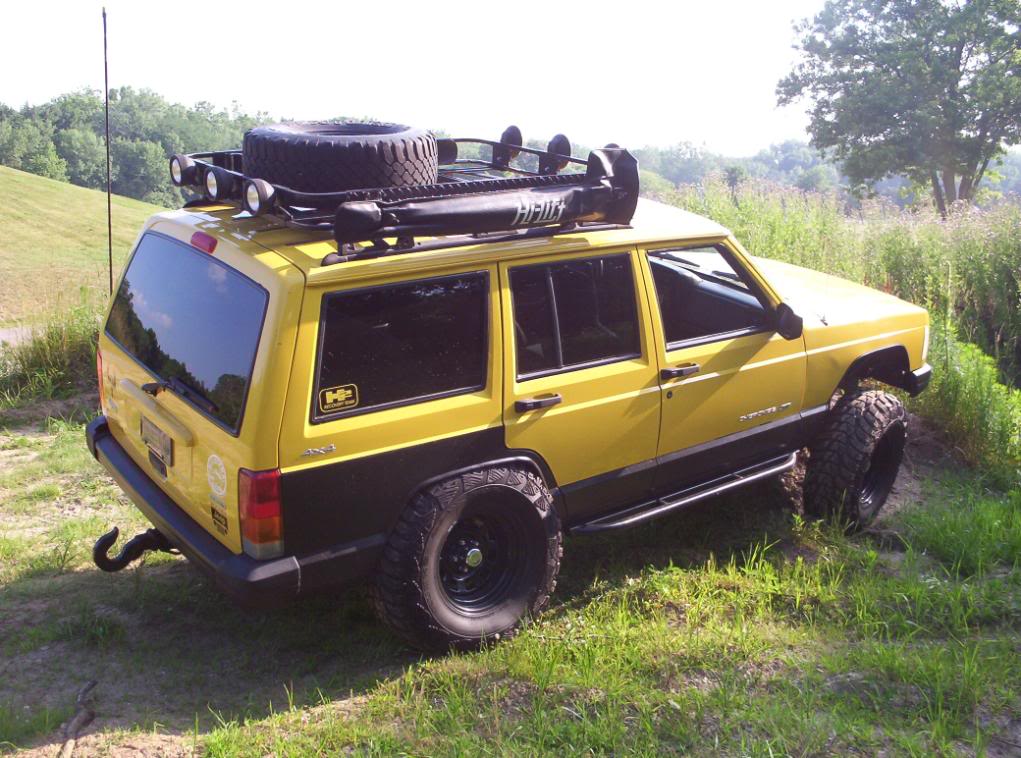

This is how I did mine, minus the Bushwhackers.
http://www.jeepin.com/features/bushwacker/index.asp
http://www.jeepin.com/features/bushwacker/page2.asp


Name:  100_3798.jpg
Views: 2028
Size:  130.7 KB
Old 01-29-2009, 08:36 AM
  #9
Senior Member

grn99's Avatar

Join Date: Jan 2009
Location: Redford MI
Posts: 836
Likes: 0
Received 3 Likes on 3 Posts
Year: 1999
Model: Grand Cherokee
Engine: 4.0
Default

I fabbed up some aluminium inserts for the frt., to block road debris from door hinges, electrical. I used the foam insert(factory piece behind the plastic inner) as a templet and added some tabs to fasten to lower a-pilliar. This also cut down on water comming off tires, and soaking me when doors are off.
Old 01-29-2009, 12:22 PM
  #10
Seasoned Member

TennesseeXJ's Avatar

Join Date: Dec 2008
Location: Chattanooga, TN
Posts: 443
Likes: 0
Received 2 Likes on 2 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
Default

Originally Posted by 99XJDad
Nice XJ!!!!
Thanks man!

Originally Posted by 76ANTHONY
when you trim that much how do you keep stuff from flying in through the fender into the pasenger compartment?
Well its not my DD so i usually dont worry about it too much. I am going to do something about it eventually though cause every time it rains theres about 4" of water in my floorboards (which are herculined so its no big deal)

Originally Posted by 01xjsport
You try using foam crack sealer. After it dries cut/sand it and use undercoating.
Thats a pretty good idea. I may steal that from you hahaha
Old 01-30-2009, 09:17 PM
  #11
Seasoned Member

lifted93xj's Avatar

Join Date: Dec 2008
Posts: 352
Likes: 0
Received 0 Likes on 0 Posts
Year: 1993
Model: Cherokee
Engine: 4.0L
Default

hey jeep thing how did you keep the plastic up to the fender without the flares. I tried everything
Old 01-30-2009, 09:19 PM
  #12
CF Veteran

finneys98xj's Avatar

Join Date: May 2008
Location: Virginia
Posts: 2,680
Likes: 0
Received 1 Like on 1 Post
Year: 1993
Model: Cherokee
Engine: 4.0L
Default

Originally Posted by lifted93xj
hey jeep thing how did you keep the plastic up to the fender without the flares. I tried everything
when you cut fold the tabs over to hold it or just rip them out.
Old 01-30-2009, 09:48 PM
  #13
Seasoned Member

lifted93xj's Avatar

Join Date: Dec 2008
Posts: 352
Likes: 0
Received 0 Likes on 0 Posts
Year: 1993
Model: Cherokee
Engine: 4.0L
Default

Well ive been debating on riveting them to the fender but idk. I want to see some pics first of other jeepers set-ups
Old 01-30-2009, 10:18 PM
  #14
Seasoned Member

kamokid's Avatar

Join Date: Jan 2009
Location: FLORIDA
Posts: 359
Likes: 0
Received 0 Likes on 0 Posts
Year: 1996
Model: Cherokee
Engine: I-6
Default

bushwacker fender flares are always a cool route, look at my pics on my profile to see them, or hold on ill post one or 2..hold on a sec
Old 01-30-2009, 10:19 PM
  #15
Seasoned Member

kamokid's Avatar

Join Date: Jan 2009
Location: FLORIDA
Posts: 359
Likes: 0
Received 0 Likes on 0 Posts
Year: 1996
Model: Cherokee
Engine: I-6
Default
