Everybody Get Ready For Another Game of Where Does This GO!
05-14-2010, 10:02 PM
#1
Junior Member
Thread Starter
Join Date: Mar 2010
Location: Bakersfield, CA
Posts: 58
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1993
Model: Cherokee
Engine: I6 4.0L HO
Everybody Get Ready For Another Game of Where Does This GO!
93 xj I6 4.0HO

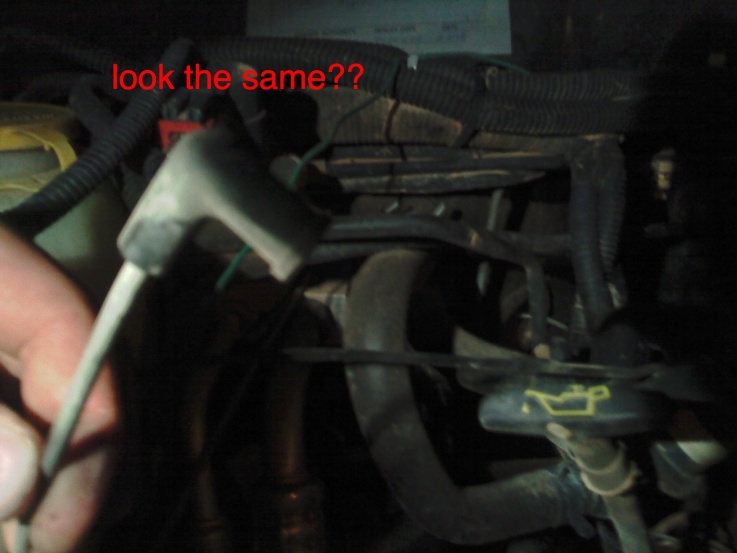

Heres a vaccum hose? not a clue where it goes.
Heres the Bonus Round, "What Goes Here?"
NP242 Tcase/ Auto Tranny
slapped the Tcase on myself, when i did my 2x4/4x4 conversion... never figured out what plugs into here.
Im due for smog, so im doing a once over.
Heres a vaccum hose? not a clue where it goes.
Heres the Bonus Round, "What Goes Here?"
NP242 Tcase/ Auto Tranny
slapped the Tcase on myself, when i did my 2x4/4x4 conversion... never figured out what plugs into here.
Im due for smog, so im doing a once over.
05-14-2010, 10:11 PM
#2
Honorary Moderator
Join Date: Mar 2010
Location: Gilbert AZ/Las Cruces NM
Posts: 8,135
Likes: 0
Received 13 Likes
on
11 Posts
Year: 1996
Model: Cherokee
Engine: 4.0 upgraded
the small vacuum hose looks like it should go on your colent valve (i think thats what it is called. anyways it has like 5 diferent colent hoses going into it. i will see if i can get a picture. Also, do you have a CAD front axle?
05-14-2010, 10:12 PM
#3
Senior Member
Join Date: May 2010
Location: MI 48642
Posts: 882
Likes: 0
Received 1 Like
on
1 Post
Year: 1996
Model: Cherokee
Engine: 4.0

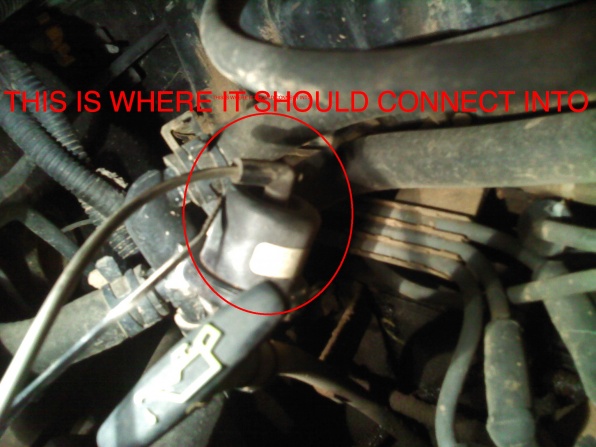

lol im just starting to learn jeeps, but I know when some connector for my coolant hoses disintegrated, that vacuum hose went into the top of it. its a plastic piece with about 4 coolant hoses connecting into it, one for the heater, radiator, and some other stuff i have no clue about
05-14-2010, 10:33 PM
#6
Senior Member
Join Date: May 2010
Location: MI 48642
Posts: 882
Likes: 0
Received 1 Like
on
1 Post
Year: 1996
Model: Cherokee
Engine: 4.0
lol! i think it just does something for the heater, not sure what though haha. i had mine disconnected after the thing literally fell apart and blew coolant everywhere. Didn't know where it went until i looked one day and saw a little hole for it to connect to. Anyone know what it actually does?
Trending Topics
05-14-2010, 11:07 PM
#8
CF Veteran
Join Date: Dec 2008
Location: eaton ohio
Posts: 1,533
Likes: 0
Received 0 Likes
on
0 Posts
Year: 93
Model: Cherokee
Engine: 4.0

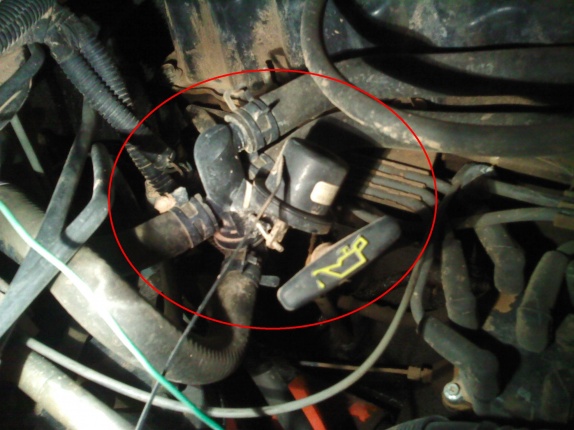

the first pic is of the heater control valve that vacuum line opens op that valve to control the flow of coolant when you turn the heat on
