Engine replacement advice
I purchased a 2000 Cherokee with a blown headgasket. Turns out the best option would be to replace the motor entirely. Question is has anyone replaced with an earlier 4.0 and what has to be changed to do it? I found a 98 75000 mile 4.0 out of a Wrangler and I was curious if this would work. What would I need due to that being a engine with distributor and the 2000 is coil on plug. I have read the the Grand Cherokee 4.0's will not work due on accessory location and possible motor mount issues. Any help is appreciated. Thanks
#2
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,875
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
This should help:
XJ Cherokee and ZJ Grand Cherokee 4.0L engine blocks interchange.
2000+ TJ Wrangler and WJ Grand Cherokee 4.0L engine blocks interchange.
XJ/ZJ blocks and 2000+ TJ/WJ blocks do not interchange without significant modifications. (1991 to 1995 YJ and 1997-1999 4.0L TJ Wrangler blocks will interchange in XJ/ZJ and visa-versa).
TJ/WJ 4.0L Engine blocks underwent clean sheet design changes effective in the 1999 WJ Grand and 2000 TJ Wrangler. These blocks are not interchangeable with XJ/ZJ engine blocks. The reason is motor mount bolt holes and belt driven accessory mounting bolt holes are in different locations, or not present at all, TJ/WJ vs. XJ/ZJ.
XJ: "Regular" (not Grand) Cherokees 84-01
ZJ: Grand Cherokee 93-98 (Gen1)
WJ: Grand Cherokee 99-04 (Gen2)
YJ: Wrangler 87-95 (Gen1)
TJ: Wrangler 97-06 (Gen2)
XJ Cherokee and ZJ Grand Cherokee 4.0L engine blocks interchange.
2000+ TJ Wrangler and WJ Grand Cherokee 4.0L engine blocks interchange.
XJ/ZJ blocks and 2000+ TJ/WJ blocks do not interchange without significant modifications. (1991 to 1995 YJ and 1997-1999 4.0L TJ Wrangler blocks will interchange in XJ/ZJ and visa-versa).
TJ/WJ 4.0L Engine blocks underwent clean sheet design changes effective in the 1999 WJ Grand and 2000 TJ Wrangler. These blocks are not interchangeable with XJ/ZJ engine blocks. The reason is motor mount bolt holes and belt driven accessory mounting bolt holes are in different locations, or not present at all, TJ/WJ vs. XJ/ZJ.
XJ: "Regular" (not Grand) Cherokees 84-01
ZJ: Grand Cherokee 93-98 (Gen1)
WJ: Grand Cherokee 99-04 (Gen2)
YJ: Wrangler 87-95 (Gen1)
TJ: Wrangler 97-06 (Gen2)
#4
Senior Member
Join Date: Jan 2012
Posts: 952
Likes: 0
Received 3 Likes
on
3 Posts
Year: 2004
Model: Grand Cherokee
Engine: 2000 4.0
While any thing is possible I would suggest something else. Plenty of used 2000-2004 engines are available that would make it "plug & play". What condition/miles is your current engine?
#6
Wasn't mentioned, but also late 99 xj and up had coil rail and not a distributor. If u use an older block, well head specifically, it won't have the bosses to bolt the coil rail down, but the head is a better head. I got an older head on my 2000. Had to build little tabs off the vc bolts to secure the coil rail. A buddy w a 2001 didn't secure his coil rail and had problems with tearing boots and what not on the coil rail from vibrations
Trending Topics
#9
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,875
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0

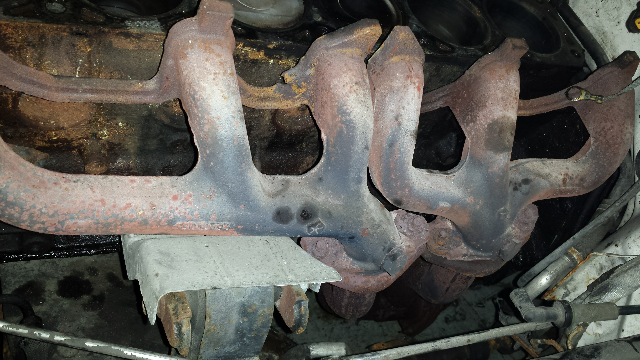

I don't think that's a 96.
#11
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,875
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
#13
Pull the head, inspect the block/Pistons and such ... If they check good swap the 96 head onto the 00 block. Run the 00 intake and 96 exhaust. Hang the coil pack off the VC studs using some home made brackets. Enjoy a slightly stronger motor.
I can show you pics of mine, been running like this since something in 2005.
I can show you pics of mine, been running like this since something in 2005.
