UPDATE

So i have found the ignition switch and the black female ignition switch connector but i can not find the blue female ignition switch connector anywhere and the auto store seems to have no clue what im talking about. Any help would be appreciated.



I dunno on this one either....def pm cruiser on the 85 to 88 parts he will most likely know



Honestly I hate the ignition switch. The cost to have a mechanic do it was well worth it compared to hunting down the parts and breaking my back laying in the floorboard.



I am unsure if the plug is the same for a 85...



You can go to the dealer for the other connecter.even if they don't know what it is they will pull up a parts diagram on screen and you can point out which one you need



If you r still having trouble locating the connector harness try looking at GM cars mainly Buicks the wiring in the renix Jeeps came from GM.



Here in post#36 (third photo), it shows using cheap crimp/blade connectors. The plastic is gone/removed and they are soldered. The shrink wrap is slid up the wire before soldering, then back after to heat and shrink. http://www.smokstak.com/forum/showth...=102960&page=2



So the problem is solved i replaced the ignition switch and with some homemade connectors it all works again. Thank you everyone for your input.



great I am glad the problem is Fixed enjoy your Renix Jeep



And the winner is.....Taro2413!



A cool trick to remove the plastic from the cheap crimp connectors. Hold the PLASTIC part in your pliers, and put the metal to the heat. Once the metal is hot, it slips right out.



Nice glad to hear you got it fixed!

Another thing you might want to look at before it causes you problems like it did me is replace all your old plastic loom with some good quality heat resistant loom.

I learned the hard way up to crown king burnt up a section of harness that had three fuel sensors in it on trail had to floor it whole way home to keep from flooding. Just a suggestion.

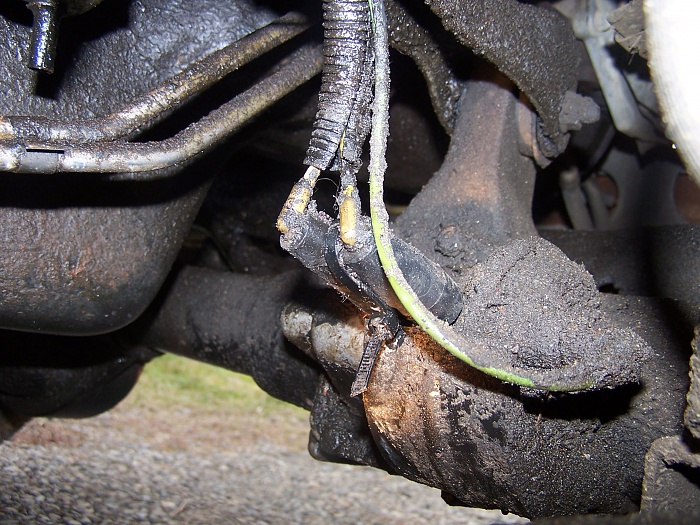

haha will do. however iv run into new problems took her out for a run today and it wont shift out of four wheel drive my buddy said i was dragging a tube or wire i cant see where it came from at the moment as the whole undercarriage is covered in dirt and ice.



You might have vacuum lines knocked off your "Vac Disco". It's on the rear of the axle tube just inside the right front wheel. The pair with the rubber connector slips of easy on mine...till I zip-tied it, (loosely)



If its your axle vacuum disco there are a couple things you can do to not have to worry about that stupid thing. Some cost money some are free.
I went the free route and just locked my front axle in full time. So the pass side axle is 100% engaged at all times then when i shift into 4 wd i know for certain i am in 4wd. and the vac lines will not fall off or rip apart on trail which is usually what happens when you lose 4wd on these disco equipped jeeps.
If thats what it is you can search in the xj write up section i believe theres a writeup on it there.
