electrical issues
#1
Senior Member
Thread Starter
Join Date: Aug 2010
Location: Tempe, AZ
Posts: 692
Likes: 0
Received 1 Like
on
1 Post
Year: 1990
Model: Cherokee
Engine: l6 242
electrical issues
so my parking lamp fuse keeps blowing on my 90 and i've checked all the wiring.
sometimes the rear pax park lamp works, sometimes it doesn't. gauge lights turn off when they go out too.
all the wiring to the lights is fine.
could the problem be within the light switch itself(which is new)?
sometimes the rear pax park lamp works, sometimes it doesn't. gauge lights turn off when they go out too.
all the wiring to the lights is fine.
could the problem be within the light switch itself(which is new)?
#4
Senior Member
Thread Starter
Join Date: Aug 2010
Location: Tempe, AZ
Posts: 692
Likes: 0
Received 1 Like
on
1 Post
Year: 1990
Model: Cherokee
Engine: l6 242
went back and checked everything. its all solid and clean.
now going through haynes repair manual. on exterior lighting systems..

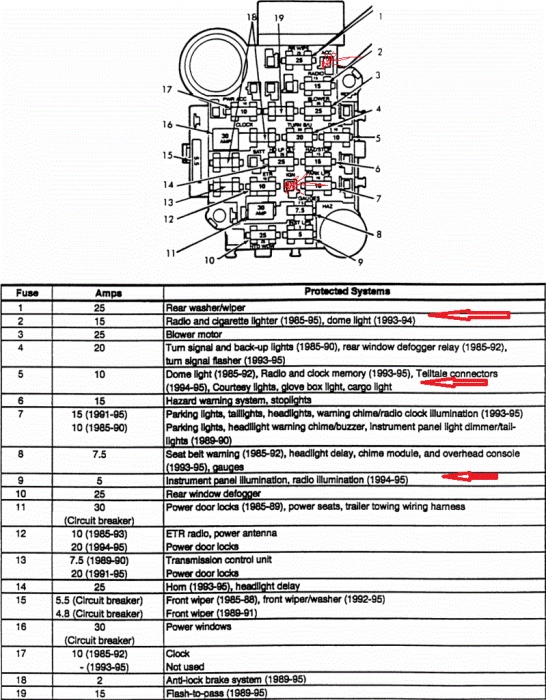

the fuse block in the jeep shows 10a but the repair manual shows 20a...
kind of want to go by the book but dont want to melt wires.
any advice?!
now going through haynes repair manual. on exterior lighting systems..
the fuse block in the jeep shows 10a but the repair manual shows 20a...
kind of want to go by the book but dont want to melt wires.
any advice?!
#5
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,872
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
You don't have a Mickey Mouse trailer wiring harness on it , do you?
#7
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,872
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
I mean many times there are shorted wires in the trailer receptacles, especially if some PO jury-rigged one on there. This does not mean that your factory harness/plug is exempt from having problems. If it were me, I'd poke my noggin up under there and have a gander, maybe even taking the receptacle apart......
Trending Topics
#9
CF Veteran
Join Date: Aug 2010
Location: Williamsport, Pa
Posts: 1,168
Likes: 0
Received 3 Likes
on
3 Posts
Year: 1997
Model: Cherokee
Engine: 4.0L
If your dash lights and interior lights go out too then your problem could be anywhere inside or out. You didn't by chance put in an aftermarket radio, did you? Sometimes people mistakenly use a light wire in the radio harness to ground their radio as it will test as a ground until you turn the lights on.
When does the fues usually blow? As soon as you turn your lights on, when you go over a bump in the road, or something like that?
When does the fues usually blow? As soon as you turn your lights on, when you go over a bump in the road, or something like that?
#10
Senior Member
Thread Starter
Join Date: Aug 2010
Location: Tempe, AZ
Posts: 692
Likes: 0
Received 1 Like
on
1 Post
Year: 1990
Model: Cherokee
Engine: l6 242
the radio was put in over a year ago by a shop so i dont know what they used to ground it. since you said that, my radio has been acting up(turning off and on randomly while waiting for a redlight and such) but yeah its aftermarket.
the fuse blows randomly. im thinking after medium-big bumps. like hitting sewer caps in the road.
the fuse blows randomly. im thinking after medium-big bumps. like hitting sewer caps in the road.
#15
Senior Member
Thread Starter
Join Date: Aug 2010
Location: Tempe, AZ
Posts: 692
Likes: 0
Received 1 Like
on
1 Post
Year: 1990
Model: Cherokee
Engine: l6 242
tag light doesnt work once fuse is blown. checked the wiring for it though.
all the fuses are correct amps.
electrical problems are so frustrating
all the fuses are correct amps.
electrical problems are so frustrating
