electric fuel pump question
#1
Junior Member
Thread Starter
Join Date: Dec 2010
Location: Coeur D'Alene, Idaho
Posts: 57
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1985
Model: Cherokee
Engine: 2.5 lt
electric fuel pump question
My 85' XJ has the 2.5lt. 4 cyl. engine. Every time I want to start it, I have to pump gas peddle atleast20-25 times before it will begin to start.
Would changing to a electric fuel pump end this anoyance or do I have another problem I need to address?
It has a stock single bbl motorcraft carb on it.
Would changing to a electric fuel pump end this anoyance or do I have another problem I need to address?
It has a stock single bbl motorcraft carb on it.
#2
CF Veteran
Join Date: Aug 2011
Location: Nor-Cal Coast
Posts: 10,489
Likes: 0
Received 17 Likes
on
17 Posts
Year: 90,84
Model: Cherokee
Engine: 4.0,2.5
Two things. One fuel delivering circuit in the carb is the accelerator pump. Really it's just like a squirt gun. Idling, fuel is drawn in through the idle jet via manifold vacuum. Running, with air speed, fuel is drawn in through the main jet via ventury vacuum.
So if you are idling and crack open the throttle, suddenly you have neither manifold vacuum or ventury vacuum. The main purpose of the accelerator pump is to provide a squirt right there to fill in, until there is air-speeed/ventury vacuum.
Starting, you can also use that to prime it to start. First crank it for 5 seconds. Then look down in the carb and work the throttle and see if you see it squirting. If not check that both the screws on-top around the bowl, as well as...(some lower stuff IIRC), are tight. (the pump might be working, but all needs to be tight to get that fuel to squirt out where it should.) The accelerator pump is about the first thing to wear out in a carb, you might even still be able to buy one separate, (instead of a whole kit). It's just a cylindrical piston, sort of like a bicycle pump.
The other thing is the choke. It might start OK even with a weak accelerator pump if the choke is doing it's thing.
So if you are idling and crack open the throttle, suddenly you have neither manifold vacuum or ventury vacuum. The main purpose of the accelerator pump is to provide a squirt right there to fill in, until there is air-speeed/ventury vacuum.
Starting, you can also use that to prime it to start. First crank it for 5 seconds. Then look down in the carb and work the throttle and see if you see it squirting. If not check that both the screws on-top around the bowl, as well as...(some lower stuff IIRC), are tight. (the pump might be working, but all needs to be tight to get that fuel to squirt out where it should.) The accelerator pump is about the first thing to wear out in a carb, you might even still be able to buy one separate, (instead of a whole kit). It's just a cylindrical piston, sort of like a bicycle pump.
The other thing is the choke. It might start OK even with a weak accelerator pump if the choke is doing it's thing.
Last edited by DFlintstone; 05-17-2014 at 01:27 AM. Reason: Idling,
#3
Junior Member
Thread Starter
Join Date: Dec 2010
Location: Coeur D'Alene, Idaho
Posts: 57
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1985
Model: Cherokee
Engine: 2.5 lt
Thanks DFlinstone. So I guess if the pump is wore out then that's why I have to pump so many times to get to start. Also I don't have a choke on it At present. Part of the electric choke is missing and I can't seem to source a replacement. I was thinking putting a manual one on would help?
#5
Member
Join Date: Mar 2013
Location: Nor Cal
Posts: 197
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1994
Model: Grand Cherokee
Engine: 4.0
My guess is the fuel is draining back in to the tank and it's taking the fuel x amount of time to get back up in to the carb. Maybe try installing a residual pressure valve or an inline check valve in the fuel line to keep it from draining back.
Miles
Miles
Trending Topics
#9
CF Veteran
Join Date: Aug 2011
Location: Nor-Cal Coast
Posts: 10,489
Likes: 0
Received 17 Likes
on
17 Posts
Year: 90,84
Model: Cherokee
Engine: 4.0,2.5
Howdy Chuck! IIRC the needle valve/fuel supply is high on the bowl. I trust you to correct me if I'm wrong.
Now the check ball on the accelerator pump....but that shouldn't drain it I'm thinking. Waz thinking even if it boiled dry after parking, the acc. pump should squirt after cranking 5 seconds.
I deal with the same cridder, with my choke wired open. (My 84). I keep a dish soap bottle there to prime it to start. It's non-opped, I don't start it often. I always put the air cleaner back on after priming it. (Fewer fires)
Now the check ball on the accelerator pump....but that shouldn't drain it I'm thinking. Waz thinking even if it boiled dry after parking, the acc. pump should squirt after cranking 5 seconds.
I deal with the same cridder, with my choke wired open. (My 84). I keep a dish soap bottle there to prime it to start. It's non-opped, I don't start it often. I always put the air cleaner back on after priming it. (Fewer fires)
#10
Junior Member
Thread Starter
Join Date: Dec 2010
Location: Coeur D'Alene, Idaho
Posts: 57
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1985
Model: Cherokee
Engine: 2.5 lt
Thanks everyone!
I will get a manual choke today and install it.
Kingfisher - no it starts right up when warm no problem.
I will get a manual choke today and install it.
Kingfisher - no it starts right up when warm no problem.
#11
CF Veteran
Join Date: Mar 2010
Location: Broward County Fl.
Posts: 47,923
Likes: 0
Received 22 Likes
on
22 Posts
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
Carb parts
Ive gotten hard to find parts here .....if ya wanna upgrade search webber carbs....http://www.carbkitsource.com/carbs/c...eep/index.html
#12
CF Veteran
Join Date: Apr 2012
Location: Wisconsin
Posts: 5,302
Likes: 0
Received 19 Likes
on
16 Posts
Model: Cherokee
He's OK once the engine is warm so I'm putting my monopoly money on no choke causing it.
#13
Junior Member
Thread Starter
Join Date: Dec 2010
Location: Coeur D'Alene, Idaho
Posts: 57
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1985
Model: Cherokee
Engine: 2.5 lt
I found the problem. I am missing the arm that opens and closes to choke! any one have any ideas on how to find a replacement for it?
#14
CF Veteran
Join Date: Aug 2011
Location: Nor-Cal Coast
Posts: 10,489
Likes: 0
Received 17 Likes
on
17 Posts
Year: 90,84
Model: Cherokee
Engine: 4.0,2.5

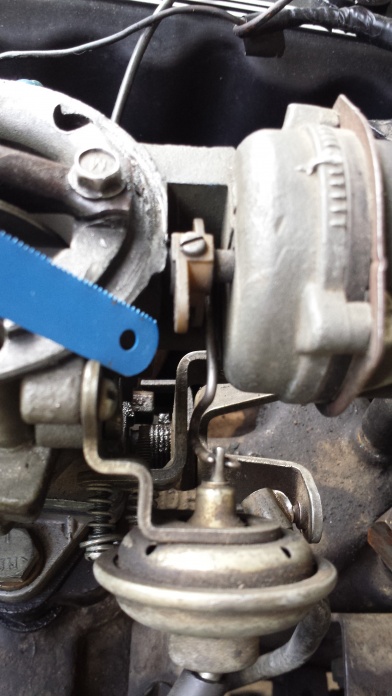

I think it's about 3" tall, with about a 7/8" bend at the top. I'll keep my eyes open around here, I might have a carb that was in a fire. I prefer a manual choke anyway myself, I'm not sure if that would pass smog or not. Did you check if your accelerator pump is working?
EDIT. Nope, I don't have one. Just a melted alternator.
EDIT. Nope, I don't have one. Just a melted alternator.
Last edited by DFlintstone; 05-18-2014 at 03:39 PM.
#15
Junior Member
Thread Starter
Join Date: Dec 2010
Location: Coeur D'Alene, Idaho
Posts: 57
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1985
Model: Cherokee
Engine: 2.5 lt
accelerator pump works good. I crossed the starter relay and closed the choke and it fired right up!
I wish I would have noticed the arm missing before.
I am guessing installing a manual choke would be easier than finding the missing part for my carb.
I wish I would have noticed the arm missing before.
I am guessing installing a manual choke would be easier than finding the missing part for my carb.
